Stabilus 3B-0624KV Hatch Lift SupportOE Quality 60-Day Returns
Part #: 3B-0624KV

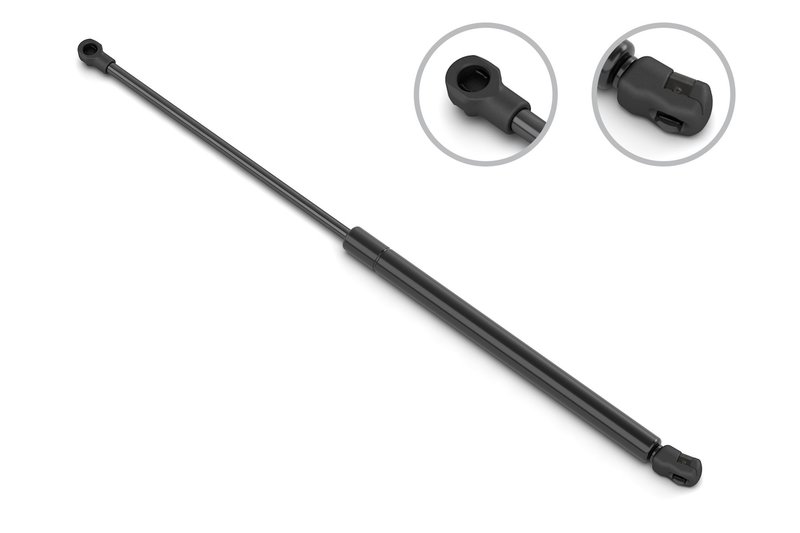

Stabilus 3B-0624KV Hatch Lift Support

6 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$25.66Free Shipping
Free ShippingNo Cost to Continental U.S.
Free Returns*Wrong fit? No cost
60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
In Stock · Ready To Ship Most orders ship same-day if ordered before 1pm CST.
OE Direct Replacement — Bolt-on fit, no modifications needed
Fitment: Volvo, V40
Easy Returns — Return within 60 days for a full refund
Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? See all Hatch Lift Support options

Stabilus 3B-0624KV Gas Spring for Volvo V40

Stabilus 3B-0624KV is a gas spring built for controlled lift support on the 1999-2004 Volvo V40. With a 320 N (72 lb) force rating, 602 mm extended length, and 373 mm compressed length, it is specified for applications that need smooth opening, steady holding, and controlled closing.

Key Features

  • Fits 1999-2004 Volvo V40
  • Stabilus part number 3B-0624KV
  • 320 N / 72 lb force rating
  • 602 mm extended length and 373 mm compressed length
  • 8 mm rod diameter and 18 mm tube diameter
  • Plastic socket rod and tube connections
  • 10 mm end attachment diameter at both ends

Product Details

This Stabilus gas spring is engineered to match the dimensional and force requirements of the listed Volvo V40 application. The 8 mm rod, 18 mm tube, and plastic socket connections support a direct replacement style installation where the original lift support uses the same attachment format. If you are searching for a Volvo V40 lift support, hatch support, or rear hatch gas strut by part number 3B-0624KV, this unit provides the specified length and force profile for the application.

This part cross-references Tuff Support 611063 and TYC 611060 for the same application.

Common Issues This Part Can Address

  • Rear hatch or liftgate that will not stay open
  • Weak or slow-opening lift support
  • Hatch that drops too quickly when raised
  • Uneven or inconsistent support during opening and closing
  • Original gas spring wear from age and repeated use

Installation Notes and Tips

Verify the compressed length, extended length, rod diameter, and socket style against the original support before installation. Confirm that the 10 mm end attachment diameter and plastic socket connections match the vehicle’s mounting points on the 1999-2004 Volvo V40. Replace gas springs in a controlled manner so the hatch or panel remains supported during service.

Quality Assurance

Stabilus is a recognized supplier of gas springs and lift supports used in automotive applications. Part number 3B-0624KV is built to the listed dimensional and force specifications for the Volvo V40 fitment shown above.

BrandStabilus
Part Number3B-0624KV
Y
Y
Body0.709
Compressed Length14.685
Compressed Length373
Extended Length23.701
Extended Length602
Force (N)320
Force Lbs72
Hardware KitNO
Rod ConnectionPLASTIC SOCKET
Rod Dia (IN)0.315
Rod Diameter8
Rod End Attachment Dia (IN)0.394
Rod End Attachment Dia (MM)10
Shaft0.315
Shaft ConnectionPLASTIC SOCKET
Tube ConnectionPLASTIC SOCKET
Tube Dia (IN)0.709
Tube Diameter18
Tube End Attach Dia (IN)0.394
Tube End Attach Dia (mm)10

This part fits 6 vehicles. Search below:

YearMakeModelPositionNotes
2004VolvoV40N/A
2003VolvoV40N/A
2002VolvoV40N/A
2001VolvoV40N/A
2000VolvoV40N/A
1999VolvoV40N/A

* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

This part directly replaces or is cross-referenced with the following part numbers:

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
