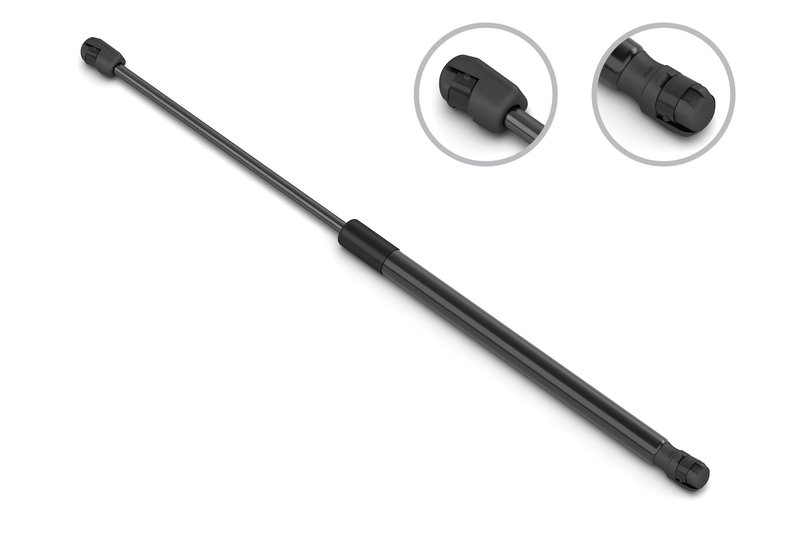

Stabilus 3B-066004 Hatch Lift Support
| Brand | Stabilus 3B-066004 |
|---|---|
| Y | |
| Y | |
| Body | 0.866 |
| Compressed Length | 16.693 |
| Compressed Length | 424 |
| Extended Length | 27.618 |
| Extended Length | 701.5 |
| Force (N) | 505 |
| Force Lbs | 114 |
| Hardware Kit | NO |
| Rod Connection | PLASTIC SOCKET |
| Rod Dia (IN) | 0.315 |
| Rod Diameter | 8 |
| Rod End Attachment Dia (IN) | 0.394 |
| Rod End Attachment Dia (MM) | 10 |
| Shaft | 0.315 |
| Shaft Connection | PLASTIC SOCKET |
| Tube Connection | PLASTIC SOCKET |
| Tube Dia (IN) | 0.866 |
| Tube Diameter | 22 |
| Tube End Attach Dia (IN) | 0.394 |
| Tube End Attach Dia (mm) | 10 |
| Fits | Nissan · 7 vehicles |
Gas-charged support. Delivers 114 lb of force for smooth, controlled movement.
Plastic socket ends. Provides secure connections at both attachment points.
Stabilus engineering brings dependable motion control.
Cross-references AMS Automotive 6780, Stabilus 3B-066004 and 066004 for the same application. See all 18.
OE-Style Lift Support for Nissan Quest
This Stabilus gas spring is built for the 2011-2017 Nissan Quest without power liftgate applications. It uses plastic socket connections and OE-style dimensions to support controlled liftgate movement and consistent hold-open performance.
Key Features
- Brand: Stabilus
- Part number: 3B-066004
- Force rating: 505 N / 114 lb
- Extended length: 27.618 in (701.5 mm)
- Compressed length: 16.693 in (424 mm)
- Rod diameter: 0.315 in (8 mm)
- Tube diameter: 0.866 in (22 mm)
- Plastic socket rod and tube connections
- Cross-reference example: AMS Automotive 6780
Detailed Description
Stabilus 3B-066004 is a lift support engineered for rear liftgate service on the Nissan Quest. The measured body, rod, and tube dimensions help match the original support geometry, while the 505 N force rating is specified for controlled opening and holding action on the liftgate. This part cross-references AMS Automotive 6780 for the same application.
Compatible With 2011-2017 Nissan Quest, w/o Power Liftgate. Use this Stabilus gas strut when replacing a worn lift support on a Nissan Quest that no longer stays open, drops too quickly, or feels uneven during liftgate operation. The 3B-066004 part number is also referenced in OE-style interchange listings for this application.
What It Is Used For
- Restoring liftgate support when the hatch will not stay open
- Replacing a weak or leaking gas strut on the rear liftgate
- Correcting slow, heavy, or inconsistent liftgate movement
- Reducing strain on hinges and latch components from a failing support
- Addressing liftgate drop on 2011-2017 Nissan Quest models without power liftgate
Installation Notes and Tips
Verify the existing support length, end fittings, and force rating before installation. This unit uses plastic socket connections at both ends, so confirm the mounting studs and socket style match the vehicle. Replace supports in pairs only when the opposite side is also worn, and support the liftgate securely before removing the old strut.
Quality Assurance
Stabilus is a recognized OE supplier for gas springs and lift supports, and this part is built to match the listed application and dimensions for direct replacement service on the Nissan Quest.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2017 | Nissan | Quest | N/A | w/o Power Liftgate |
| 2016 | Nissan | Quest | N/A | w/o Power Liftgate |
| 2015 | Nissan | Quest | N/A | w/o Power Liftgate |
| 2014 | Nissan | Quest | N/A | w/o Power Liftgate |
| 2013 | Nissan | Quest | N/A | w/o Power Liftgate |
| 2012 | Nissan | Quest | N/A | w/o Power Liftgate |
| 2011 | Nissan | Quest | N/A | w/o Power Liftgate |
