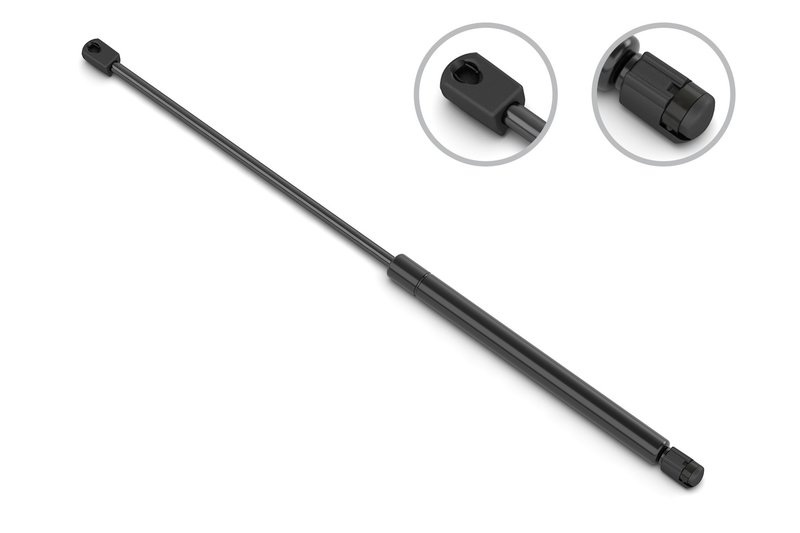

Stabilus 3B-137430 Hood Lift Support
| Brand | Stabilus 3B-137430 |
|---|---|
| Y | |
| Y | |
| Body | 0.709 |
| Compressed Length | 15.433 |
| Compressed Length | 392 |
| Extended Length | 27.047 |
| Extended Length | 687 |
| Force (N) | 220 |
| Force Lbs | 49 |
| Hardware Kit | NO |
| Rod Connection | PLASTIC SOCKET |
| Rod Dia (IN) | 0.315 |
| Rod Diameter | 8 |
| Rod End Attachment Dia (IN) | 0.315 |
| Rod End Attachment Dia (MM) | 8 |
| Shaft | 0.315 |
| Shaft Connection | PLASTIC SOCKET |
| Tube Connection | PLASTIC SOCKET |
| Tube Dia (IN) | 0.709 |
| Tube Diameter | 18 |
| Tube End Attach Dia (IN) | 0.394 |
| Tube End Attach Dia (mm) | 10 |
| Fits | Cadillac · 7 vehicles |
OE direct replacement. Restores smooth hood support with a 49 lb force rating.
Plastic socket connections. Simplify attachment with a secure, straightforward design.
Stabilus engineering. Built with a 27.047 in extended length for proper lift support.
Cross-references AMS Automotive 6168, Dorman - Conduct-Tite 86168 and Stabilus 3B-137430 for the same application. See all 19.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Hood Lift Support for Cadillac STS
This Stabilus hood lift support is built for the 2005-2011 Cadillac STS and is identified by part number 3B-137430. It uses a 220 N (49 lb) gas force and plastic socket connections to support smooth hood opening and controlled closing.
- Fits 2005-2011 Cadillac STS, hood position
- Stabilus part number 3B-137430
- 220 N / 49 lb lift force
- Extended length: 27.047 in (687 mm)
- Compressed length: 15.433 in (392 mm)
- Rod diameter: 0.315 in (8 mm)
- Tube diameter: 0.709 in (18 mm)
- Plastic socket rod and tube connections
Product Details
As a hood lift support, this Stabilus unit helps hold the hood in the open position and provides controlled movement during service access. The measured dimensions, including the 27.047-inch extended length and 15.433-inch compressed length, are important for matching the original support geometry on the Cadillac STS. If you are searching for a hood strut for a 2005 Cadillac STS, 2006 Cadillac STS, or 2011 Cadillac STS, part number 3B-137430 is the direct reference to use.
This part cross-references Dorman - Conduct-Tite 86168 for the same application.
What It Helps Solve
- Hood that will not stay open
- Weak or slow hood lift action
- Hood dropping during inspection or maintenance
- Uneven or inconsistent hood support
- Replacement for worn gas-charged hood struts
Installation Notes
Verify the rod and tube socket style, compressed length, and extended length before installation. Compare the force rating and end fittings to the original support on the vehicle to confirm proper hood alignment and opening effort. For best results, replace a worn support when the hood no longer holds position or requires extra effort to open.
Quality Assurance
Stabilus is a recognized OE supplier of gas springs and lift supports, and this hood lift support is built to match the specified application and dimensions for the Cadillac STS platform.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2011 | Cadillac | STS | N/A | — |
| 2010 | Cadillac | STS | N/A | — |
| 2009 | Cadillac | STS | N/A | — |
| 2008 | Cadillac | STS | N/A | — |
| 2007 | Cadillac | STS | N/A | — |
| 2006 | Cadillac | STS | N/A | — |
| 2005 | Cadillac | STS | N/A | — |
