Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.
Stabilus 3B-186221
| Brand | Stabilus 3B-186221 |
|---|---|
| 0.394 | Y |
| Compressed Length | 16.87 |
| Compressed Length | 428.5 |
| Rod Diameter | 10 |
| Upper Inside Diameter | Y |
| Tube Diameter | 22 |
| Extended Length | 27.362 |
| Extended Length | 695 |
| Agricultural Equipment | N |
| Body | 0.866 |
| Engine Specific | N |
| Force (N) | 360 |
| Force Lbs | 81 |
| Hardware Kit | 554283 |
| Heavy Truck | N |
| High Performance | N |
| IndustrialOff Highway | N |
| Marine | N |
| Medium Truck | N |
| MotorCycleRV | N |
| NonVehicle Specific | N |
| Personal Watercraft | N |
| Rod Connection | Plastic socket |
| Rod Dia (IN) | 0.394 |
| Rod End Attachment Dia (IN) | 0.394 |
| Rod End Attachment Dia (MM) | 10 |
| Shaft | 0.394 |
| Shaft Connection | Plastic socket |
| Small Engine | N |
| Snowmobile | N |
| Fits | Toyota · 4 vehicles |
OE-style replacement. Built to match the listed force and dimensional specifications.
Plastic socket ends. Connection style supports secure attachment in the original application.
Stabilus engineering. OE supplier heritage in gas spring and lift support applications.
Cross-references AMS Automotive 4753, Focus Auto Parts 84753 and PERFECTION 900108 for the same application. See all 15.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Overview

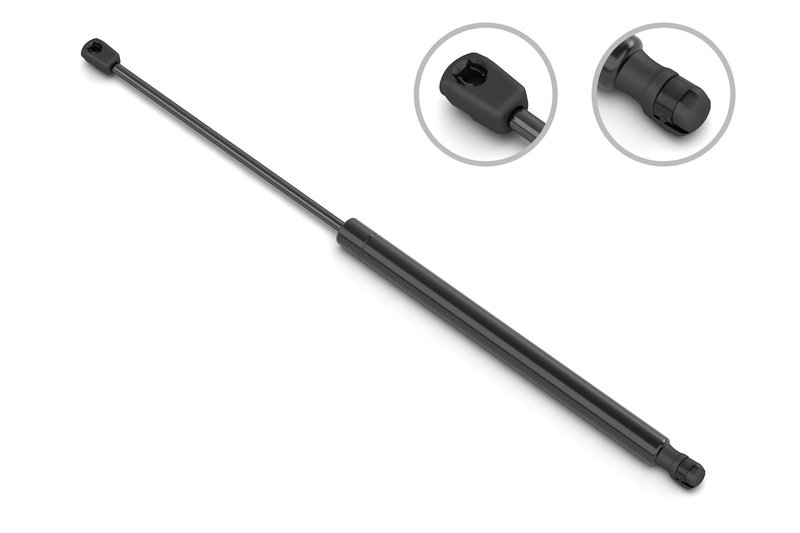

Stabilus 3B-186221 is a gas spring assembly for select Toyota Camry applications. It is built with a 360 N force rating, plastic socket connections, and matched compressed and extended lengths for the specified fitment.
Compatible with 1983-1986 Toyota Camry applications, this Stabilus gas spring is identified by part number 3B-186221. It is a direct replacement style component for restoring controlled movement and support in the original application.
Key Features
- 360 N force rating for controlled lift and support
- Plastic socket rod and tube connections
- 16.87 in compressed length and 27.362 in extended length
- 10 mm rod end attachment diameter
- Stabilus part number 3B-186221
Detailed Description
This Stabilus gas spring is engineered around the listed dimensions and connection style to match the original application requirements. The 10 mm rod end attachment diameter, 22 mm tube diameter, and plastic socket ends help ensure proper alignment and secure attachment in the specified Toyota Camry fitment. If you are replacing a worn or weak support strut, 3B-186221 provides the force and geometry needed for consistent operation.
Fits 1983-1984 Toyota Camry, N/A. Fits 1985-1986 Toyota Camry, N/A. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
What It Is Used For
- Replacing a weak or failed gas spring
- Restoring controlled opening and closing movement
- Reducing sudden drop or unsupported movement
- Correcting fitment issues caused by worn mounting ends
Installation Notes and Quality
Verify the compressed length, extended length, force rating, and socket connection style before installation. Confirm the vehicle application and mounting points against the original part to ensure proper fit. Hardware kit information is listed in the product data for the specified application.
Stabilus is a recognized OE supplier in gas spring and lift support applications, and part number 3B-186221 follows the listed dimensional and force specifications for the intended fitment.
| Year | Make | Model | Notes |
|---|---|---|---|
| 1986 | Toyota | Camry | Hardware kit included. |
| 1985 | Toyota | Camry | Hardware kit included. |
| 1984 | Toyota | Camry | — |
| 1983 | Toyota | Camry | — |
| No rows match your filter. | |||
