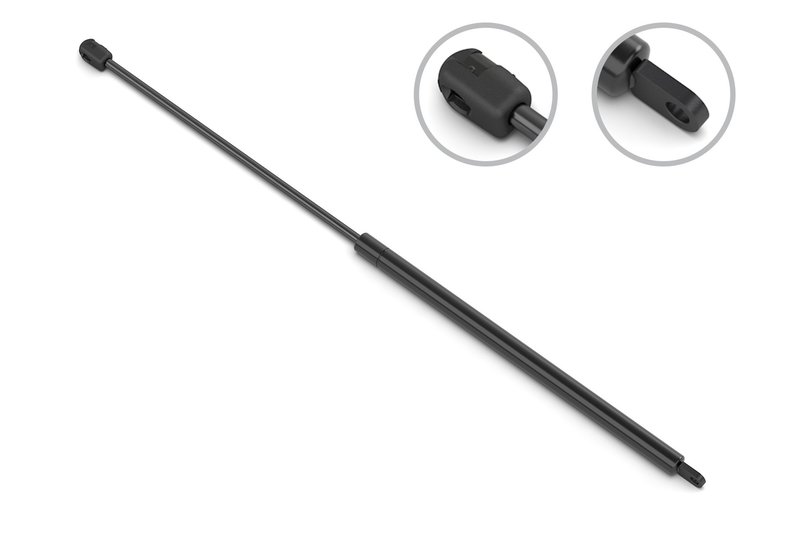

Stabilus 3B-200800 Hatch Lift Support
Stabilus Gas Spring for Mazda RX-7
The Stabilus 3B-200800 is a gas spring built for specific Mazda hatch and liftgate service needs. It delivers 216 N of force with a 27.657 in extended length and 17.028 in compressed length for controlled opening and closing action.
Compatible with 1979-1985 Mazda RX-7, w/o Wiper, this Stabilus gas spring is a direct-fit replacement for the listed application. The 3B-200800 uses a plastic socket rod connection and a metal blade tube connection for the specified mounting points.
Key Features
- Stabilus part number 3B-200800
- 216 N / 49 lb force rating
- Extended length: 27.657 in (702.5 mm)
- Compressed length: 17.028 in (432.5 mm)
- Rod diameter: 0.315 in (8 mm)
- Tube diameter: 0.709 in (18 mm)
- Rod connection: plastic socket
- Tube connection: metal blade
- Cross-reference: AMS Automotive 4709, 4711
Detailed Description
Stabilus 3B-200800 is an OE-style gas spring engineered for the 1979-1985 Mazda RX-7, w/o Wiper. Its measured body dimensions, rod size, and end fittings are matched to the listed vehicle application, helping restore smooth lift support and consistent panel movement. If you are searching for a Mazda RX-7 lift support, hatch strut, or rear support gas spring by part number 3B-200800, this unit matches the published fitment and specifications.
What It Helps Address
- Weak or failing hatch support on a Mazda RX-7
- Slow or uneven liftgate movement
- Hatch that will not stay open properly
- Loss of controlled closing action
- Noise or instability from worn support hardware
Installation Notes and Tips
Verify the vehicle is a 1979-1985 Mazda RX-7 without wiper equipment before ordering. Compare the compressed and extended lengths, rod diameter, and connection style to the original support before installation. Replace only with the correct application-specific gas spring to maintain proper lift force and travel.
Quality Assurance
Stabilus is a recognized OE supplier of gas springs and lift supports, and the 3B-200800 follows the published dimensional and force specifications for the listed Mazda RX-7 application.
| Brand | Stabilus |
|---|---|
| Part Number | 3B-200800 |
| Y | |
| Y | |
| Body | 0.709 |
| Compressed Length | 17.028 |
| Compressed Length | 432.5 |
| Extended Length | 27.657 |
| Extended Length | 702.5 |
| Force (N) | 216 |
| Force Lbs | 49 |
| Hardware Kit | 5568 |
| Rod Connection | PLASTIC SOCKET |
| Rod Dia (IN) | 0.315 |
| Rod Diameter | 8 |
| Rod End Attachment Dia (IN) | 0.394 |
| Rod End Attachment Dia (MM) | 10 |
| Shaft | 0.315 |
| Shaft Connection | PLASTIC SOCKET |
| Tube Connection | METAL BLADE |
| Tube Dia (IN) | 0.709 |
| Tube Diameter | 18 |
| Tube End Attach Dia (IN) | 0.402 |
| Tube End Attach Dia (mm) | 10.2 |
This part fits 7 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 1985 | Mazda | RX-7 | N/A | w/o Wiper |
| 1984 | Mazda | RX-7 | N/A | w/o Wiper |
| 1983 | Mazda | RX-7 | N/A | w/o Wiper |
| 1982 | Mazda | RX-7 | N/A | w/o Wiper |
| 1981 | Mazda | RX-7 | N/A | w/o Wiper |
| 1980 | Mazda | RX-7 | N/A | w/o Wiper |
| 1979 | Mazda | RX-7 | N/A | w/o Wiper |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
