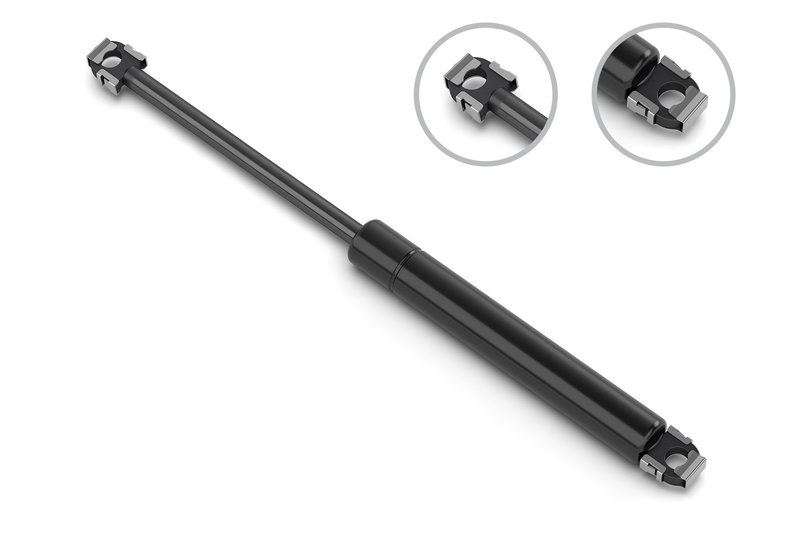

Stabilus 3B-231153 Hood Lift Support

Overview of Stabilus Hood Lift Support 3B-231153

The Stabilus Hood Lift Support part number 3B-231153 is designed specifically for Cadillac Eldorado and Seville models. This hood lift support provides reliable assistance in lifting and holding the hood securely open, ensuring safe and convenient engine access.

• Compatible with Cadillac Eldorado and Seville
• Compressed length: 14.823 inches (376.5 mm)
• Extended length: 23.937 inches (608 mm)
• Rod diameter: 8 mm (0.315 inches)
• Tube diameter: 22 mm
• Force: 339 Newtons (76 lbs)
• Rod connection: Metal blade with retaining clip
• Non-engine specific design

Technical Specifications and Features

This hood lift support features a compressed length of 14.823 inches (376.5 mm) and extends up to 23.937 inches (608 mm), providing ample range for smooth hood operation. The rod diameter measures 8 mm (0.315 inches), while the tube diameter is 22 mm, ensuring durability and strength. It delivers a force of 339 Newtons (76 lbs), sufficient to hold the hood firmly in place during maintenance or inspection. The rod end attachment uses a metal blade with a retaining clip for secure and stable connection.

Application and Compatibility

The Stabilus 3B-231153 hood lift support is compatible with Cadillac Eldorado and Seville vehicles. It is designed for body hood applications and is not engine-specific, making it a direct replacement for the original equipment on these models. This part is not intended for agricultural, heavy truck, marine, or off-highway use.

• Supports smooth hood lifting and holding
• Prevents hood from slamming shut
• Replaces worn or damaged hood lift supports
• Improves safety during engine access
• Maintains proper hood alignment and operation

Installation Notes and Tips

Installation of the Stabilus hood lift support 3B-231153 requires no additional hardware kit, as it uses the existing mounting points on the vehicle. Ensure the metal blade with retaining clip is securely attached to the hood and body brackets. It is recommended to check the condition of mounting brackets and clean any debris before installation. Proper installation will ensure optimal performance and longevity of the lift support.

Quality Assurance and Warranty

Stabilus is a recognized manufacturer of automotive gas springs and lift supports, known for consistent quality and reliability. While no specific warranty information is provided for this part, Stabilus products typically meet or exceed OEM standards. Using this hood lift support helps maintain the original equipment performance and safety of your Cadillac Eldorado or Seville.
