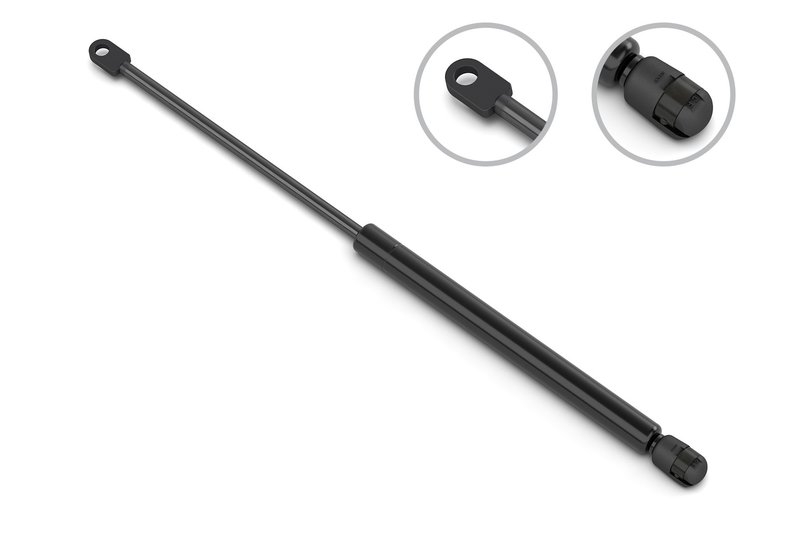

Stabilus 3B-247883 Hatch Lift Support

Overview of Stabilus Gas Spring 3B-247883 for Geo Firefly and Pontiac Metro

The Stabilus gas spring part number 3B-247883 is designed for reliable performance in Geo Firefly and Pontiac Metro vehicles. This gas spring offers precise dimensions and force specifications to ensure proper fit and function in your vehicle's application.

• Compressed length: 13.858 inches (352 mm)
• Extended length: 24.213 inches (615 mm)
• Rod diameter: 8 mm (0.315 inches)
• Tube diameter: 18 mm
• Force: 162 Newtons (36 lbs)
• Rod connection type: Metal blade
• Body diameter: 0.709 inches

Detailed Product Description

This Stabilus gas spring 3B-247883 is engineered with a metal blade rod connection and a rod diameter of 8 mm, providing a secure and durable attachment point. The gas spring compresses to 13.858 inches and extends to 24.213 inches, making it suitable for applications requiring this specific stroke length. With a force rating of 162 Newtons (36 lbs), it delivers consistent support and controlled motion. The tube diameter of 18 mm and body diameter of 0.709 inches contribute to the overall strength and stability of the gas spring.

Compatible Vehicles and Applications

This gas spring is compatible with the following vehicles:

• Geo Firefly
• Pontiac Metro

It is not designed for agricultural equipment, heavy trucks, motorcycles, marine, or industrial off-highway use. This part is specifically suited for automotive applications requiring the specified dimensions and force.

Common Uses and Problem Solving

• Supports hood or trunk lift mechanisms in Geo Firefly and Pontiac Metro
• Replaces worn or weak gas springs causing difficulty in opening or closing
• Restores smooth and controlled motion to vehicle panels
• Prevents sudden drops or slamming of supported components
• Maintains proper tension and positioning of lift supports

Installation Notes and Tips

• Verify the compressed and extended lengths match your vehicle’s requirements
• Ensure the metal blade rod connection aligns with existing mounting points
• Use appropriate tools to avoid damage to the gas spring during installation
• Check for proper operation after installation by slowly opening and closing the supported panel
• Do not attempt to disassemble the gas spring as it is a sealed unit

Quality Assurance and Warranty

Stabilus gas springs are manufactured to meet strict quality standards for durability and performance. While specific warranty details for part number 3B-247883 are not provided here, Stabilus typically offers warranties covering manufacturing defects. It is recommended to consult the product documentation or supplier for exact warranty terms.
