Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

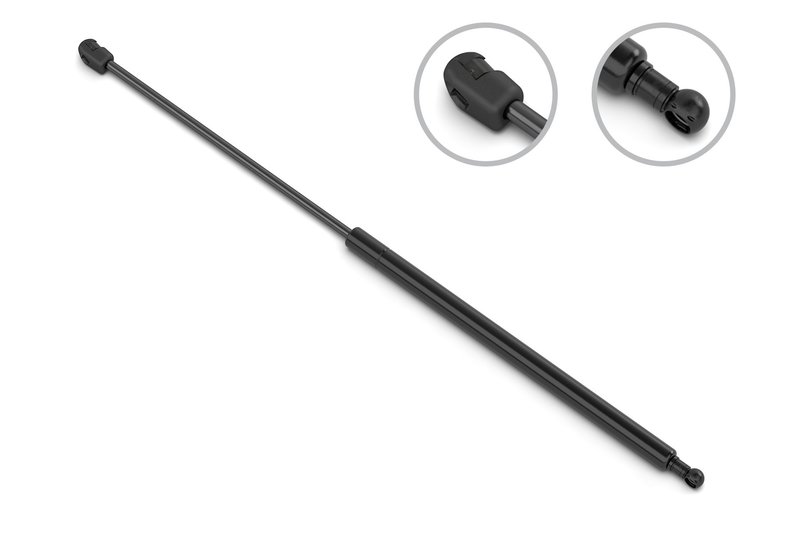

Stabilus 3B-253106 Hood Lift Support
| Brand | Stabilus 3B-253106 |
|---|---|
| Y | |
| Y | |
| Body | 0.709 |
| Compressed Length | 16.142 |
| Compressed Length | 410 |
| Extended Length | 25.276 |
| Extended Length | 642 |
| Force (N) | 260 |
| Force Lbs | 58 |
| Hardware Kit | NO |
| Rod Connection | PLASTIC SOCKET |
| Rod Dia (IN) | 0.315 |
| Rod Diameter | 8 |
| Rod End Attachment Dia (IN) | 0.394 |
| Rod End Attachment Dia (MM) | 10 |
| Shaft | 0.315 |
| Shaft Connection | PLASTIC SOCKET |
| Tube Connection | PLASTIC SOCKET |
| Tube Dia (IN) | 0.709 |
| Tube Diameter | 18 |
| Tube End Attach Dia (IN) | 0.315 |
| Tube End Attach Dia (mm) | 8 |
| Fits | Buick · 5 vehicles |
OE-style replacement. Restores smooth hood support with a 58 lb gas spring.
Plastic socket ends. Simple attachment points help make installation straightforward.
Stabilus engineering delivers consistent lift and controlled motion.
Cross-references AMS Automotive 6164, Dorman - Conduct-Tite 86164 and Stabilus 3B-253106 for the same application. See all 14.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Hood Lift Support for Buick Enclave
This Stabilus hood lift support is built for the 2008-2012 Buick Enclave and is identified by part number 3B-253106. It provides controlled hood movement with OE-style dimensions and a 58 lb gas force rating for consistent hood support.
Key Features
- Brand: Stabilus
- Part number: 3B-253106
- Fits 2008-2012 Buick Enclave
- Hood lift support for body/hood applications
- Force rating: 260 N / 58 lb
- Extended length: 25.276 in (642 mm)
- Compressed length: 16.142 in (410 mm)
- Rod diameter: 0.315 in (8 mm)
- Tube diameter: 0.709 in (18 mm)
- Plastic socket rod and tube connections
Detailed Description
Stabilus 3B-253106 is a hood lift support engineered for the Buick Enclave hood application across the 2008, 2009, 2010, 2011, and 2012 model years. The support measures 25.276 inches extended and 16.142 inches compressed, with plastic socket connections at both ends for a direct-fit style replacement. Its 260 N force rating helps hold the hood in the open position with controlled lift and lowering.
This part cross-references Dorman - Conduct-Tite 86164 for the same application. If you are searching for a hood strut for 2008-2012 Buick Enclave or a Stabilus 3B-253106 replacement hood support, this unit matches the listed vehicle fitment and dimensional specifications.
What It Helps Address
- Weak or failing hood support that no longer holds the hood open
- Hood drop or slow lift during service access
- Uneven hood movement caused by worn gas struts
- Need for a replacement hood lift support on a 2008-2012 Buick Enclave
- Noise or inconsistent operation from an aging hood strut
Installation Notes and Tips
Verify the existing support’s compressed length, extended length, rod diameter, and end connection style before installation. This Stabilus hood lift support uses plastic socket attachments, so confirm the mounting points on the hood and body match the OE-style connection. Replace worn supports in pairs when vehicle condition and service history indicate both are aging, and support the hood securely during removal and installation.
Quality Assurance
Stabilus is a recognized OE supplier of gas springs and lift supports, and this part is built to match the listed fitment and dimensional requirements for the Buick Enclave application. Part number 3B-253106 is specified for 2008-2012 Buick Enclave hood support service.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2012 | Buick | Enclave | N/A | — |
| 2011 | Buick | Enclave | N/A | — |
| 2010 | Buick | Enclave | N/A | — |
| 2009 | Buick | Enclave | N/A | — |
| 2008 | Buick | Enclave | N/A | — |
