OE Quality
60-Day Returns

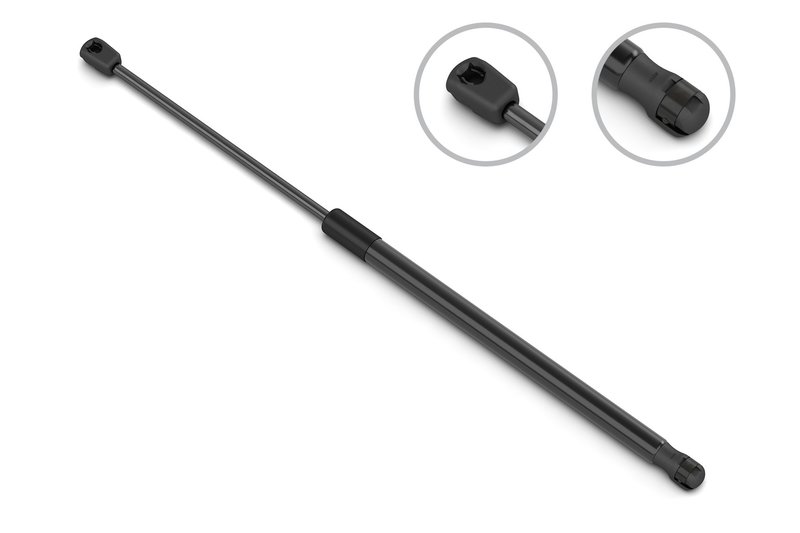

Stabilus 3B-269871 Hatch Lift Support
Stabilus Gas Spring for Volkswagen Atlas
This Stabilus gas spring is built for Volkswagen Atlas liftgate applications that require controlled opening and secure hold force. Part number 3B-269871 matches OE-style dimensions and connection points for a direct replacement on supported Atlas model years.
Key Features
- Brand: Stabilus
- Part number: 3B-269871
- Force rating: 680 N (153 lb)
- Extended length: 589 mm (23.189 in)
- Compressed length: 406 mm (15.984 in)
- Rod diameter: 10 mm (0.394 in)
- Tube diameter: 22 mm (0.866 in)
- Plastic socket rod and tube connections
- OE cross-reference applications for Volkswagen Atlas liftgate support
Detailed Description
Stabilus 3B-269871 is a gas spring engineered for Volkswagen Atlas rear liftgate use, with a 680 N force rating and OE-matched dimensions for consistent support. The plastic socket connections and measured compressed and extended lengths help ensure proper fitment on Atlas vehicles from 2018 through 2023, including 2021-2023 Volkswagen Atlas models with a temperature compensating valve for increased hold force in cold weather. This part cross-references AP Exhaust 7342 for the same application.
Compatible With: Fits 2018 Volkswagen Atlas, N/A; Fits 2019 Volkswagen Atlas, N/A; Fits 2020 Volkswagen Atlas, N/A (to 09/02/2019); Fits 2021-2023 Volkswagen Atlas, N/A (with Temperature Compensating Valve for increased hold force in cold weather). The Stabilus 3B-269871 is also referenced by OE-style numbers including 269871 and 611275.
Common Uses
- Weak or failing liftgate support on a Volkswagen Atlas
- Liftgate that drops too quickly when opened
- Rear hatch that does not stay fully open
- Loss of hold force in colder weather on supported Atlas applications
- Noise or uneven movement from a worn gas strut
Installation Notes
Verify the rod and tube socket connections match the original part before installation. Compare the compressed length, extended length, and force rating to the removed gas spring to confirm correct application on your Volkswagen Atlas. Replace only with the exact fitment listed for the vehicle year and configuration.
Quality Assurance
Stabilus is a recognized OE supplier for gas springs and lift support components, and this part is built to match the specified application requirements for supported Volkswagen Atlas models.
| Brand | Stabilus |
|---|---|
| Part Number | 3B-269871 |
| Y | |
| Y | |
| Body | 0.866 |
| Compressed Length | 15.984 |
| Compressed Length | 406 |
| Extended Length | 23.189 |
| Extended Length | 589 |
| Force (N) | 680 |
| Force Lbs | 153 |
| Hardware Kit | NO |
| Rod Connection | PLASTIC SOCKET |
| Rod Dia (IN) | 0.394 |
| Rod Diameter | 10 |
| Rod End Attachment Dia (IN) | 0.394 |
| Rod End Attachment Dia (MM) | 10 |
| Shaft | 0.394 |
| Shaft Connection | PLASTIC SOCKET |
| Tube Connection | PLASTIC SOCKET |
| Tube Dia (IN) | 0.866 |
| Tube Diameter | 22 |
| Tube End Attach Dia (IN) | 0.394 |
| Tube End Attach Dia (mm) | 10 |
This part fits 6 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2023 | Volkswagen | Atlas | N/A | With Temperature Compensating Valve for increased hold force in cold weather. |
| 2022 | Volkswagen | Atlas | N/A | With Temperature Compensating Valve for increased hold force in cold weather. |
| 2021 | Volkswagen | Atlas | N/A | With Temperature Compensating Valve for increased hold force in cold weather. |
| 2020 | Volkswagen | Atlas | N/A | To 09/02/2019 |
| 2019 | Volkswagen | Atlas | N/A | |
| 2018 | Volkswagen | Atlas | N/A | From 02/20/2017 |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
