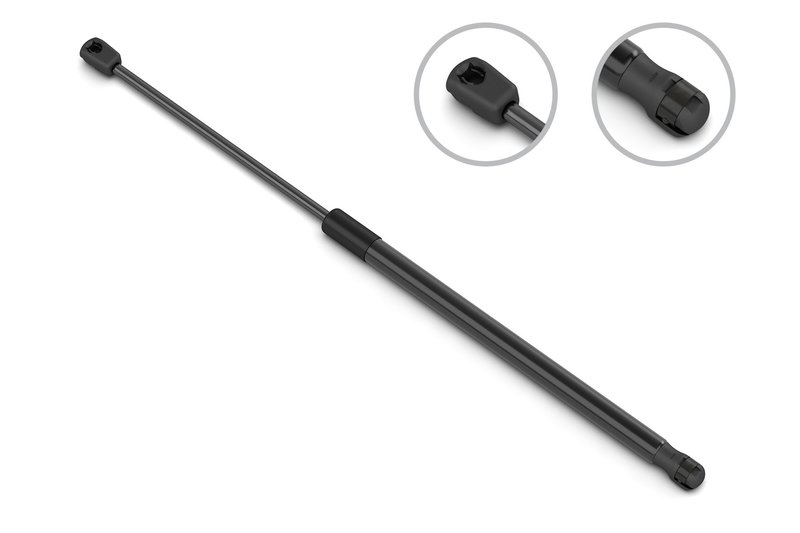

Stabilus 3B-279909 Hatch Lift Support

Overview of Stabilus 3B-279909 Gas Spring for Volkswagen

The Stabilus 3B-279909 gas spring is engineered for reliable performance in Volkswagen vehicles, specifically designed for the Atlas and Golf R models. This gas spring offers precise force and dimensions to ensure smooth operation and durability.

• Compressed length: 15.118 inches (384 mm)
• Extended length: 23.248 inches (590.5 mm)
• Rod diameter: 10 mm (0.394 inches)
• Tube diameter: 22 mm
• Force: 700 N (157 lbs)
• Rod connection: Plastic socket
• Non-engine specific, designed for Volkswagen Atlas and Golf R

Technical Specifications and Features

The Stabilus 3B-279909 gas spring features a 10 mm rod diameter and a 22 mm tube diameter, providing a balanced strength-to-weight ratio suitable for automotive applications. With a compressed length of 15.118 inches and an extended length of 23.248 inches, this gas spring offers a stroke length that supports smooth opening and closing motions. The force rating of 700 Newtons (157 pounds) ensures consistent support for vehicle components requiring controlled motion. The rod end uses a plastic socket connection, which facilitates secure attachment and reduces wear.

Applications and Problem Solving

This gas spring is compatible with Volkswagen Atlas and Golf R models, making it suitable for various applications such as hood supports, tailgate lifts, or trunk lid assistance. It addresses common issues including:

• Difficulty in lifting or holding open heavy panels
• Unstable or jerky motion during opening and closing
• Wear or failure of original gas springs causing improper support
• Need for precise force control to prevent damage to vehicle components

Installation Notes and Tips

When installing the Stabilus 3B-279909 gas spring, ensure the plastic socket connections are securely fastened to the mounting points. Verify the orientation of the gas spring matches the original part to maintain proper function. It is recommended to lubricate pivot points lightly and avoid overextending the gas spring beyond its specified extended length of 23.248 inches. Proper installation will help maintain consistent force and prolong service life.

Quality Assurance and Warranty

Stabilus is a recognized manufacturer of gas springs with a focus on durability and precision. The 3B-279909 gas spring undergoes rigorous quality control to meet automotive standards. While specific warranty details are not provided here, Stabilus products typically come with manufacturer-backed warranties covering defects in materials and workmanship. For exact warranty terms, consult the product documentation or manufacturer.
