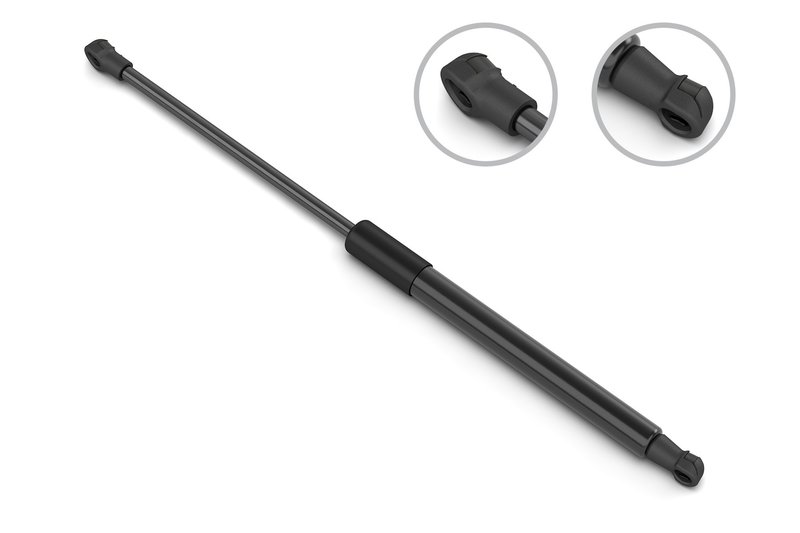

Stabilus 3B-315280
Stabilus 3B-315280 Gas Spring for Mazda 3
Stabilus 3B-315280 is a gas spring built for controlled lift support and smooth closing action on select Mazda 3 applications. With a 375 N force rating and plastic socket connections at both ends, it is specified for direct-fit replacement use on confirmed Mazda 3 fitments.
Key Features
- Force rating: 375 N (84.31 lb)
- Extended length: 24.173 in (614 mm)
- Compressed length: 15.531 in (394.5 mm)
- Rod diameter: 0.315 in (8 mm)
- Tube diameter: 0.709 in (18 mm)
- Plastic socket rod and tube connections
- Stabilus part number 3B-315280
Fitment Details
Compatible with 2016-2018 Mazda 3 and 2014-2015 Mazda 3, Japan Built Vehicle. This part cross-references Tuff Support 610952 and AMS Automotive 7004 for the same application.
Product Description
This Stabilus gas spring is engineered to match the dimensional and force requirements of the listed Mazda 3 applications. The 24.173-inch extended length, 15.531-inch compressed length, and 375 N output help maintain consistent support for panels or lift-assisted components that rely on controlled motion. If you are replacing a worn lift support on a Mazda 3, part number 3B-315280 provides the specified connection style and sizing needed for a proper replacement.
Common Issues This Part Can Address
- Weak or failing lift support that no longer holds position
- Hatch, hood, or panel movement that drops too quickly
- Uneven or inconsistent opening and closing effort
- Noise or binding caused by a worn gas spring
- Loss of support on Mazda 3 lift-assisted components
Installation Notes and Tips
Verify the compressed length, extended length, rod diameter, tube diameter, and socket style against the original part before installation. Confirm the vehicle is one of the listed Mazda 3 applications, including the Japan Built Vehicle note for 2014-2015 models. Replace the support with the component fully secured and the lift panel properly supported during service.
Quality Assurance
Stabilus is a recognized OE supplier for gas springs and lift supports, and this part is built to the listed specifications for fit and function on the confirmed Mazda 3 applications.
| Brand | Stabilus |
|---|---|
| Part Number | 3B-315280 |
| 0.315 | Y |
| Compressed Length | 15.531 |
| Compressed Length | 394.5 |
| Rod Diameter | 8 |
| Lower Inside Diameter | Y |
| Tube Diameter | 18 |
| Extended Length | 24.173 |
| Extended Length | 614 |
| Agricultural Equipment | N |
| Body | 0.709 |
| Engine Specific | N |
| Force (N) | 375 |
| Force Lbs | 84.31 |
| Hardware Kit | No |
| Heavy Truck | N |
| High Performance | N |
| IndustrialOff Highway | N |
| Marine | N |
| Medium Truck | N |
| MotorCycleRV | N |
| NonVehicle Specific | N |
| Personal Watercraft | N |
| Rod Connection | Plastic socket |
| Rod Dia (IN) | 0.315 |
| Rod End Attachment Dia (IN) | 0.394 |
| Rod End Attachment Dia (MM) | 10 |
| Shaft | 0.31496062992126 |
| Shaft Connection | Plastic socket |
| Small Engine | N |
| Snowmobile | N |
This part fits 5 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2018 | Mazda | 3 | N/A | |
| 2017 | Mazda | 3 | N/A | |
| 2016 | Mazda | 3 | N/A | |
| 2015 | Mazda | 3 | N/A | Japan Built Vehicle |
| 2014 | Mazda | 3 | N/A | Japan Built Vehicle |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
