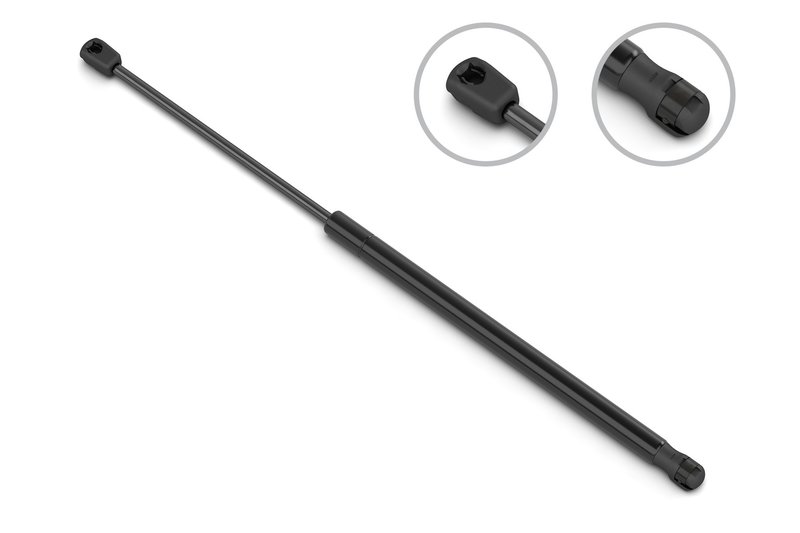

Stabilus 3B-434985 Hood Lift Support

Overview of Stabilus Hood Lift Support for Cadillac SRX

The Stabilus hood lift support part number 3B-434985 is designed specifically for Cadillac SRX models. This hood lift support provides reliable assistance in lifting and holding the hood open, ensuring safe and convenient engine access.

• Compatible with Cadillac SRX vehicles
• Compressed length: 15.157 inches (385 mm)
• Extended length: 23.209 inches (589.5 mm)
• Rod diameter: 8 mm (0.315 inches)
• Tube diameter: 18 mm
• Force rating: 270 Newtons (61 lbs)
• Rod connection type: Plastic socket
• No hardware kit included

Technical Details and Specifications

The Stabilus 3B-434985 hood lift support features a compressed length of 15.157 inches (385 mm) and extends up to 23.209 inches (589.5 mm), providing ample range for smooth hood operation. The rod diameter measures 8 mm (0.315 inches), while the tube diameter is 18 mm, ensuring durability and proper fitment. With a force rating of 270 Newtons (61 lbs), this gas spring offers consistent support to hold the hood securely in place. The rod end attachment uses a plastic socket connection, designed for easy installation and reliable performance.

Applications and Problem Solving

This hood lift support is engineered for use on Cadillac SRX models, providing a direct replacement for worn or failing hood struts. It addresses common issues such as:

• Difficulty in lifting the hood due to weak or broken struts
• Hood not staying open safely during maintenance
• Excessive hood movement or rattling while open
• Corrosion or damage to original lift supports
• Uneven hood support causing strain on hinges

Installation Notes and Tips

Installation of the Stabilus 3B-434985 hood lift support is straightforward but requires attention to detail. Ensure the vehicle is parked on a level surface and the hood is securely propped open before removal of the old strut. The plastic socket rod connection allows for a snap-on installation to the hood and body mounting points. No additional hardware kit is included, so retain original mounting clips or fasteners. Verify the orientation and length of the new support matches the original to ensure proper fit and function.

Quality Assurance and Warranty

Stabilus is a recognized manufacturer of gas springs and lift supports, known for consistent quality and durability. While specific warranty details for part number 3B-434985 are not provided here, Stabilus products typically come with manufacturer-backed warranties covering defects in materials and workmanship. Using this hood lift support on your Cadillac SRX helps maintain factory-level performance and safety standards.
