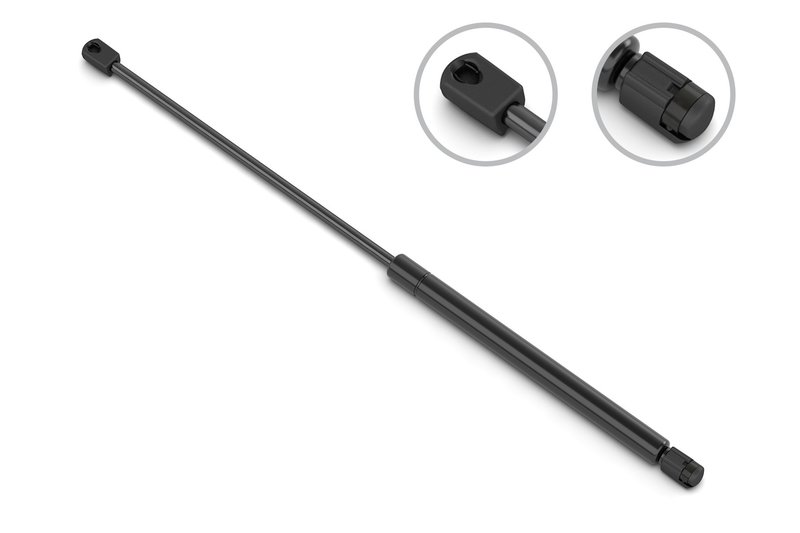

Stabilus 3B-465573 Hood Lift Support

Overview of Stabilus Hood Lift Support for Cadillac CTS

The Stabilus hood lift support part number 3B-465573 is designed specifically for Cadillac CTS models. This hood lift support provides reliable assistance in lifting and holding the hood open, ensuring safe and convenient access to the engine compartment.

• Compatible with Cadillac CTS vehicles
• Compressed length: 15.098 inches (383.5 mm)
• Extended length: 26.260 inches (667 mm)
• Rod diameter: 8 mm (0.315 inches)
• Tube diameter: 18 mm
• Force: 205 Newtons (46 lbs)
• Rod connection and shaft connection use durable plastic sockets
• Non-engine specific, designed for body hood support

Technical Details and Specifications

This hood lift support from Stabilus features a compressed length of 15.098 inches (383.5 mm) and extends up to 26.260 inches (667 mm), providing ample range for smooth hood operation on Cadillac CTS models. The rod diameter measures 8 mm (0.315 inches), while the tube diameter is 18 mm, ensuring structural integrity and consistent performance. The lift force is rated at 205 Newtons (46 lbs), which is sufficient to hold the hood securely in place during maintenance or inspection.

The rod and shaft connections utilize plastic sockets, which offer reliable attachment points while minimizing wear. This part is not engine-specific and is intended solely for body hood lift support applications. It does not include a hardware kit, so existing mounting components should be reused or sourced separately.

Applications and Problem Solving

This Stabilus hood lift support is used to replace worn or failing hood struts on Cadillac CTS vehicles. It addresses several common issues:

• Difficulty in lifting or holding the hood open
• Hood falling unexpectedly during engine access
• Excessive hood vibration or movement while open
• Corroded or leaking gas struts reducing lift force
• Improper hood alignment due to faulty supports

Installation Notes and Tips

• Ensure the vehicle is parked on a level surface and the hood is securely supported before removal
• Use appropriate tools to detach the old hood lift support from the plastic socket connections
• Compare the new Stabilus 3B-465573 part with the original to confirm dimensions and fitment
• Install the new lift support by snapping the plastic socket ends onto the mounting points
• Test the hood operation to verify smooth lifting and secure holding

Quality Assurance and Warranty

Stabilus is a recognized manufacturer of automotive lift supports, known for engineering precision and durability. While specific warranty details for part number 3B-465573 are not provided, Stabilus products typically meet industry standards for quality and reliability. It is recommended to consult the product documentation or supplier for warranty information related to this hood lift support.
