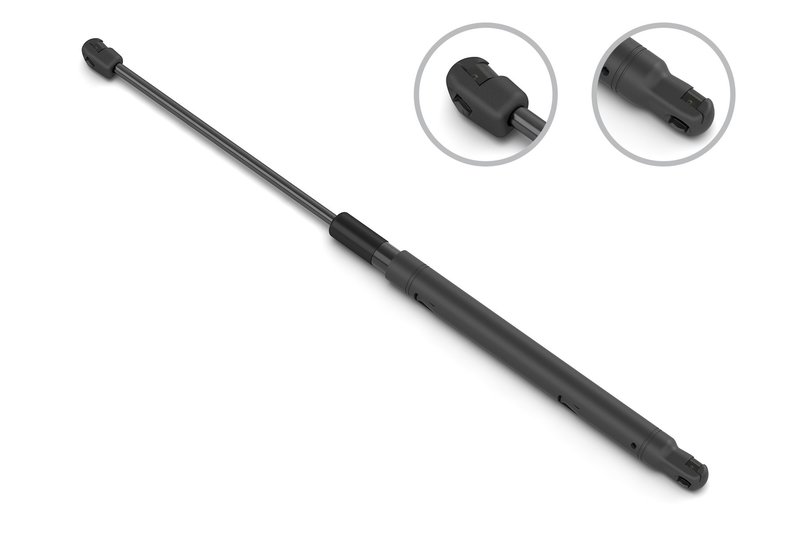

Stabilus 3B-537997 Hood Lift Support - Right

Reliable Hood Lift Support for Mercedes-Benz GL Series

The Stabilus 3B-537997 Hood Lift Support is engineered to provide consistent and smooth hood operation for select Mercedes-Benz models. Designed specifically for GL320, GL350, GL450, GL500, and GL550 vehicles, this hood lift support ensures secure and controlled hood lifting and holding.

• Compatible with Mercedes-Benz GL320, GL350, GL450, GL500, and GL550 models
• Force rating of 355 Newtons (80 lbs) for reliable support
• Compressed length: 14.488 inches (368 mm); Extended length: 23.228 inches (590 mm)
• Rod diameter of 8 mm (0.315 inches) with plastic socket rod connection
• Tube diameter of 18 mm for durability and strength

Technical Specifications and Features

This hood lift support from Stabilus features a compressed length of 14.488 inches (368 mm) and extends up to 23.228 inches (590 mm), providing ample range for hood movement. The rod diameter measures 8 mm (0.315 inches) and connects via a plastic socket, ensuring smooth articulation and secure attachment. The tube diameter of 18 mm adds structural integrity to withstand repeated use. With a force rating of 355 Newtons (80 lbs), this lift support offers consistent pressure to hold the hood firmly in place during maintenance or inspection.

Applications and Problem Solving

• Replaces worn or weak hood lift supports on Mercedes-Benz GL320, GL350, GL450, GL500, and GL550
• Prevents hood from unexpectedly closing during engine access
• Eliminates difficulty in lifting heavy hoods safely
• Restores smooth and controlled hood operation
• Addresses rattling or loose hood issues caused by faulty supports

Installation Notes and Tips

Installation of the Stabilus 3B-537997 hood lift support requires basic hand tools and moderate mechanical skill. Ensure the hood is securely propped open before removing the old lift support. The plastic socket rod connection allows for straightforward attachment to the hood and frame mounting points. Verify the compressed and extended lengths match the original part to ensure proper fitment. No additional hardware kit is included, so retain existing mounting clips or fasteners.

Quality Assurance and Warranty

Stabilus is a recognized manufacturer of automotive gas springs and lift supports, known for precision engineering and durability. This hood lift support is manufactured to meet OEM specifications for Mercedes-Benz GL series vehicles. While no specific warranty details are provided, Stabilus products typically undergo rigorous quality control to ensure reliable performance and longevity.
