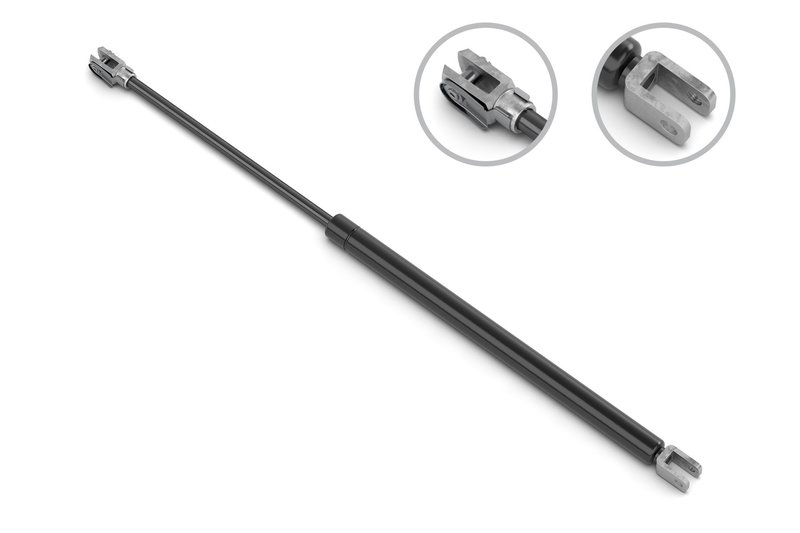

Stabilus 3B-586261 Hatch Lift Support

Overview of Stabilus Gas Spring for Toyota 4Runner

The Stabilus gas spring part number 3B-586261 is engineered for reliable performance in Toyota 4Runner models. Designed with precise dimensions and force specifications, this gas spring supports smooth operation and durability.

• Compressed length: 15.335 inches (389.5 mm)
• Extended length: 23.937 inches (608 mm)
• Rod diameter: 10 mm (0.394 inches)
• Tube diameter: 22 mm
• Force: 700 N (157 lbs)
• Rod connection type: Fork
• Includes hardware kit 664223

Technical Specifications and Features

This Stabilus gas spring features a rod diameter of 10 mm and a tube diameter of 22 mm, providing a balanced strength-to-weight ratio suitable for automotive applications. The compressed length measures 15.335 inches, extending to 23.937 inches when fully deployed. It delivers a force of 700 Newtons (157 pounds), ensuring consistent support and controlled motion. The fork-style rod connection facilitates secure attachment and compatibility with Toyota 4Runner components. The included hardware kit (664223) simplifies installation and replacement.

Application and Compatibility

Specifically designed for Toyota 4Runner vehicles, the Stabilus 3B-586261 gas spring is ideal for applications requiring reliable lift and support mechanisms. It is not intended for agricultural, heavy truck, marine, or motorcycle use. This gas spring is engine-independent and non-specific to other vehicle types, focusing on the Toyota 4Runner fitment.

• Supports liftgate or hood operation in Toyota 4Runner
• Replaces worn or damaged gas springs to restore smooth motion
• Helps maintain proper tension and positioning of vehicle panels
• Reduces effort required to open or close heavy components
• Prevents sudden drops or uncontrolled movement of supported parts

Installation Notes and Tips

When installing the Stabilus 3B-586261 gas spring on a Toyota 4Runner, ensure the fork connections are properly aligned and securely fastened using the provided hardware kit 664223. Verify the orientation matches the original equipment to maintain correct force direction. It is recommended to replace gas springs in pairs to ensure balanced operation. Use appropriate tools to avoid damage to the rod or tube during installation.

Quality Assurance and Warranty

Stabilus gas springs are manufactured to meet strict quality standards for durability and performance. While specific warranty details for part number 3B-586261 should be confirmed with the manufacturer or distributor, Stabilus typically offers coverage against defects in materials and workmanship. Proper installation and use within specified parameters contribute to the longevity of this gas spring.
