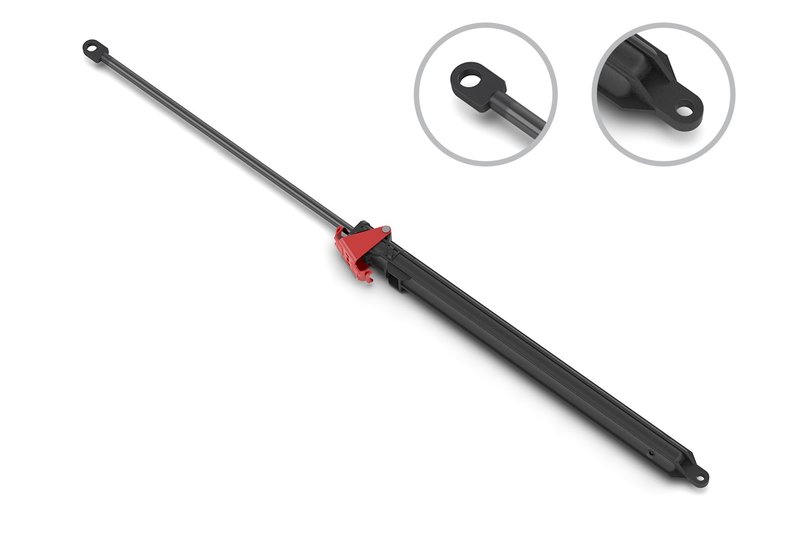

Stabilus 3B-6512AJ Hood Lift Support

Reliable Hood Lift Support for Volvo 760, 940, 960, S90, and V90

The Stabilus 3B-6512AJ Hood Lift Support provides consistent and controlled hood operation for select Volvo models. Designed to deliver precise force and durability, this hood lift support ensures smooth hood lifting and secure positioning.

• Compatible with Volvo 760, 940, 960, S90, and V90 models
• Force rating of 160 Newtons (36 lbs) for balanced hood support
• Compressed length of 14.56 inches (370 mm) and extended length of 24.6 inches (625 mm)
• Rod diameter of 8 mm (0.315 inches) with metal blade rod connection
• Tube diameter of 34 mm for robust structural integrity

Technical Specifications and Features

The Stabilus 3B-6512AJ hood lift support features a compressed length of 14.56 inches (370 mm) and extends up to 24.6 inches (625 mm), providing ample range for hood movement. The rod diameter measures 8 mm (0.315 inches) and connects via a metal blade, ensuring a secure and stable attachment. The tube diameter of 34 mm contributes to the overall strength and durability of the support. With a force rating of 160 Newtons (36 lbs), this lift support offers reliable assistance when opening and holding the hood in place.

Applications and Problem Solving

• Replaces worn or weak hood lift supports on Volvo 760, 940, 960, S90, and V90
• Prevents hood from slamming shut unexpectedly
• Eliminates difficulty in lifting heavy hoods
• Maintains hood position securely during maintenance or inspection
• Restores smooth and controlled hood operation

Installation Notes and Tips

Installation of the Stabilus 3B-6512AJ hood lift support requires matching the compressed and extended lengths to the vehicle’s specifications. Ensure the metal blade rod connection aligns properly with the hood and body mounting points. No additional hardware is included, so verify existing mounting components are in good condition before installation. Proper installation will provide consistent hood support and prevent premature wear.

Quality Assurance and Warranty

Stabilus is a recognized manufacturer of automotive gas springs and lift supports, known for engineering precision and durability. While specific warranty details for part number 3B-6512AJ are not provided, Stabilus products typically meet stringent quality standards to ensure reliable performance in automotive applications.
