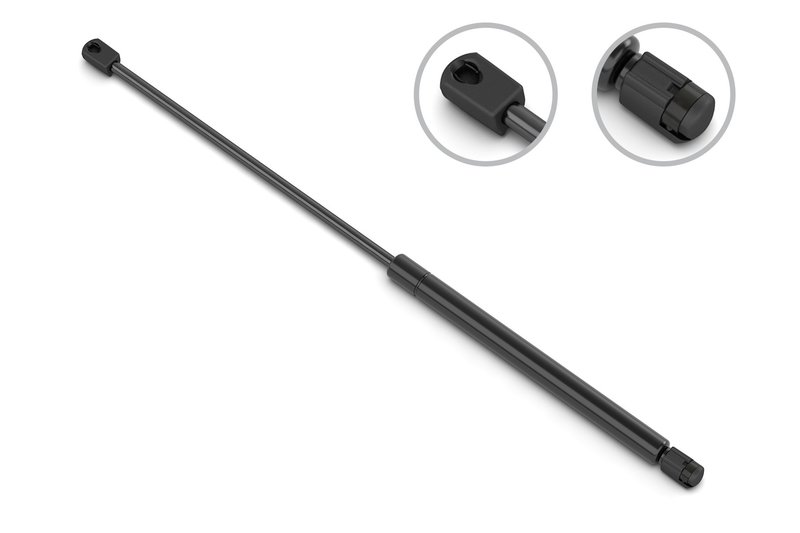

Stabilus 3B-651760 Hood Lift Support

Reliable Hood Lift Support for Cadillac XLR

The Stabilus 3B-651760 hood lift support is designed specifically for Cadillac XLR models, providing consistent and controlled hood operation. Engineered with precise dimensions and force ratings, this hood lift support ensures smooth lifting and secure holding of the hood.

Key Features of Stabilus Hood Lift Support 3B-651760

• Compressed length: 16.339 inches (415 mm)
• Extended length: 27.835 inches (707 mm)
• Rod diameter: 8 mm (0.315 inches)
• Tube diameter: 18 mm
• Force rating: 140 Newtons (31 lbs)
• Rod end attachment with plastic socket for secure connection
• Compatible specifically with Cadillac XLR models

Detailed Product Description

The Stabilus hood lift support part number 3B-651760 is engineered to meet the exact specifications required for Cadillac XLR vehicles. With a compressed length of 16.339 inches and an extended length of 27.835 inches, this gas strut provides the optimal range of motion for smooth hood operation. The 8 mm rod diameter and 18 mm tube diameter contribute to the structural integrity and durability of the lift support. Rated at 140 Newtons of force, it offers reliable support to hold the hood securely in place during maintenance or inspection. The rod end features a plastic socket connection, ensuring a secure and vibration-resistant fit.

Common Applications and Problem Solving

• Replaces worn or weak hood lift supports on Cadillac XLR
• Eliminates difficulty in opening or holding the hood open
• Prevents sudden hood drops that can cause damage or injury
• Restores smooth and controlled hood movement
• Addresses rattling or loose hood support issues

Installation Notes and Tips

• Ensure the vehicle is parked on a level surface before installation
• Use appropriate tools to remove the old lift support carefully
• Align the plastic socket ends properly to avoid damage during installation
• Verify the part number 3B-651760 matches the original component before replacement
• Test the hood operation after installation to confirm secure fit and function

Quality Assurance and Warranty

Stabilus is a recognized manufacturer of automotive gas springs and lift supports, known for precision engineering and durability. While specific warranty details for part number 3B-651760 may vary, Stabilus products typically come with manufacturer-backed quality assurance to meet OEM standards. This hood lift support is designed to provide reliable performance for Cadillac XLR vehicles under normal operating conditions.
