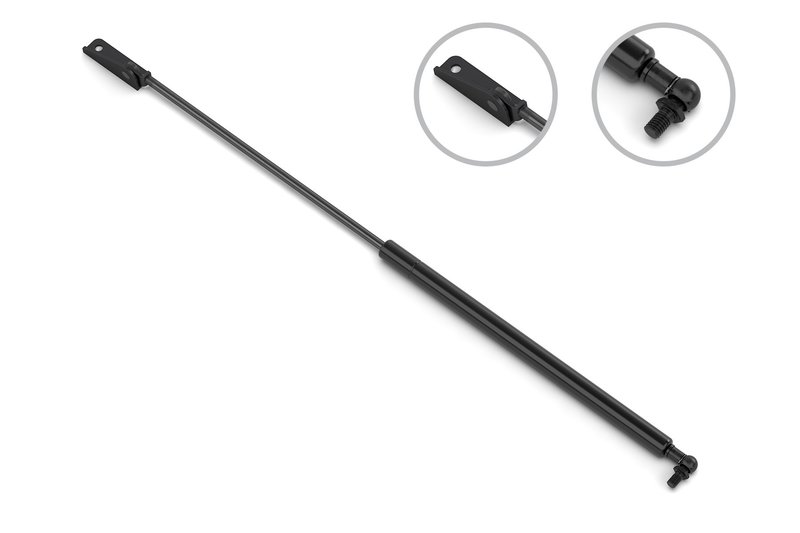

Stabilus 3B-735171 - Left
| Brand | Stabilus 3B-735171 |
|---|---|
| Position | Left |
| 0.315 | Y |
| Compressed Length | 13.858 |
| Compressed Length | 352 |
| Rod Diameter | 8 |
| 13.858 | Y |
| Tube Diameter | 18 |
| Extended Length | 24.094 |
| Extended Length | 612 |
| Agricultural Equipment | N |
| Body | 0.709 |
| Engine Specific | N |
| Force (N) | 190 |
| Force Lbs | 43 |
| Hardware Kit | No |
| Heavy Truck | N |
| High Performance | N |
| IndustrialOff Highway | N |
| Marine | N |
| Medium Truck | N |
| MotorCycleRV | N |
| NonVehicle Specific | N |
| Personal Watercraft | N |
| Rod Connection | Metal blade with bracket |
| Rod Dia (IN) | 0.315 |
| Rod End Attachment Dia (IN) | 0.512 |
| Rod End Attachment Dia (MM) | 13 |
| Shaft | 0.315 |
| Shaft Connection | Metal blade with bracket |
| Small Engine | N |
| Snowmobile | N |
| Fits | Suzuki · 6 vehicles |
Direct replacement fit. Built for the listed application with OE-style attachment points.
Controlled support. 190 N force rating helps maintain smooth opening and closing action.
Precise dimensions. 24.094-inch extended length and 13.858-inch compressed length.
Cross-references Lesjofors 8188907, Stabilus 3B-735171 and 81 889 07 for the same application. See all 20.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Overview
Stabilus 3B-735171 is a gas spring built for direct replacement use on the specified application. It uses a metal blade with bracket rod connection and a metal socket with ball stud tube connection for a secure attachment style.
Compatible with Suzuki Swift applications, this gas spring is specified with a 24.094-inch extended length, 13.858-inch compressed length, and 190 N of force. The 8 mm rod diameter and 18 mm tube diameter provide the dimensional profile needed for the listed fitment.
Key Features
- Direct replacement gas spring for the listed application
- Metal blade with bracket rod connection
- Metal socket with ball stud tube connection
- 24.094-inch extended length and 13.858-inch compressed length
- 190 N force rating for controlled support
Detailed Description
Stabilus 3B-735171 is engineered as a replacement gas spring for the 1989-1994 Suzuki Swift, left side. The dimensional specifications, including the 352 mm compressed length and 612 mm extended length, help ensure the part matches the required travel range for the application. The 43 lb force rating is suited to the load requirements of the listed vehicle fitment. This part number, 3B-735171, is also referenced under interchange number 735171.
For buyers searching for a Suzuki Swift gas spring, hatch support, or lift support replacement, this Stabilus unit provides the attachment style and dimensions needed for the specified vehicle application. The part number 3B-735171 appears in interchange listings tied to the same application.
What It Is Used For
- Replacing a worn gas spring that no longer holds position
- Restoring controlled opening and closing action
- Addressing weak or inconsistent support force
- Correcting fitment issues caused by incorrect length or attachment style
Installation Notes and Tips
Verify the listed left-side fitment before ordering. Compare the compressed length, extended length, rod diameter, and tube connection style against the original part to confirm application match. The hardware kit is not included.
Quality Assurance
Stabilus is a recognized supplier of gas springs and support components. Part number 3B-735171 is listed with OE-style interchange references for the same application, including 735171.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 1994 | Suzuki | Swift | Left | — |
| 1993 | Suzuki | Swift | Left | — |
| 1992 | Suzuki | Swift | Left | — |
| 1991 | Suzuki | Swift | Left | — |
| 1990 | Suzuki | Swift | Left | — |
| 1989 | Suzuki | Swift | Left | — |
