Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

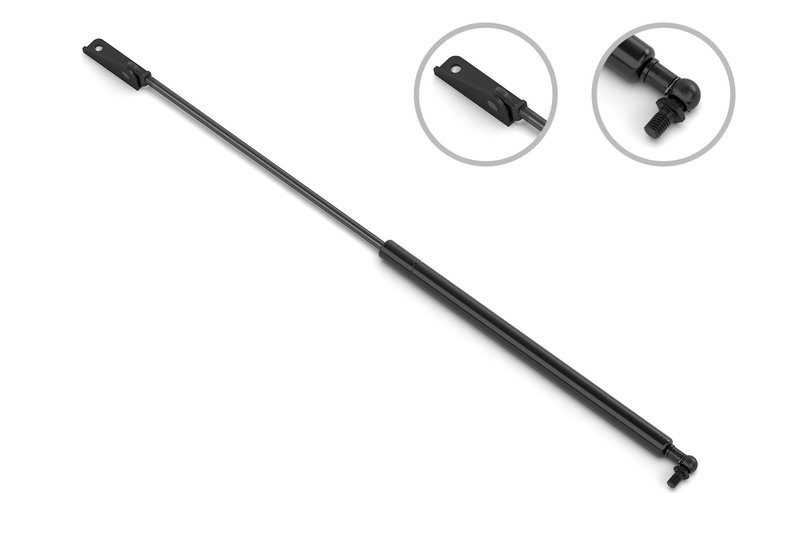

Stabilus 3B-735888 - Right
| Brand | Stabilus 3B-735888 |
|---|---|
| Position | Right |
| 0.315 | Y |
| Compressed Length | 13.858 |
| Compressed Length | 352 |
| Rod Diameter | 8 |
| 13.858 | Y |
| Tube Diameter | 18 |
| Extended Length | 24.094 |
| Extended Length | 612 |
| Agricultural Equipment | N |
| Body | 0.709 |
| Engine Specific | N |
| Force (N) | 190 |
| Force Lbs | 43 |
| Hardware Kit | No |
| Heavy Truck | N |
| High Performance | N |
| IndustrialOff Highway | N |
| Marine | N |
| Medium Truck | N |
| MotorCycleRV | N |
| NonVehicle Specific | N |
| Personal Watercraft | N |
| Rod Connection | Metal blade with bracket |
| Rod Dia (IN) | 0.315 |
| Rod End Attachment Dia (IN) | 0.512 |
| Rod End Attachment Dia (MM) | 13 |
| Shaft | 0.315 |
| Shaft Connection | Metal blade with bracket |
| Small Engine | N |
| Snowmobile | N |
| Fits | Suzuki · 6 vehicles |
OE-style replacement. Direct-fit gas spring for the specified application.
Controlled support. 190 N force rating helps manage opening and closing movement.
Application-specific mounting. Metal blade and socket connections match the listed design.
Cross-references Lesjofors 8188906, Stabilus 3B-735888 and 81 889 06 for the same application. See all 22.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Product Overview
This Stabilus gas spring is built for direct replacement use on the specified application. It uses a metal blade with bracket rod connection and a metal socket with ball stud tube connection for a secure, application-specific mounting style. Part number 3B-735888 is listed for the right-side application on the Suzuki Swift.
Key Features
- Gas spring with 190 N of force for controlled movement.
- Extended length of 24.094 in. and compressed length of 13.858 in.
- 8 mm rod diameter and 18 mm tube diameter for a compact fit.
- Metal blade with bracket rod connection and metal socket with ball stud tube connection.
- Cross-references OE-style part numbers for the same application.
Detailed Description
Stabilus 3B-735888 is a gas spring specified for the right-side application on 1989-1994 Suzuki Swift models. The unit measures 24.094 inches extended and 13.858 inches compressed, with a 190 N force rating to provide controlled support through the motion range. Its metal blade with bracket rod connection and metal socket with ball stud tube connection reflect the mounting style used for this application. Part number 3B-735888 also cross-references OE-style numbers used for the same fitment.
What It Helps Address
- Weak or inconsistent lift support.
- Difficulty holding the supported panel in position.
- Uneven or abrupt movement during opening and closing.
- Replacement needs for a worn gas spring on the specified application.
Installation Notes
Verify the mounting style, compressed length, extended length, and force rating before installation. Confirm the right-side application on the Suzuki Swift and compare the existing part number 3B-735888 against the vehicle’s original component before replacement.
Quality Assurance
Stabilus is a recognized supplier of gas springs and related motion-control components. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 1994 | Suzuki | Swift | Right | — |
| 1993 | Suzuki | Swift | Right | — |
| 1992 | Suzuki | Swift | Right | — |
| 1991 | Suzuki | Swift | Right | — |
| 1990 | Suzuki | Swift | Right | — |
| 1989 | Suzuki | Swift | Right | — |
| No rows match your filter. | ||||
