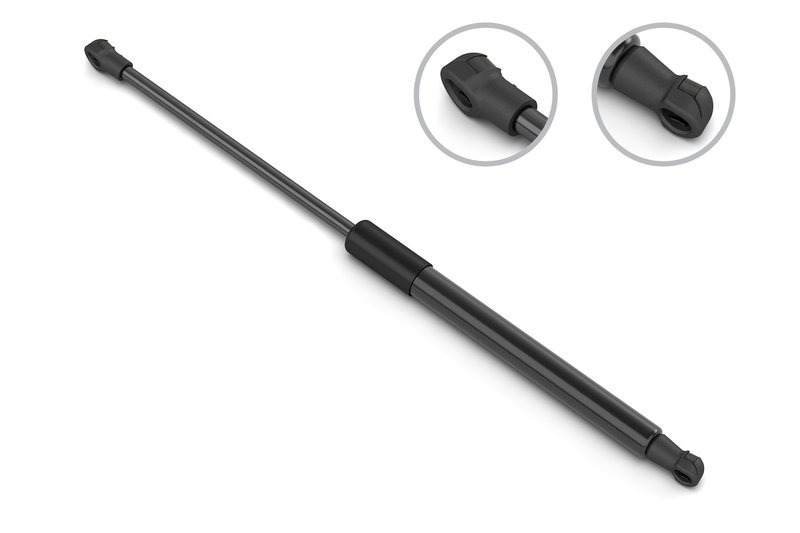

Stabilus 3B-756948 Hatch Lift Support

Overview of Stabilus 3B-756948 Gas Spring for Toyota Prius V

The Stabilus 3B-756948 gas spring is designed specifically for the Toyota Prius V, providing reliable support and smooth operation. Engineered with precise dimensions and force ratings, this gas spring ensures consistent performance for your vehicle's lift and support needs.

• Compressed length: 16.378 inches (416 mm)
• Extended length: 24.232 inches (615.5 mm)
• Rod diameter: 8 mm (0.315 inches)
• Tube diameter: 18 mm
• Force: 555 Newtons (125 lbs)
• Rod connection type: Plastic socket
• Compatible specifically with Toyota Prius V models

Technical Specifications and Features

This Stabilus gas spring features a robust 8 mm rod diameter and an 18 mm tube diameter, providing a balanced combination of strength and smooth movement. The compressed length measures 16.378 inches (416 mm), extending to 24.232 inches (615.5 mm) when fully deployed. With a force rating of 555 Newtons (125 lbs), it offers consistent lift support suitable for the Toyota Prius V. The rod end attachment uses a plastic socket connection, ensuring secure and reliable installation.

Applications and Problem Solving

The Stabilus 3B-756948 gas spring is ideal for addressing common issues related to lift supports in Toyota Prius V vehicles. It is designed to:

• Replace worn or weak lift supports causing difficulty in opening or holding hatches
• Restore smooth and controlled motion to rear hatch or hood mechanisms
• Prevent sudden closures that may cause damage or injury
• Maintain proper tension and support for vehicle components requiring gas spring assistance

Installation Notes and Tips

When installing the Stabilus 3B-756948 gas spring on a Toyota Prius V, ensure the following:

• Verify the part number matches your vehicle’s requirements
• Use appropriate tools to avoid damage to the plastic socket rod connection
• Install with the rod end facing downward to prolong gas spring life
• Check for proper alignment and secure attachment points before finalizing installation

Quality Assurance and Warranty

Stabilus is a recognized manufacturer of gas springs with a focus on durability and precision. The 3B-756948 gas spring undergoes strict quality control to meet OEM standards. While specific warranty details may vary, Stabilus products typically include coverage against manufacturing defects to ensure reliability and customer confidence.
