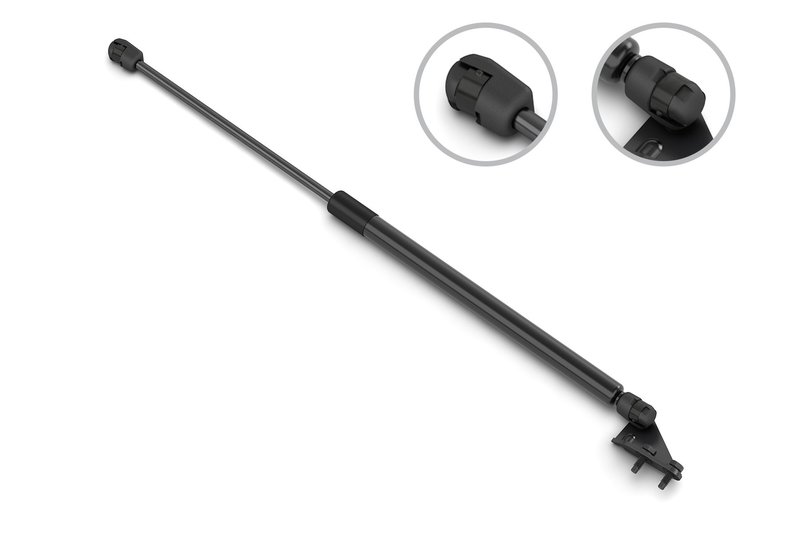

Stabilus 3B-810488 Hatch Lift Support - Left
Stabilus 3B-810488 Lift Support for Mazda 3
The Stabilus 3B-810488 is a gas-charged lift support built for controlled opening and holding performance on select Mazda 3 applications. It uses plastic socket connections and the specified extended and compressed lengths to match the original mounting geometry on the left side.
Key Features
- Brand: Stabilus
- Part number: 3B-810488
- Force rating: 375 N / 84 lb
- Extended length: 24.173 in (614 mm)
- Compressed length: 15.433 in (392 mm)
- Rod diameter: 0.315 in (8 mm)
- Tube diameter: 0.709 in (18 mm)
- Rod connection: plastic socket
- Tube connection: plastic socket with bracket
- Fits left-side Mazda 3 applications for 2014-2018 model years
Detailed Description
This Stabilus lift support is engineered for Mazda 3 fitments covering 2014-2015 Mazda 3, left, and 2016-2018 Mazda 3, left, Mexico Built. The 3B-810488 uses a 375 N force rating to help control panel movement with the correct balance of support and closing effort, while the measured compressed and extended lengths help maintain proper alignment at the mounting points. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Problems This Part Can Address
- Hatch, hood, or panel dropping instead of staying open
- Weak or slow lift support movement
- Uneven opening effort on the left side
- Loss of holding force from worn gas struts
- Noise or inconsistent operation from aging support hardware
Installation Notes and Tips
Verify the mounting style, side, and length before installation. Compare the original support’s compressed length, extended length, rod diameter, and tube connection to confirm the correct Mazda 3 replacement. Install with the vehicle supported and avoid forcing the sockets during removal or attachment.
Quality Assurance
Stabilus is a recognized OE supplier for gas springs and lift supports, and this part is built to match the listed dimensions and force specification for the confirmed Mazda 3 fitments. Use the part number 3B-810488 to verify application details before ordering.
| Brand | Stabilus |
|---|---|
| Part Number | 3B-810488 |
| Y | |
| Y | |
| Body | 0.709 |
| Compressed Length | 15.433 |
| Compressed Length | 392 |
| Extended Length | 24.173 |
| Extended Length | 614 |
| Force (N) | 375 |
| Force Lbs | 84 |
| Hardware Kit | NO |
| Rod Connection | PLASTIC SOCKET |
| Rod Dia (IN) | 0.315 |
| Rod Diameter | 8 |
| Rod End Attachment Dia (IN) | 0.394 |
| Rod End Attachment Dia (MM) | 10 |
| Shaft | 0.315 |
| Shaft Connection | PLASTIC SOCKET |
| Tube Connection | PLASTIC SOCKET WITH BRACKET |
| Tube Dia (IN) | 0.709 |
| Tube Diameter | 18 |
| Tube End Attach Dia (IN) | 0.394 |
| Tube End Attach Dia (mm) | 10 |
This part fits 5 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2018 | Mazda | 3 | Left | Mexico Built |
| 2017 | Mazda | 3 | Left | Mexico Built |
| 2016 | Mazda | 3 | Left | Mexico Built |
| 2015 | Mazda | 3 | Left | |
| 2014 | Mazda | 3 | Left |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
