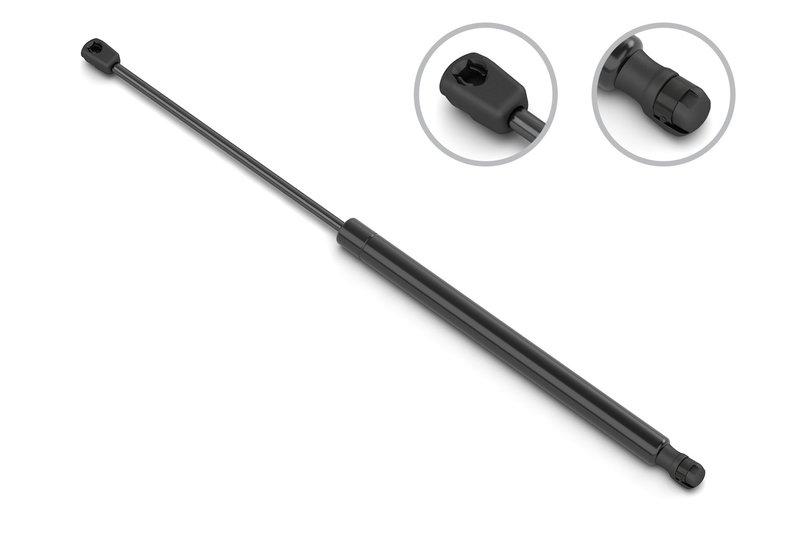

Stabilus 3B-846338 Hatch Lift Support

Overview of Stabilus Gas Spring for Chrysler and Dodge Vehicles

The Stabilus gas spring part number 3B-846338 is designed for reliable performance in Chrysler and Dodge models, including the Caravan, Grand Caravan, and Town & Country. This gas spring offers precise specifications to ensure proper fit and function in your vehicle's application.

• Compressed length: 18.425 inches (468 mm)
• Extended length: 25.866 inches (657 mm)
• Rod diameter: 10 mm (0.394 inches)
• Tube diameter: 22 mm
• Force: 870 Newtons (196 lbs)
• Rod connection type: Plastic socket
• Includes hardware kit 555239 for installation

Technical Details and Specifications

The Stabilus 3B-846338 gas spring features a robust design with a 10 mm rod diameter and a 22 mm tube diameter, providing a balanced strength-to-weight ratio suitable for automotive applications. The compressed length measures 18.425 inches (468 mm), extending to 25.866 inches (657 mm) when fully deployed. It delivers a force of 870 Newtons (196 lbs), ensuring smooth and controlled motion for components such as liftgates, hoods, or tailgates on Chrysler Caravan, Grand Caravan, and Town & Country models. The rod connection utilizes a plastic socket, which is compatible with the included hardware kit 555239, facilitating secure attachment and ease of installation.

Applications and Problem Solving

• Replaces worn or weak gas springs on Chrysler Caravan, Grand Caravan, and Town & Country vehicles
• Restores proper lift and support for liftgates or tailgates
• Eliminates issues with uneven or difficult opening and closing of vehicle panels
• Prevents sudden drops or unsafe operation of supported components
• Improves overall vehicle safety and functionality

Installation Notes and Tips

When installing the Stabilus 3B-846338 gas spring, ensure the vehicle is securely supported and the panel is held in place to prevent injury. Use the included hardware kit 555239 for proper mounting. Verify the orientation of the gas spring matches the original part, with the rod end connected via the plastic socket. Lubricate mounting points if necessary to reduce wear and noise. Follow manufacturer torque specifications for fasteners to maintain secure attachment.

Quality Assurance and Warranty

Stabilus gas springs are manufactured to meet strict quality standards for durability and performance. The 3B-846338 part undergoes rigorous testing to ensure consistent force output and reliable operation. While specific warranty details may vary, Stabilus typically offers coverage against defects in materials and workmanship. Consult product documentation or authorized sources for exact warranty terms related to this gas spring.
