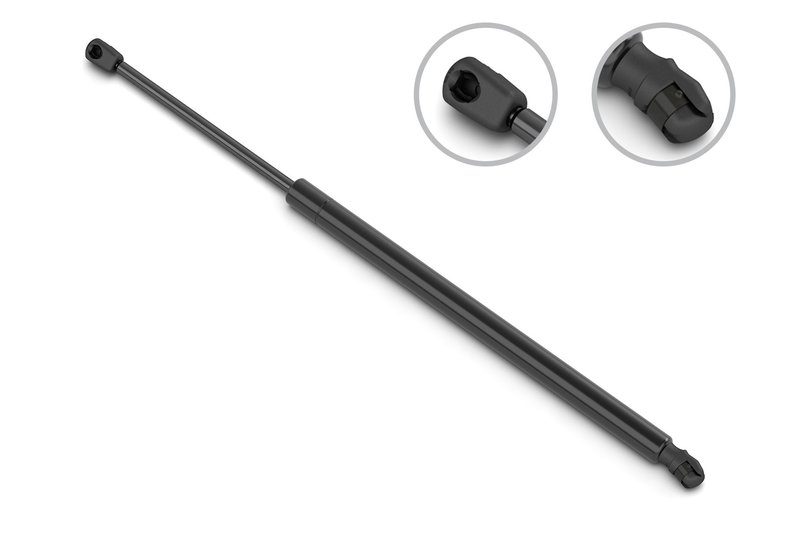

Stabilus 3B-8542UD Hood Lift Support

Overview of Stabilus Hood Lift Support for Porsche Cayenne

The Stabilus hood lift support 3B-8542UD is engineered to provide reliable and consistent support for the hood of your Porsche Cayenne. Designed with precise dimensions and force specifications, this hood lift support ensures smooth and controlled hood operation.

• Compatible with Porsche Cayenne models
• Compressed length: 13.307 inches (338 mm)
• Extended length: 23.031 inches (585 mm)
• Rod diameter: 8 mm (0.315 inches)
• Tube diameter: 18 mm
• Force: 260 Newtons (58 lbs)
• Rod connection and shaft connection use durable plastic sockets

Technical Specifications and Features

The Stabilus 3B-8542UD hood lift support features a rod diameter of 8 mm and a tube diameter of 18 mm, providing a balanced strength-to-weight ratio suitable for the Porsche Cayenne hood. The compressed length measures 13.307 inches (338 mm), extending up to 23.031 inches (585 mm) when fully deployed. It delivers a lifting force of 260 Newtons (58 lbs), ensuring stable hood positioning during maintenance or inspection. Both the rod and shaft connections utilize plastic sockets for secure attachment and smooth operation.

Application and Problem Solving

This hood lift support is specifically designed for the Porsche Cayenne, offering a direct replacement solution for worn or failing hood struts. It addresses common issues such as:

• Difficulty in holding the hood open safely
• Hood closing unexpectedly or slamming shut
• Reduced lift force causing slow or uneven hood movement
• Corrosion or wear in original lift supports
• Loose or damaged rod end attachments

Installation Notes and Tips

Installation of the Stabilus 3B-8542UD hood lift support is straightforward with basic hand tools. Ensure the hood is securely propped open before removing the old lift support. The plastic socket connections on both rod and shaft ends allow for easy snap-on attachment. Verify the compressed and extended lengths match the original part to ensure proper fitment. No additional hardware kit is included, so retain original mounting clips if possible.

Quality Assurance and Warranty

Stabilus is a recognized manufacturer of automotive lift supports, known for consistent quality and durability. The 3B-8542UD hood lift support is manufactured to meet OEM specifications for the Porsche Cayenne. While no specific warranty details are provided here, Stabilus products typically come with manufacturer-backed quality guarantees. Always consult product documentation or the manufacturer for warranty terms.
