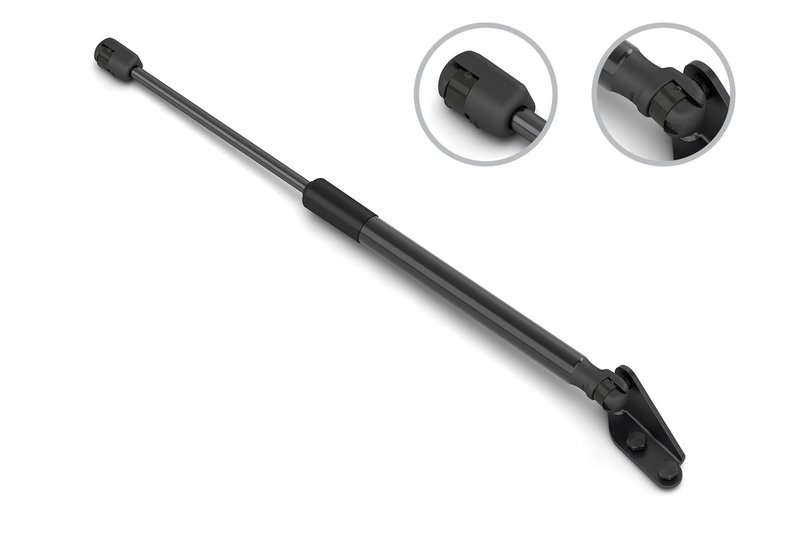

Stabilus 3B-898679 - Left
Stabilus 3B-898679 Gas Spring for Mitsubishi Lancer
Stabilus 3B-898679 is a gas spring built for the left side of select Mitsubishi Lancer models from 2009-2015. With a 460 N (103 lb) force rating, this lift support is specified for controlled opening and holding performance in the intended application.
Key Features
- Brand: Stabilus
- Part number: 3B-898679
- Fits 2009-2015 Mitsubishi Lancer, left
- Extended length: 609.5 mm (23.996 in)
- Compressed length: 363.5 mm (14.311 in)
- Force rating: 460 N / 103 lb
- Rod diameter: 8 mm (0.315 in)
- Tube diameter: 18 mm (0.709 in)
- Plastic socket rod connection
- Plastic socket with bracket tube connection
Detailed Description
This Stabilus gas spring is engineered to match the specified dimensions and attachment style for Mitsubishi Lancer left-side applications. The 609.5 mm extended length, 363.5 mm compressed length, and 460 N force rating are important reference points when replacing an existing lift support, hood support, or similar gas strut in the same vehicle application. Part number 3B-898679 also cross-references Monroe Shocks & Struts 5802A131 and 5802A557 for the same application.
For fitment-based searches, this part is a direct match for 2009-2015 Mitsubishi Lancer left-side applications. If you are comparing Stabilus 3B-898679 against an OE-style replacement, verify the rod and tube connection style, overall length, and force rating against the original unit before ordering.
What It Helps Address
- Weak or failing lift support that no longer holds position
- Slow or uneven opening of the supported panel
- Loss of damping control during lift or close movement
- Noise or instability caused by a worn gas spring
- Mismatch in length, force, or end fittings during replacement
Installation Notes and Tips
Confirm the vehicle is a 2009-2015 Mitsubishi Lancer with left-side application before installation. Compare the original compressed length, extended length, rod diameter, tube diameter, and socket-style connections to the replacement part. Make sure the mounting points are clean and aligned before transferring the support into place.
Quality Assurance
Stabilus is a recognized OE supplier for gas springs and lift supports, and this part is built to the listed dimensional and force specifications for the intended application. Part number 3B-898679 is identified for 2009-2015 Mitsubishi Lancer left-side fitment.
| Brand | Stabilus |
|---|---|
| Part Number | 3B-898679 |
| 0.315 | Y |
| Compressed Length | 14.311 |
| Compressed Length | 363.5 |
| Rod Diameter | 8 |
| Length | Y |
| Tube Diameter | 18 |
| Extended Length | 23.996 |
| Extended Length | 609.5 |
| Agricultural Equipment | N |
| Body | 0.709 |
| Engine Specific | N |
| Force (N) | 460 |
| Force Lbs | 103 |
| Hardware Kit | No |
| Heavy Truck | N |
| High Performance | N |
| IndustrialOff Highway | N |
| Marine | N |
| Medium Truck | N |
| MotorCycleRV | N |
| NonVehicle Specific | N |
| Personal Watercraft | N |
| Rod Connection | Plastic socket |
| Rod Dia (IN) | 0.315 |
| Rod End Attachment Dia (IN) | 0.394 |
| Rod End Attachment Dia (MM) | 10 |
| Shaft | 0.315 |
| Shaft Connection | Plastic socket |
| Small Engine | N |
| Snowmobile | N |
This part fits 7 vehicles. Search below:
| Year | Make | Model | Body Type | Position | Notes |
|---|---|---|---|---|---|
| 2015 | Mitsubishi | Lancer | Hatchback | Left | |
| 2014 | Mitsubishi | Lancer | Hatchback | Left | |
| 2013 | Mitsubishi | Lancer | Hatchback | Left | |
| 2012 | Mitsubishi | Lancer | Hatchback | Left | |
| 2011 | Mitsubishi | Lancer | Left | ||
| 2010 | Mitsubishi | Lancer | Left | ||
| 2009 | Mitsubishi | Lancer | Hatchback | Left |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
