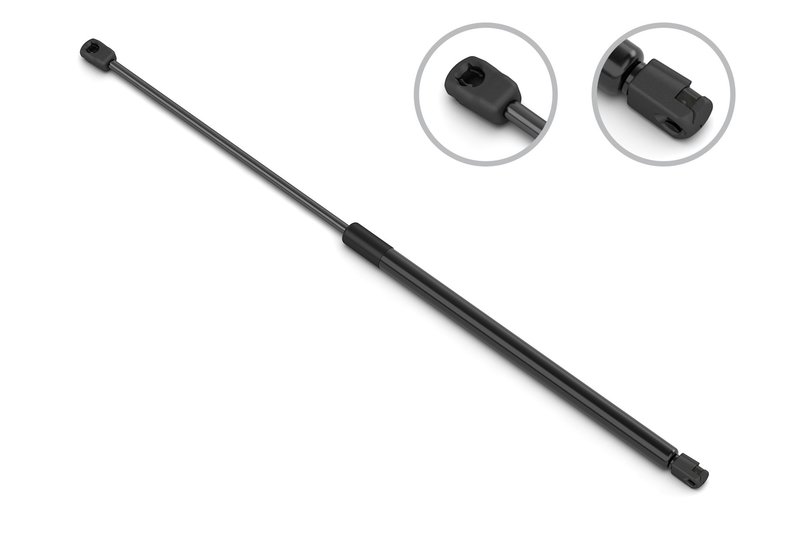

Stabilus 3B-935246 Hood Lift Support

Overview of Stabilus Hood Lift Support for Chevrolet Equinox

The Stabilus hood lift support part number 3B-935246 is designed specifically for Chevrolet Equinox models. This hood lift support provides reliable assistance in lifting and holding the hood securely open, ensuring safe and convenient engine access.

• Compatible with Chevrolet Equinox vehicles
• Compressed length: 14.783 inches (375.5 mm)
• Extended length: 23.307 inches (592 mm)
• Rod diameter: 8 mm (0.315 inches)
• Tube diameter: 19 mm
• Force: 430 Newtons (97 lbs)
• Rod connection type: Plastic socket
• Non-engine specific, designed for body hood application

Technical Specifications and Features

The Stabilus 3B-935246 hood lift support features a robust design with a rod diameter of 8 mm and a tube diameter of 19 mm, providing the necessary strength and durability for daily use. The compressed length measures 14.783 inches (375.5 mm), while the extended length reaches 23.307 inches (592 mm), allowing for smooth hood operation and secure positioning. With a force rating of 430 Newtons (97 lbs), this lift support offers consistent performance to hold the hood open safely. The rod end attachment uses a plastic socket connection, ensuring a secure fit and ease of installation.

Application and Problem Solving

This hood lift support is engineered for Chevrolet Equinox models and addresses common issues such as:

• Difficulty in lifting or holding the hood open
• Worn or weak hood struts causing unsafe hood operation
• Hood vibrations or rattling during vehicle operation
• Corroded or damaged lift supports reducing reliability
• Need for replacement parts matching original equipment specifications

Installation Notes and Tips

Installation of the Stabilus 3B-935246 hood lift support is straightforward for technicians familiar with Chevrolet Equinox hood components. Ensure the vehicle is parked on a level surface and the hood is securely supported during removal of the old lift support. The plastic socket rod connection allows for easy attachment to the hood and body mounts. Verify the compressed and extended lengths match the original part to ensure proper fitment and function.

Quality Assurance and Warranty

Stabilus is a recognized manufacturer of automotive lift supports, known for meeting OEM standards. While specific warranty details for part number 3B-935246 are not provided, Stabilus products typically come with manufacturer-backed quality assurance to ensure durability and performance. Using this hood lift support helps maintain the safety and functionality of your Chevrolet Equinox hood system.
