Home› Body > Hatch› Stabilus 3C-845370 Hatch Lift Support
Stabilus 3C-845370 Hatch Lift SupportOE Quality 60-Day Returns
Part #: 3C-845370

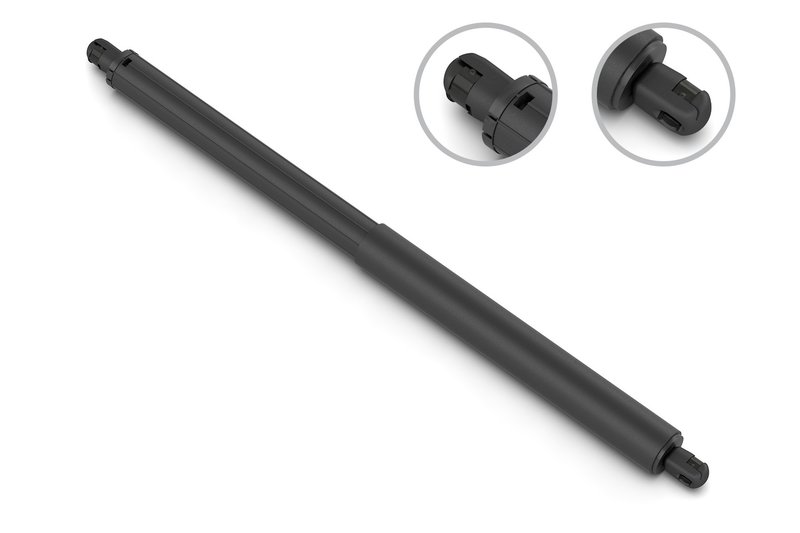

Stabilus 3C-845370 Hatch Lift Support

4 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$89.01Free Shipping
Free ShippingNo Cost to Continental U.S.
Free Returns*Wrong fit? No cost
60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
In Stock · Ready To Ship Most orders ship same-day if ordered before 1pm CST.
OE Direct Replacement — Bolt-on fit, no modifications needed
Fitment: Ford, Explorer and Police Interceptor Utility
Easy Returns — Return within 60 days for a full refund
Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? See all Hatch Lift Support options

Stabilus 3C-845370 Lift Support for Explorer

Stabilus 3C-845370 is a gas-charged hatch lift support for the power liftgate on select Ford Explorer models. It is built with a 920 N (207 lb) force rating, 24.764 in extended length, and 16.988 in compressed length for the specified rear hatch application.

Fits 2016-2019 Ford Explorer, Hatch Lift Support - Power Liftgate. This part cross-references Ford OE numbers such as GB5Z 78406A10-A and GB5Z78406A10A for the same application.

Key Features

  • Stabilus part number 3C-845370
  • 920 N / 207 lb lift force
  • 24.764 in extended length and 16.988 in compressed length
  • Plastic socket rod and tube connections
  • 8 mm rod diameter and 18 mm tube diameter
  • Direct fit for the power liftgate hatch support on select Ford Explorer models

Product Details

This Stabilus lift support is specified for the rear hatch on 2016-2019 Ford Explorer vehicles with a power liftgate. The gas strut dimensions, socket-style end connections, and force rating are matched to the application to help restore controlled hatch movement and proper liftgate support. Search terms such as Ford Explorer hatch lift support, power liftgate strut, and Stabilus 3C-845370 apply to this OE-style replacement.

Common Issues It Can Help Solve

  • Rear hatch that will not stay open
  • Liftgate that drops too quickly
  • Weak or uneven hatch support
  • Hard-to-lift power liftgate operation
  • Worn gas strut performance on the rear hatch

Installation Notes and Tips

Verify the existing support length, end fittings, and force rating before installation. Match the vehicle application to the rear hatch power liftgate position on the Ford Explorer. Inspect the mounting points and surrounding hardware for wear or damage before replacing the support.

Quality Assurance

Stabilus is a recognized OE supplier of gas springs and lift supports, and this part is built to the listed dimensions and force specification for the stated application.

BrandStabilus
Part Number3C-845370
Y
Y
Body0.709
Compressed Length16.988
Compressed Length431.5
Extended Length24.764
Extended Length629
Force (N)920
Force Lbs207
Hardware KitNO
Rod ConnectionPLASTIC SOCKET
Rod Dia (IN)0.315
Rod Diameter8
Rod End Attachment Dia (IN)0.394
Rod End Attachment Dia (MM)10
Shaft0.315
Shaft ConnectionPLASTIC SOCKET
Tube ConnectionPLASTIC SOCKET
Tube Dia (IN)0.709
Tube Diameter18
Tube End Attach Dia (IN)0.394
Tube End Attach Dia (mm)10

This part fits 4 vehicles. Search below:

YearMakeModelPositionNotes
2019FordExplorerN/AHatch Lift Support - Power Liftgate
2018FordExplorerN/AHatch Lift Support - Power Liftgate
2017FordExplorerN/AHatch Lift Support - Power Liftgate
2016FordExplorerN/AHatch Lift Support - Power Liftgate

* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

This part directly replaces or is cross-referenced with the following part numbers:

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
