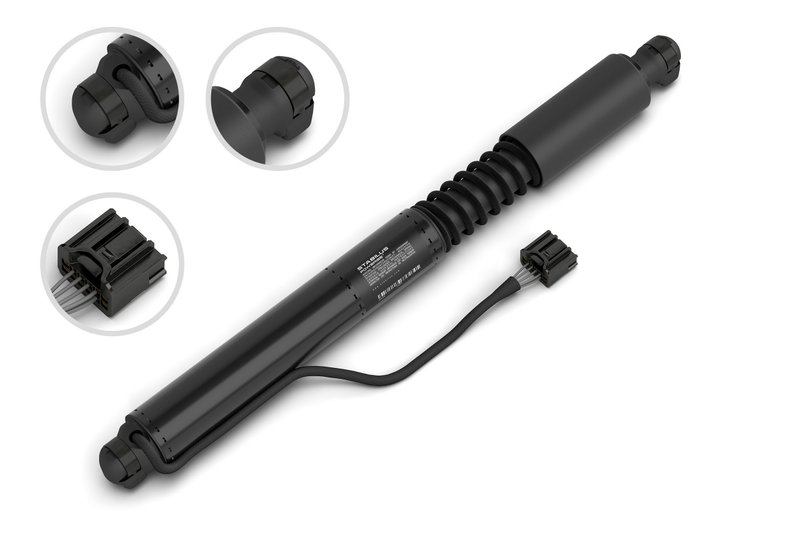

Stabilus 4A-276816 Door Lift Support
| Brand | Stabilus 4A-276816 |
|---|---|
| 10035 | 0.394 |
| 10035 | 10 |
| 10036 | 0.394 |
| 10036 | 10 |
| Compressed Length | 12.67 |
| Compressed Length | 321.8 |
| End 1 Type | Ball socket |
| End 2 Type | Ball socket |
| Type | Electro-mechanical |
| Mounting Hardware Included | No |
| Connector Shape | Rectangular |
| Connector Type | Adapter |
| Extended Length | 14.76 |
| Extended Length | 374.8 |
| End 1 Material | Nylon |
| End 2 Material | Nylon |
| Stroke Length | 2.09 |
| Stroke Length | 53 |
| Connector Gender | Female |
| Wiring Harness Included | Yes |
| Installation Instructions Included | No |
| EXT_Agricultural Equipment | N |
| EXT_Application Specific | Y |
| EXT_CarLight Truck | Y |
| EXT_Engine Specific | N |
| EXT_Heavy Truck | N |
| EXT_High Performance | N |
| EXT_IndustrialOff Highway | N |
| EXT_Marine | N |
| EXT_Medium Truck | N |
| Fits | Tesla · 10 vehicles |
Power liftgate replacement. Engineered for seamless, factory-style operation and dependable performance.
Electro-mechanical design. Delivers automatic opening and closing with integrated safety sensing.
Adapter connector. Includes a wiring harness for straightforward electrical connection.
Cross-references Stabilus 4A-276816, 514112 and 599927 for the same application. See all 5.
Power Liftgate Replacement for Tesla X
Restore automatic liftgate operation with this Stabilus POWERISE electro-mechanical door lift support. Built for the 2016-2025 Tesla X, part number 4A-276816 replaces the power liftgate support assembly with a direct-fit solution for smooth opening, controlled closing, and selectable liftgate height.
Compatible with Tesla X power liftgate applications, this unit uses a rectangular female adapter connector, ball socket ends, and an included wiring harness for the electrical connection. The design follows factory-style dimensions for the Tesla X platform and supports consistent liftgate movement in daily use.
- Fits 2016-2025 Tesla X, N/A
- Electro-mechanical POWERISE liftgate support
- Extended length: 14.76 in. (374.8 mm)
- Compressed length: 12.67 in. (321.8 mm)
- Stroke length: 2.09 in. (53 mm)
- Ball socket ends with nylon end materials
- Rectangular female adapter connector
- Wiring harness included
Detailed Product Overview
The Stabilus 4A-276816 is engineered as a replacement power liftgate support for Tesla X models equipped with POWERISE operation. It is an electro-mechanical unit that opens and closes the liftgate automatically when commanded, and it supports intermediate stopping positions so the opening height can be set to suit garage clearance or loading needs. The integrated sensor system is designed to help prevent improper operation during use.
This part cross-references Monroe Shocks & Struts (e.g., 514112, 599927) for the same application. Search terms such as Tesla X power liftgate support, 2016-2025 Tesla X liftgate actuator replacement, and Stabilus 4A-276816 fitment can help confirm the correct application.
Common Problems This Part Can Address
- Liftgate no longer opens or closes automatically
- Liftgate movement is slow, uneven, or stops before full travel
- Power liftgate height cannot be set or held consistently
- Electrical liftgate support failure on Tesla X POWERISE systems
- Wear-related loss of smooth, factory-style liftgate operation
Installation Notes and Tips
Verify connector shape, end type, and compressed/extended length before installation. This part is application-specific for Tesla X POWERISE systems, so confirm the vehicle’s liftgate configuration and compare the original support to part number 4A-276816 before removal. Installation instructions are not included.
Quality Assurance
Stabilus supplies POWERISE components engineered to match factory-style design standards and durability expectations for power liftgate systems. Part number 4A-276816 is built for dependable operation in Tesla X applications from 2016 through 2025.
| Year | Make | Model | Notes |
|---|---|---|---|
| 2025 | Tesla | X | Powerise |
| 2024 | Tesla | X | Powerise |
| 2023 | Tesla | X | Powerise |
| 2022 | Tesla | X | Powerise |
| 2021 | Tesla | X | Powerise |
| 2020 | Tesla | X | Powerise |
| 2019 | Tesla | X | Powerise |
| 2018 | Tesla | X | Powerise |
| 2017 | Tesla | X | Powerise |
| 2016 | Tesla | X | Powerise |
