OE Quality
60-Day Returns

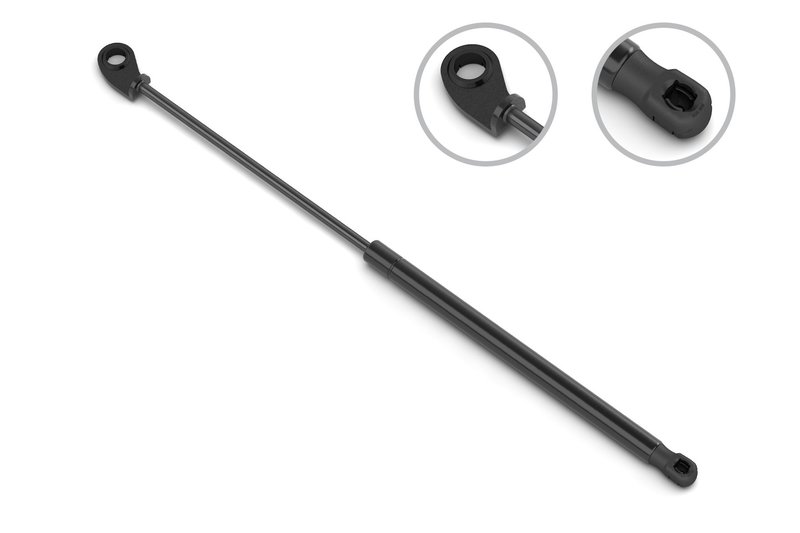

Stabilus 4B-003831 Hood Lift Support - Right
Hood Lift Support for Mitsubishi Diamante
This Stabilus hood lift support is built for the right side of the hood on select Mitsubishi Diamante models. It uses a curved metal blade rod connection and a plastic socket tube connection for a direct OE-style replacement, with 300 N of lift force for controlled hood support.
Key Features
- Brand: Stabilus
- Part number: 4B-003831
- Hood lift support for the body/hood application
- Fits 1997-2004 Mitsubishi Diamante, right
- Extended length: 21.102 in. (536 mm)
- Compressed length: 13.228 in. (336 mm)
- Rod diameter: 0.315 in. (8 mm)
- Tube diameter: 0.709 in. (18 mm)
- Force rating: 300 N / 67 lb
- Rod connection: curved metal blade
- Tube connection: plastic socket
Detailed Description
Stabilus 4B-003831 is a hood lift support for the right side of the hood on 1997-2004 Mitsubishi Diamante models. The gas-charged design provides measured lift assistance and controlled hood movement, while the specified compressed and extended lengths help match the original mounting geometry. If you are replacing a worn hood strut on a Mitsubishi Diamante, this part number 4B-003831 offers the correct fitment details for the right-side hood support application.
This part cross-references Dorman - First Stop C95305 for the same application.
What It Helps Solve
- Hood that drops instead of staying open
- Weak or slow hood lift action
- Uneven hood support on the right side
- Noise or instability from a worn gas strut
- Replacement needs for a failed Mitsubishi Diamante hood support
Installation Notes and Tips
Verify the right-side mounting points, connection style, and length before installation. Compare the old support’s compressed length, extended length, rod diameter, and tube diameter to confirm match-up with the original hardware geometry. Replace only after safely securing the hood in the open position.
Quality Assurance
Stabilus is a recognized OE supplier for gas springs and lift supports, and this hood lift support is built to match the listed application and dimensional specifications for consistent replacement fitment.
| Brand | Stabilus |
|---|---|
| Part Number | 4B-003831 |
| 0.315 | Y |
| Compressed Length | 13.228 |
| Compressed Length | 336 |
| Rod Diameter | 8 |
| 13.228 | Y |
| Tube Diameter | 18 |
| Extended Length | 21.102 |
| Extended Length | 536 |
| Agricultural Equipment | N |
| Body | 0.709 |
| Engine Specific | N |
| Force (N) | 300 |
| Force Lbs | 67 |
| Hardware Kit | No |
| Heavy Truck | N |
| High Performance | N |
| IndustrialOff Highway | N |
| Marine | N |
| Medium Truck | N |
| MotorCycleRV | N |
| NonVehicle Specific | N |
| Personal Watercraft | N |
| Rod Connection | Curved metal blade |
| Rod Dia (IN) | 0.315 |
| Rod End Attachment Dia (IN) | 0.594 |
| Rod End Attachment Dia (MM) | 15.1 |
| Shaft | 0.315 |
| Shaft Connection | Curved metal blade |
| Small Engine | N |
| Snowmobile | N |
This part fits 8 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2004 | Mitsubishi | Diamante | Right | |
| 2003 | Mitsubishi | Diamante | Right | |
| 2002 | Mitsubishi | Diamante | Right | |
| 2001 | Mitsubishi | Diamante | Right | |
| 2000 | Mitsubishi | Diamante | Right | |
| 1999 | Mitsubishi | Diamante | Right | |
| 1998 | Mitsubishi | Diamante | Right | |
| 1997 | Mitsubishi | Diamante | Right |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
