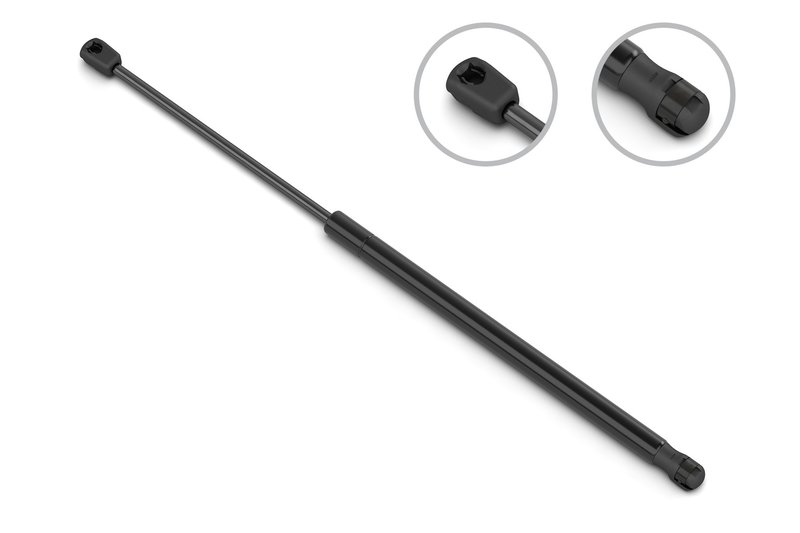

Stabilus 4B-006941 Hatch Lift Support

Overview of Stabilus Gas Spring for Hyundai Tucson

The Stabilus gas spring part number 4B-006941 is designed specifically for Hyundai Tucson models. This gas spring offers precise force and reliable performance to support smooth operation of vehicle components requiring controlled motion.

• Compressed length: 12.717 inches (323 mm)
• Extended length: 20.276 inches (515 mm)
• Rod diameter: 8 mm (0.315 inches)
• Tube diameter: 19 mm
• Force: 585 Newtons (132 lbs)
• Rod connection type: Plastic socket

Technical Details and Specifications

The Stabilus 4B-006941 gas spring features a robust design with a 19 mm tube diameter and an 8 mm rod diameter, providing a balanced strength-to-weight ratio. Its compressed length measures 12.717 inches (323 mm), extending to 20.276 inches (515 mm) when fully deployed. The gas spring delivers a force of 585 Newtons (132 lbs), suitable for applications requiring moderate lifting or dampening force. The rod end uses a plastic socket connection, ensuring secure attachment and smooth articulation.

Applications and Problem Solving

This gas spring is compatible with Hyundai Tucson vehicles and is typically used in supporting hoods, tailgates, or other components requiring controlled opening and closing. It addresses issues such as:

• Difficulty in lifting or holding open vehicle hoods or tailgates
• Unstable or jerky motion during component operation
• Wear or failure of original gas springs causing improper support
• Need for precise force control to prevent damage or injury

Installation Notes and Tips

When installing the Stabilus 4B-006941 gas spring on a Hyundai Tucson, ensure the plastic socket rod connection is properly seated to avoid premature wear. Verify the orientation of the gas spring matches the original equipment to maintain correct force direction. Use appropriate tools to avoid damage to the rod or tube during installation. It is recommended to replace gas springs in pairs for balanced performance.

Quality Assurance and Warranty

Stabilus is a recognized manufacturer of gas springs with stringent quality control standards. While specific warranty details for part number 4B-006941 should be confirmed at the point of purchase, Stabilus products generally come with manufacturer-backed warranties covering defects in materials and workmanship. This ensures reliable performance and durability for Hyundai Tucson applications.
