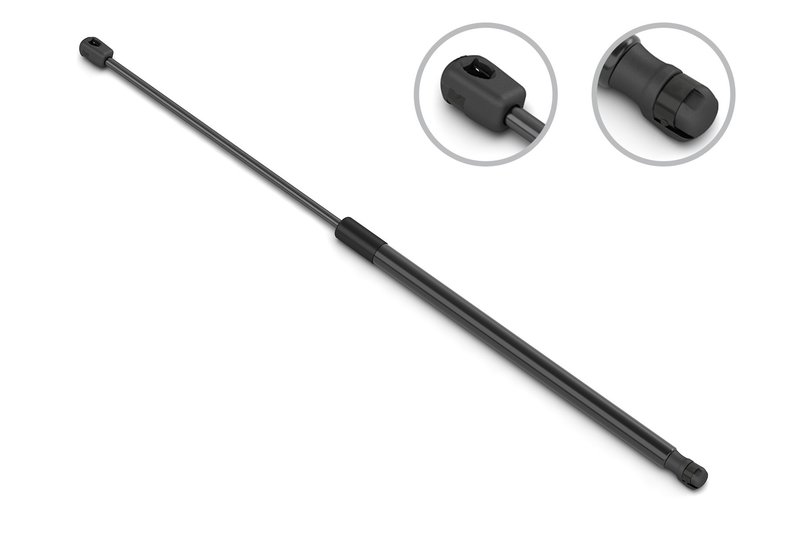

Stabilus 4B-013647 Hatch Lift Support

Overview of Stabilus 4B-013647 Gas Spring for Mazda

The Stabilus 4B-013647 gas spring is engineered to provide reliable support and smooth operation for Mazda vehicles. Designed with precise dimensions and force specifications, this gas spring ensures consistent performance in applications requiring controlled motion and damping.

• Compressed length: 13.189 inches (335 mm)
• Extended length: 20.197 inches (513 mm)
• Rod diameter: 8 mm (0.315 inches)
• Tube diameter: 18 mm
• Force: 335 Newtons (75 lbs)
• Rod connection type: Plastic socket

Technical Specifications and Features

The Stabilus 4B-013647 features a robust design with a rod diameter of 8 mm and a tube diameter of 18 mm, providing a balanced strength-to-weight ratio. Its compressed length of 13.189 inches and extended length of 20.197 inches make it suitable for specific Mazda models requiring precise gas spring dimensions. The force rating of 335 Newtons (75 lbs) ensures adequate support for applications such as hood or trunk lift assistance. The plastic socket rod connection facilitates secure attachment while allowing smooth pivoting action.

Compatible Mazda Models and Applications

This gas spring is compatible with select Mazda vehicles, designed to meet the OEM specifications for reliable fitment and function. The part number 4B-013647 is intended for use in applications where controlled lifting and holding force is necessary, such as hood supports or tailgate dampers on Mazda models. Confirm compatibility with your specific Mazda model before installation to ensure proper fit and performance.

Common Uses and Problem Solving

• Supports hood or trunk lids to prevent sudden closure
• Provides smooth and controlled lifting motion
• Replaces worn or weakened gas springs causing instability
• Eliminates rattling or noise from faulty lift supports
• Restores proper tension and force for vehicle components

Installation Notes and Tips

When installing the Stabilus 4B-013647 gas spring, ensure the vehicle is securely supported and the old gas spring is carefully removed to avoid damage. Align the plastic socket rod connection properly with the mounting points to prevent binding. Lubricate pivot points if necessary and verify the gas spring operates smoothly through its full range of motion. Use appropriate tools and follow Mazda manufacturer guidelines for safe installation.

Quality Assurance and Warranty

Stabilus gas springs are manufactured to meet strict quality standards, ensuring durability and consistent performance. While specific warranty details for part number 4B-013647 may vary, Stabilus typically offers coverage against manufacturing defects. Consult product documentation or authorized sources for warranty information related to this gas spring.
