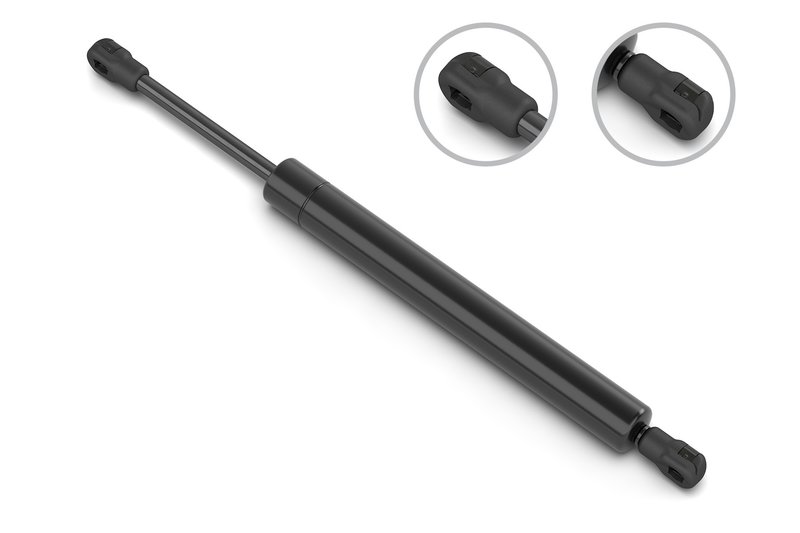

Stabilus 4B-015356 Hatch Lift Support

Overview of Stabilus 4B-015356 Gas Spring for Saab 9-3 and 9-3X

The Stabilus 4B-015356 gas spring is engineered to provide reliable support and smooth operation for your Saab 9-3 and 9-3X models. Designed with precise dimensions and force specifications, this gas spring ensures consistent performance in vehicle applications requiring controlled motion.

• Compressed length: 11.85 inches (301 mm)
• Extended length: 15.709 inches (399 mm)
• Rod diameter: 10 mm (0.394 inches)
• Tube diameter: 28 mm
• Force: 1340 N (301 lbs)
• Rod connection: Plastic socket
• Body diameter: 1.102 inches

Technical Details and Specifications

The Stabilus 4B-015356 gas spring features a robust design with a 10 mm rod diameter and a 28 mm tube diameter, providing a balance of strength and smooth operation. Its compressed length of 11.85 inches (301 mm) and extended length of 15.709 inches (399 mm) make it suitable for specific applications in Saab 9-3 and 9-3X vehicles. The gas spring delivers a force of 1340 Newtons (301 pounds), ensuring adequate support for components requiring controlled lifting or dampening. The rod end uses a plastic socket connection, facilitating secure attachment and ease of installation.

Applications and Problem Solving

• Supports hood or trunk lift mechanisms in Saab 9-3 and 9-3X
• Replaces worn or weakened gas springs causing uneven or difficult lifting
• Restores smooth and controlled motion to vehicle components
• Prevents sudden closures or drops of supported parts
• Improves safety and convenience during vehicle maintenance or loading

Installation Notes and Tips

When installing the Stabilus 4B-015356 gas spring on Saab 9-3 or 9-3X models, ensure the plastic socket connections are properly seated to avoid loosening during operation. Verify the orientation matches the original part to maintain correct force direction. Use appropriate tools to avoid damage to the rod or tube during installation. It is recommended to replace gas springs in pairs to maintain balanced support and consistent performance.

Quality Assurance and Warranty

Stabilus is a recognized manufacturer of gas springs with a focus on durability and precision. The 4B-015356 gas spring is manufactured to meet strict quality standards, ensuring reliable operation in automotive applications. While specific warranty details may vary, Stabilus products typically come with manufacturer-backed warranties covering defects in materials and workmanship. Consult product documentation or authorized sources for exact warranty terms.
