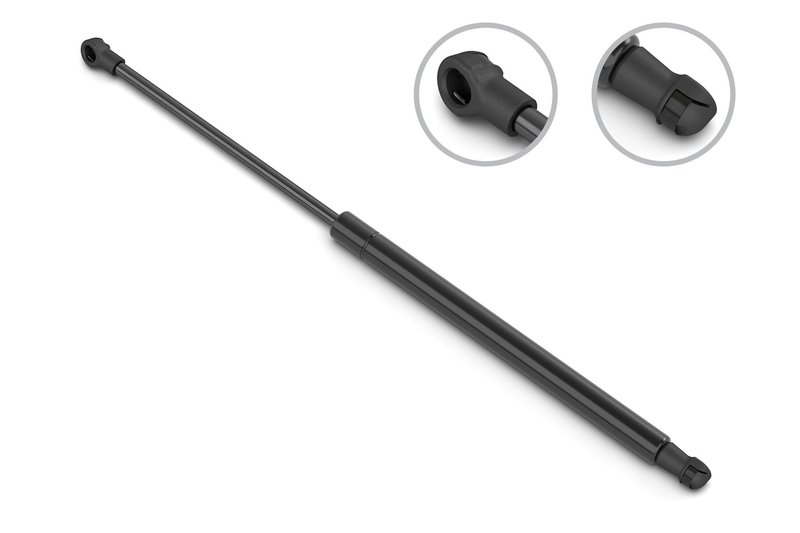

Stabilus 4B-015513 Hatch Lift Support

Overview of Stabilus 4B-015513 Gas Spring for Toyota Prius

The Stabilus 4B-015513 gas spring is engineered to provide reliable support and smooth operation for Toyota Prius components requiring controlled motion. Designed with precise dimensions and force ratings, this gas spring ensures consistent performance tailored to your Prius.

• Compressed length: 299.5 mm (11.791 inches)
• Extended length: 494.5 mm (19.469 inches)
• Rod diameter: 8 mm (0.315 inches)
• Tube diameter: 18 mm
• Force: 445 N (100 lbs)
• Rod connection type: Plastic socket
• Compatible specifically with Toyota Prius models

Technical Specifications and Features

The Stabilus 4B-015513 gas spring features a robust design with an 8 mm rod diameter and an 18 mm tube diameter, providing a balanced strength-to-weight ratio. Its compressed length of 299.5 mm and extended length of 494.5 mm allow for a wide range of motion suitable for various applications within the Toyota Prius. The gas spring delivers a force of 445 Newtons (100 pounds), ensuring smooth and controlled lifting or dampening action. The rod connection utilizes a plastic socket for secure attachment and ease of installation.

Applications and Problem Solving

This gas spring is intended for use in Toyota Prius vehicles where controlled motion and support are required. It is not designed for agricultural, heavy truck, marine, or off-highway applications.

• Supports hood or trunk lift mechanisms in Toyota Prius
• Replaces worn or weak gas springs causing uneven or difficult lifting
• Restores smooth opening and closing of vehicle panels
• Prevents sudden drops or slamming of supported components
• Improves safety and convenience during maintenance or loading

Installation Notes and Tips

When installing the Stabilus 4B-015513 gas spring on a Toyota Prius, ensure the plastic socket rod connection is properly seated to avoid detachment during operation. Verify the orientation matches the original part to maintain correct force direction. Use appropriate tools to avoid damage to the rod or tube during installation. No additional hardware kit is included, so retain existing mounting components if possible.

Quality Assurance and Warranty

Stabilus gas springs are manufactured to meet strict quality standards for durability and performance. While specific warranty details for part number 4B-015513 are not provided, Stabilus products typically undergo rigorous testing to ensure reliability in automotive applications. For best results, use this gas spring exclusively with compatible Toyota Prius models as specified.
