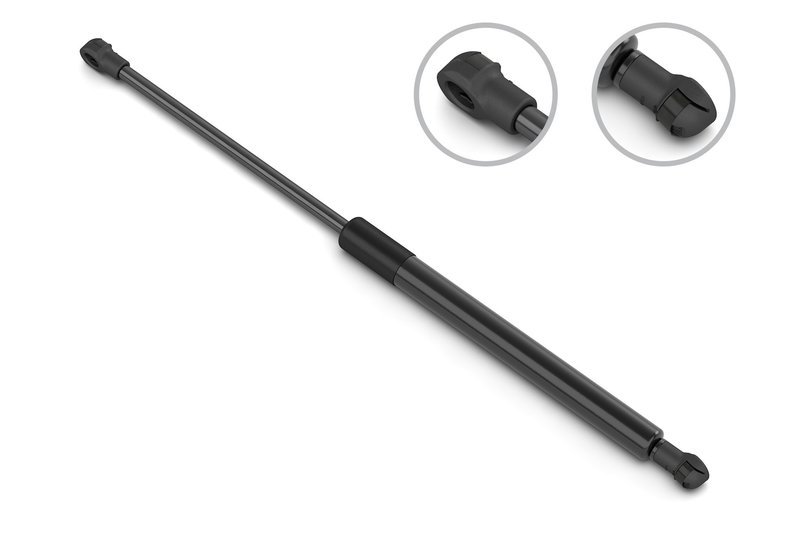

Stabilus 4B-016717 Hood Lift Support

Overview of Stabilus Hood Lift Support for BMW M3

The Stabilus 4B-016717 Hood Lift Support is engineered to provide reliable and consistent hood support for BMW M3 models. Designed with precise dimensions and force specifications, this hood lift support ensures smooth hood operation and secure positioning.

• Compatible with BMW M3 vehicles
• Compressed length: 241 mm (9.488 inches)
• Extended length: 394 mm (15.512 inches)
• Rod diameter: 8 mm (0.315 inches)
• Tube diameter: 18 mm
• Force rating: 200 N (45 lbs)
• Rod connection type: Plastic socket

Technical Details and Specifications

The Stabilus 4B-016717 hood lift support features a rod diameter of 8 mm and a tube diameter of 18 mm, providing a balanced strength-to-weight ratio suitable for the BMW M3 hood. The compressed length measures 241 mm (9.488 inches), while the extended length reaches 394 mm (15.512 inches), allowing for optimal hood lift and support range. With a force rating of 200 Newtons (45 pounds), this gas strut offers consistent pressure to hold the hood securely in place during maintenance or inspection. The rod end attachment uses a plastic socket connection, ensuring smooth articulation and durability under normal operating conditions.

Applications and Problem Solving

• Supports the BMW M3 hood for safe and stable opening
• Prevents hood from slamming shut during engine access
• Replaces worn or weak hood lift supports to restore proper function
• Reduces strain on hood hinges by providing controlled lift force
• Improves safety during vehicle maintenance and inspection

Installation Notes and Tips

When installing the Stabilus 4B-016717 hood lift support on a BMW M3, ensure the hood is securely propped open before removal of the old strut. The plastic socket rod connection requires careful alignment to avoid damage during installation. No additional hardware is included, so retain existing mounting components or source compatible fasteners as needed. Verify the orientation of the strut matches the original to maintain proper force direction and hood operation.

Quality Assurance and Warranty

Stabilus is a recognized manufacturer of automotive gas springs and lift supports, known for consistent quality and durability. While specific warranty details for part number 4B-016717 are not provided, Stabilus products typically meet OEM standards and undergo rigorous testing to ensure reliable performance in BMW M3 applications.
