Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

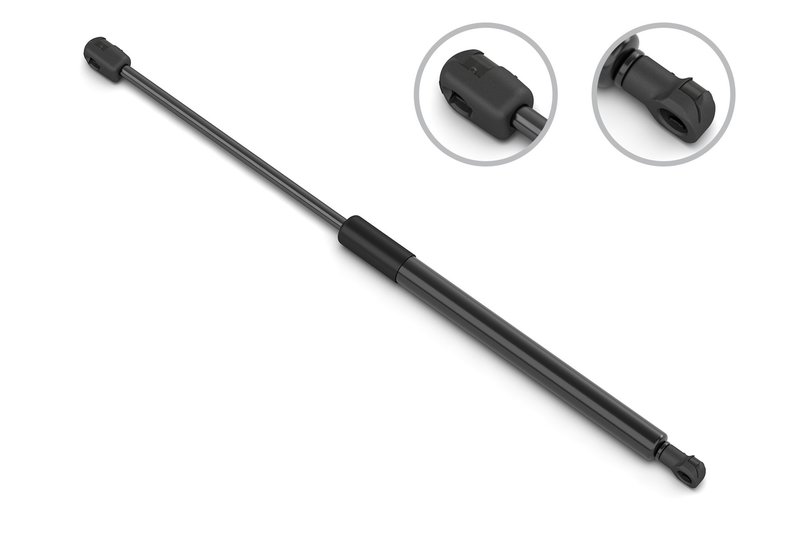

Stabilus 4B-016823
| Brand | Stabilus 4B-016823 |
|---|---|
| 0.315 | Y |
| Material | Y |
| Compressed Length | 10.768 |
| Compressed Length | 273.5 |
| Rod Diameter | 8 |
| Tube Diameter | 19 |
| Extended Length | 17.835 |
| Extended Length | 453 |
| Agricultural Equipment | N |
| Body | 0.748 |
| Engine Specific | N |
| Force (N) | 550 |
| Force Lbs | 124 |
| Hardware Kit | No |
| Heavy Truck | N |
| High Performance | N |
| IndustrialOff Highway | N |
| Marine | N |
| Medium Truck | N |
| MotorCycleRV | N |
| NonVehicle Specific | N |
| Personal Watercraft | N |
| Rod Connection | Plastic socket |
| Rod Dia (IN) | 0.315 |
| Rod End Attachment Dia (IN) | 0.394 |
| Rod End Attachment Dia (MM) | 10 |
| Shaft | 0.315 |
| Shaft Connection | Plastic socket |
| Small Engine | N |
| Snowmobile | N |
| Fits | Volkswagen · 4 vehicles |
Direct replacement. Built for the listed application with Stabilus engineering.
Controlled support. 550 N force rating helps deliver smooth opening and holding action.
Socket-style ends. Plastic socket connections simplify dimensional matching.
Cross-references Lesjofors 8195056, Stabilus 4B-016823 and Tuff Support 613091 for the same application. See all 16.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Product Overview
This Stabilus gas spring is built for direct replacement use on the specified application. It uses plastic socket connections and a 550 N force rating to deliver controlled support and smooth motion. Part number 4B-016823 is listed for the application shown below.
Key Features
- Stabilus replacement gas spring for the listed fitment
- 550 N force rating for controlled lift and support
- Plastic socket rod and tube connections
- Compressed length of 273.5 mm and extended length of 453 mm
- Rod diameter of 8 mm and tube diameter of 19 mm
Detailed Description
Stabilus 4B-016823 is a gas spring specified for 2007-2010 Volkswagen Passat applications. The measured compressed and extended lengths, along with the 8 mm rod diameter and 19 mm tube diameter, help confirm dimensional match for the intended installation. The 550 N force rating supports consistent opening and holding action where a gas strut is required. If you are replacing a worn support on a Volkswagen Passat, this part number 4B-016823 provides a direct-fit replacement option for the listed vehicle range.
What It Is Used For
- Replacing a weak or failed gas spring
- Restoring controlled opening and closing action
- Addressing sagging, dropping, or poor support
- Correcting inconsistent lift force
Installation Notes and Tips
Verify the compressed length, extended length, and socket-style end connections before installation. Compare the existing strut dimensions and attachment style to the specifications for part number 4B-016823 to confirm proper match. Use the fitment data to verify the application on 2007-2010 Volkswagen Passat models before ordering.
Quality Assurance
Stabilus is a recognized supplier of gas springs and support components, and this part is built to the listed dimensional and force specifications for the application shown.
| Year | Make | Model | Body Type | Notes |
|---|---|---|---|---|
| 2010 | Volkswagen | Passat | Wagon | — |
| 2009 | Volkswagen | Passat | Wagon | — |
| 2008 | Volkswagen | Passat | Wagon | — |
| 2007 | Volkswagen | Passat | Wagon | — |
| No rows match your filter. | ||||
