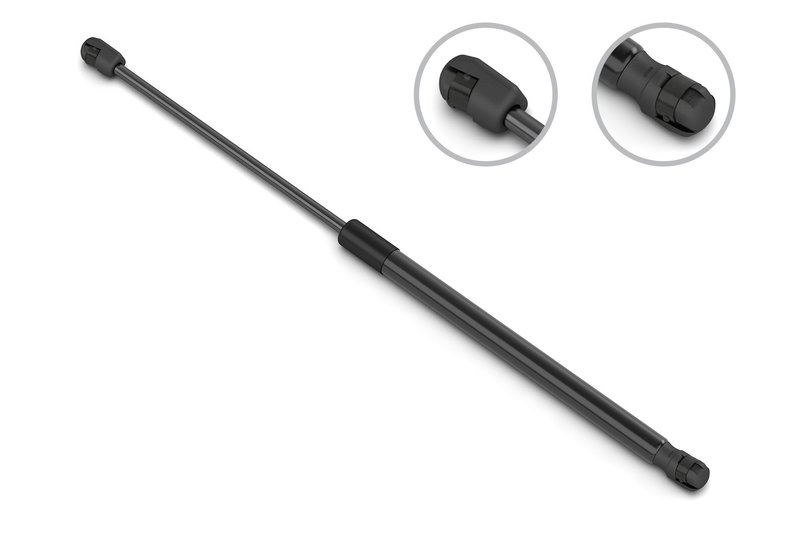

Stabilus 4B-016990 Hatch Lift Support
Stabilus 4B-016990 Gas Spring for Mazda 3
Stabilus 4B-016990 is a gas spring built for controlled lift support on select Mazda 3 applications. It uses plastic socket connections at both ends and delivers 390 N (88 lb) of force for consistent opening and closing action.
Key Features
- Brand: Stabilus
- Part number: 4B-016990
- Extended length: 540 mm (21.26 in)
- Compressed length: 319 mm (12.559 in)
- Force rating: 390 N / 88 lb
- Rod diameter: 8 mm (0.315 in)
- Tube diameter: 18 mm (0.709 in)
- Plastic socket rod and tube connections
- Fits 2004-2009 Mazda 3
Detailed Description
This Stabilus gas spring is specified for 2004-2009 Mazda 3 models and is identified by part number 4B-016990. With a 540 mm extended length, 319 mm compressed length, and 390 N force rating, it is sized to provide controlled support for the application it was engineered for. The plastic socket attachment style on both ends helps match the original connection layout used on the vehicle.
This part cross-references AMS Automotive 6371 and Wix 46371 for the same application. If you are replacing a worn lift support on a Mazda 3, 4B-016990 is the reference number to verify against the original unit before ordering.
Common Replacement Reasons
- Lift support no longer holds the panel, hatch, or lid in position
- Opening action feels weak, uneven, or slow
- Closing action drops too quickly
- Original gas spring shows loss of pressure or reduced support
- Replacement needed for a 2004-2009 Mazda 3 lift support application
Installation Notes and Tips
Confirm the compressed length, extended length, force rating, and socket-style end fittings before installation. Compare the original support to 4B-016990 to verify rod diameter, tube diameter, and attachment style match the vehicle. Install with the vehicle-supported component secured so the panel cannot fall during removal.
Quality Assurance
Stabilus is a recognized OE supplier of gas springs and lift supports, and this part is built to match the specified application data for 2004-2009 Mazda 3 models.
| Brand | Stabilus |
|---|---|
| Part Number | 4B-016990 |
| Y | |
| Y | |
| Body | 0.709 |
| Compressed Length | 12.559 |
| Compressed Length | 319 |
| Extended Length | 21.26 |
| Extended Length | 540 |
| Force (N) | 390 |
| Force Lbs | 88 |
| Hardware Kit | NO |
| Rod Connection | PLASTIC SOCKET |
| Rod Dia (IN) | 0.315 |
| Rod Diameter | 8 |
| Rod End Attachment Dia (IN) | 0.394 |
| Rod End Attachment Dia (MM) | 10 |
| Shaft | 0.315 |
| Shaft Connection | PLASTIC SOCKET |
| Tube Connection | PLASTIC SOCKET |
| Tube Dia (IN) | 0.709 |
| Tube Diameter | 18 |
| Tube End Attach Dia (IN) | 0.394 |
| Tube End Attach Dia (mm) | 10 |
This part fits 6 vehicles. Search below:
| Year | Make | Model | Body Type | Position | Notes |
|---|---|---|---|---|---|
| 2009 | Mazda | 3 | Hatchback | N/A | |
| 2008 | Mazda | 3 | Hatchback | N/A | |
| 2007 | Mazda | 3 | Hatchback | N/A | |
| 2006 | Mazda | 3 | Hatchback | N/A | |
| 2005 | Mazda | 3 | Hatchback | N/A | |
| 2004 | Mazda | 3 | Hatchback | N/A |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
