OE Quality
60-Day Returns

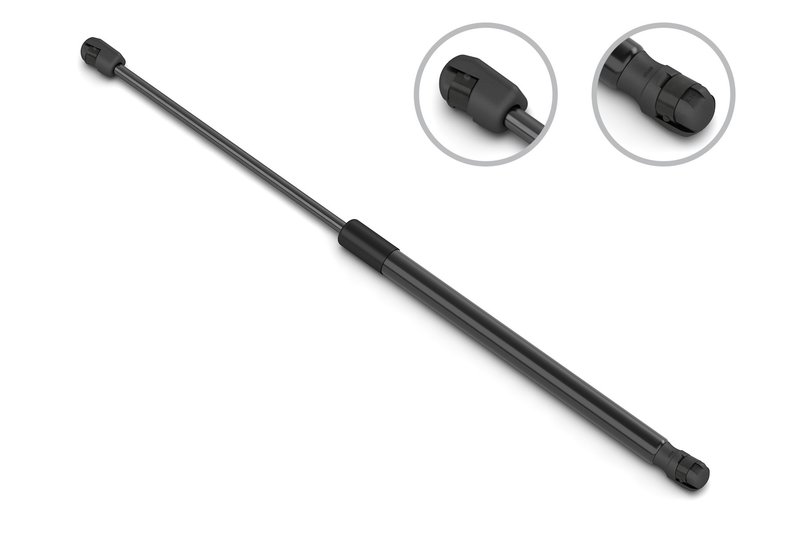

Stabilus 4B-024284 Hatch Lift Support
Stabilus Lift Support for Audi Q7
This Stabilus lift support is built for controlled opening and holding force on the rear liftgate of select Audi Q7 models. With a 630 N (142 lb) force rating and OE-style plastic socket connections, it is a direct-fit replacement for the specified application.
Fits 2007-2015 Audi Q7, N/A, Exc.Power Liftgate. Part number 4B-024284 is also referenced in OE and aftermarket catalogs for this application.
Key Features
- Brand: Stabilus
- Part number: 4B-024284
- Force rating: 630 N / 142 lb
- Extended length: 498 mm (19.606 in)
- Compressed length: 300.5 mm (11.831 in)
- Rod diameter: 8 mm (0.315 in)
- Tube diameter: 22 mm (0.866 in)
- Plastic socket rod and tube connections
- Fits Audi Q7 models from 2007-2015, excluding power liftgate applications
Product Details
Stabilus 4B-024284 is a gas-charged lift support engineered to provide the correct opening assist and holding force for the rear liftgate on the Audi Q7. The measured body dimensions, stroke length, and socket-style end fittings support a precise OE-style replacement for vehicles that use this configuration. If your Audi Q7 liftgate is dropping, feels heavy, or no longer stays open properly, this part number is the correct fitment to verify against the original support.
Common Problems This Part Can Help Solve
- Liftgate that will not stay open
- Rear hatch that drops too quickly
- Weak or uneven liftgate support force
- Worn gas strut causing poor opening assist
- Noisy or inconsistent liftgate operation
Installation Notes and Tips
Confirm the original part number, length, and end connection style before installation. This support uses plastic socket connections at both ends and is specified for Audi Q7 vehicles without the power liftgate option. Compare the compressed and extended lengths to the removed unit to ensure proper application match. Replace supports in pairs only when both sides are worn and the vehicle design calls for matched operation.
Quality Assurance
Stabilus is a recognized OE supplier for gas springs and lift supports, and this part is built to match the listed application specifications for fit and function. Cross-reference part numbers include URO 4L0827552E and Tuff Support 612466 for the same application.
| Brand | Stabilus |
|---|---|
| Part Number | 4B-024284 |
| Y | |
| Y | |
| Body | 0.866 |
| Compressed Length | 11.831 |
| Compressed Length | 300.5 |
| Extended Length | 19.606 |
| Extended Length | 498 |
| Force (N) | 630 |
| Force Lbs | 142 |
| Hardware Kit | NO |
| Rod Connection | PLASTIC SOCKET |
| Rod Dia (IN) | 0.315 |
| Rod Diameter | 8 |
| Rod End Attachment Dia (IN) | 0.394 |
| Rod End Attachment Dia (MM) | 10 |
| Shaft | 0.315 |
| Shaft Connection | PLASTIC SOCKET |
| Tube Connection | PLASTIC SOCKET |
| Tube Dia (IN) | 0.866 |
| Tube Diameter | 22 |
| Tube End Attach Dia (IN) | 0.394 |
| Tube End Attach Dia (mm) | 10 |
This part fits 9 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2015 | Audi | Q7 | N/A | Exc.Power Liftgate |
| 2014 | Audi | Q7 | N/A | Exc.Power Liftgate |
| 2013 | Audi | Q7 | N/A | Exc.Power Liftgate |
| 2012 | Audi | Q7 | N/A | Exc.Power Liftgate |
| 2011 | Audi | Q7 | N/A | Exc.Power Liftgate |
| 2010 | Audi | Q7 | N/A | Exc.Power Liftgate |
| 2009 | Audi | Q7 | N/A | Exc.Power Liftgate |
| 2008 | Audi | Q7 | N/A | Exc.Power Liftgate |
| 2007 | Audi | Q7 | N/A | Exc.Power Liftgate |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
