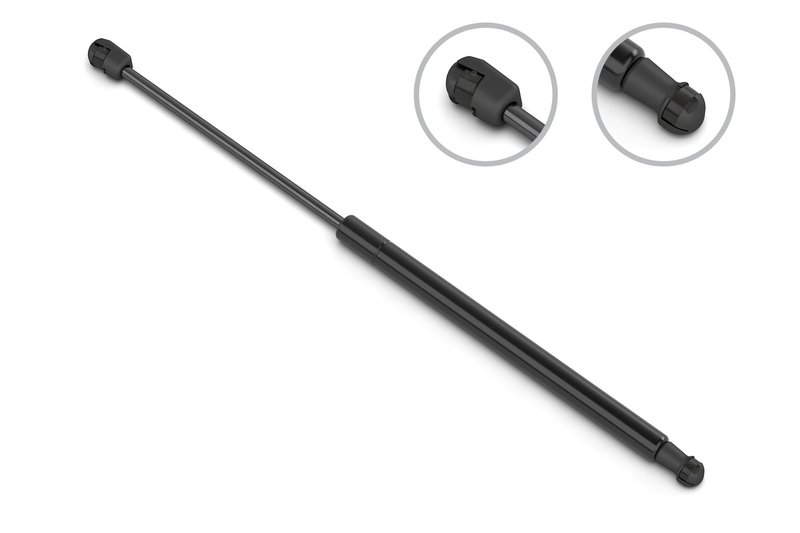

Stabilus 4B-028493 Back Glass Lift Support

Overview of Stabilus Back Glass Lift Support 4B-028493

The Stabilus Back Glass Lift Support 4B-028493 is designed specifically for Ford Escape and Mercury Mariner models. This lift support provides reliable assistance in lifting and holding the back glass securely in place, ensuring smooth operation and safety.

• Compatible with Ford Escape and Mercury Mariner vehicles
• Compressed length: 11.988 inches (304.5 mm)
• Extended length: 18.268 inches (464 mm)
• Rod diameter: 8 mm (0.315 inches)
• Tube diameter: 18 mm
• Force rating: 145 Newtons (33 lbs)
• Rod connection type: Plastic socket
• Part number: 4B-028493

Technical Details and Specifications

This back glass lift support features a compressed length of approximately 12 inches and extends to over 18 inches, providing the necessary range of motion for the back glass on compatible vehicles. The rod diameter measures 8 mm, while the tube diameter is 18 mm, ensuring a sturdy and durable construction. The lift support exerts a force of 145 Newtons (33 lbs), which is sufficient to hold the back glass firmly in place during operation. The rod end attachment uses a plastic socket connection, designed for secure and reliable fitment without the need for additional hardware kits.

Applications and Problem Solving

• Supports smooth lifting and lowering of back glass on Ford Escape and Mercury Mariner
• Prevents back glass from slamming shut or falling unexpectedly
• Replaces worn or weak lift supports to restore proper function
• Eliminates rattling or loose back glass issues
• Ensures safety and convenience when accessing rear cargo areas

Installation Notes and Tips

Installation of the Stabilus 4B-028493 back glass lift support requires no additional hardware as it comes ready to install with plastic socket rod connections. Ensure the vehicle is parked on a level surface and the back glass is supported during replacement. Remove the old lift support by detaching the rod ends from their mounting points, then align and snap the new lift support into place. Verify smooth operation and secure attachment before use.

Quality Assurance and Warranty

Stabilus is a recognized manufacturer of automotive lift supports, known for consistent quality and durability. This back glass lift support is engineered to meet OEM specifications for Ford Escape and Mercury Mariner models. While specific warranty details are not provided, Stabilus products typically come with manufacturer-backed quality assurance to ensure reliable performance and longevity.
