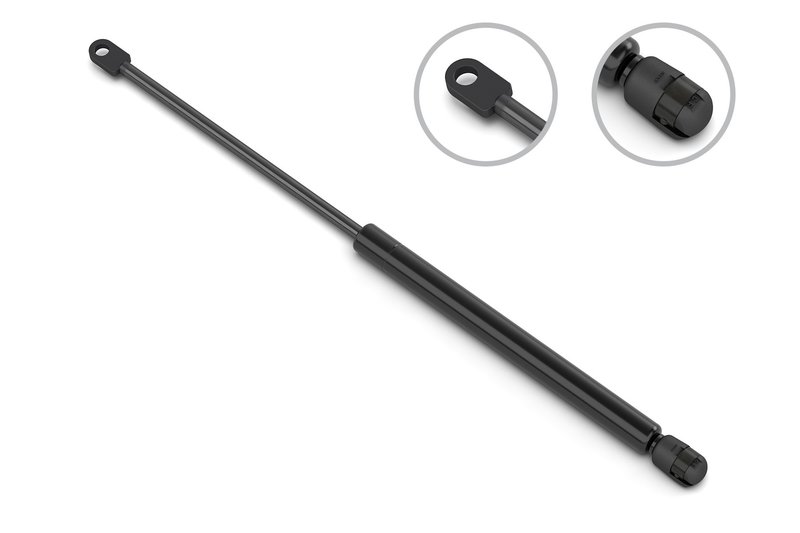

Stabilus 4B-029420 Hatch Lift Support

Overview of Stabilus 4B-029420 Gas Spring for Volkswagen Vanagon

The Stabilus 4B-029420 gas spring is engineered for reliable performance in Volkswagen Vanagon vehicles. Designed to provide consistent force and smooth operation, this gas spring supports various applications requiring controlled motion and damping.

• Compressed length: 11.575 inches (294 mm)
• Extended length: 19.882 inches (505 mm)
• Rod diameter: 8 mm (0.315 inches)
• Tube diameter: 18 mm
• Force: 590 Newtons (133 lbs)
• Rod connection type: Metal blade
• Body diameter: 0.709 inches

Technical Specifications and Features

The Stabilus 4B-029420 gas spring features a robust metal blade rod connection and a rod diameter of 8 mm, ensuring durability and precise fitment. With a compressed length of 11.575 inches and an extended length of nearly 20 inches, it offers a wide range of motion suitable for Volkswagen Vanagon applications. The force rating of 590 Newtons (133 lbs) provides adequate support for lifting and holding components securely in place.

Compatible Applications for Volkswagen Vanagon

This gas spring is specifically compatible with Volkswagen Vanagon models, making it a suitable replacement part for OEM gas springs in these vehicles. It is not designed for agricultural, heavy truck, marine, or motorcycle use, focusing solely on automotive applications within the Vanagon lineup.

• Supports hatchback or rear door lift assistance
• Replaces worn or weakened gas springs in Vanagon
• Improves smooth opening and closing of vehicle panels
• Maintains proper tension and positioning of components

Installation Notes and Tips

When installing the Stabilus 4B-029420 gas spring on a Volkswagen Vanagon, ensure the metal blade rod connection is securely attached to the mounting points. Verify the orientation matches the original part to maintain proper function. Use appropriate tools to avoid damage to the rod or tube during installation. No additional hardware kit is included, so retain existing mounting components if possible.

Quality Assurance and Warranty Information

Stabilus gas springs are manufactured to meet strict quality standards for durability and performance. While specific warranty details for part number 4B-029420 are not provided, Stabilus products typically come with manufacturer-backed warranties covering defects in materials and workmanship. For precise warranty terms, consult Stabilus or authorized distributors.
