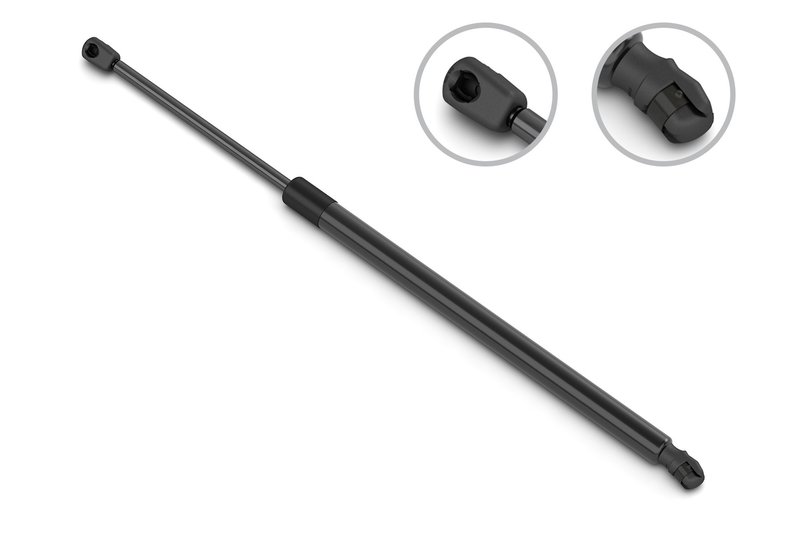

Stabilus 4B-039244 Hood Lift Support
| Brand | Stabilus 4B-039244 |
|---|---|
| 0.315 | Y |
| Compressed Length | 11.93 |
| Compressed Length | 303 |
| Thread Direction | Y |
| Rod Diameter | 8 |
| Tube Diameter | 18 |
| Extended Length | 19.98 |
| Extended Length | 507.5 |
| Agricultural Equipment | N |
| Body | 0.709 |
| Engine Specific | N |
| Force (N) | 130 |
| Force Lbs | 29 |
| Hardware Kit | No |
| Heavy Truck | N |
| High Performance | N |
| IndustrialOff Highway | N |
| Marine | N |
| Medium Truck | N |
| MotorCycleRV | N |
| NonVehicle Specific | N |
| Personal Watercraft | N |
| Rod Connection | Plastic socket |
| Rod Dia (IN) | 0.315 |
| Rod End Attachment Dia (IN) | 0.394 |
| Rod End Attachment Dia (MM) | 10 |
| Shaft | 0.315 |
| Shaft Connection | Plastic socket |
| Small Engine | N |
| Snowmobile | N |
| Fits | Chevrolet · 3 vehicles |
OE-style replacement. Direct-fit hood lift support for the specified application.
Controlled hood support. 130 N force rating helps deliver smooth opening and holding.
Compact gas spring design. Plastic socket connections and matched dimensions for fit accuracy.
Cross-references Stabilus 4B-039244, Tuff Support 612346 and 039244 for the same application. See all 7.
Hood Lift Support for Camaro
This Stabilus hood lift support is a direct-fit replacement for the hood support application on select Chevrolet Camaro models. It uses a 130 N gas spring force and plastic socket connections to provide controlled hood movement and consistent support.
Key Features
- Direct-fit hood lift support for the specified application
- 130 N / 29 lb force rating for controlled hood opening and holding
- Plastic socket rod and tube connections
- Extended length of 507.5 mm and compressed length of 303 mm
- Stabilus part number 4B-039244
Detailed Description
Built for the hood support application on the Chevrolet Camaro, this Stabilus lift support is engineered to match the required length and force characteristics for smooth operation. The 4B-039244 part number identifies the correct replacement when you need a hood strut with the specified compressed and extended dimensions, along with plastic socket end connections. This part cross-references Monroe Shocks & Struts (e.g., 039244, 600387) for the same application.
Stabilus is widely recognized for gas spring and lift support engineering, and this hood support follows that approach with a compact body, 8 mm rod diameter, and 18 mm tube diameter. If you are replacing a worn hood strut on a Chevrolet Camaro, 4B-039244 provides the fitment and force profile needed for normal hood operation.
What It Helps Solve
- Hood that will not stay open
- Weak or slow hood lift action
- Uneven hood support during service access
- Loss of controlled hood movement
Installation Notes and Tips
Verify the compressed length, extended length, and socket-style end connections before installation. Compare the existing support to part number 4B-039244 to confirm the correct application for your Chevrolet Camaro. Hardware kit is not included.
Quality Assurance
Stabilus manufactures gas springs and lift supports used in OE-style replacement applications, with attention to force rating and dimensional accuracy for proper hood support.
| Year | Make | Model | Notes |
|---|---|---|---|
| 2018 | Chevrolet | Camaro | — |
| 2017 | Chevrolet | Camaro | — |
| 2016 | Chevrolet | Camaro | — |
