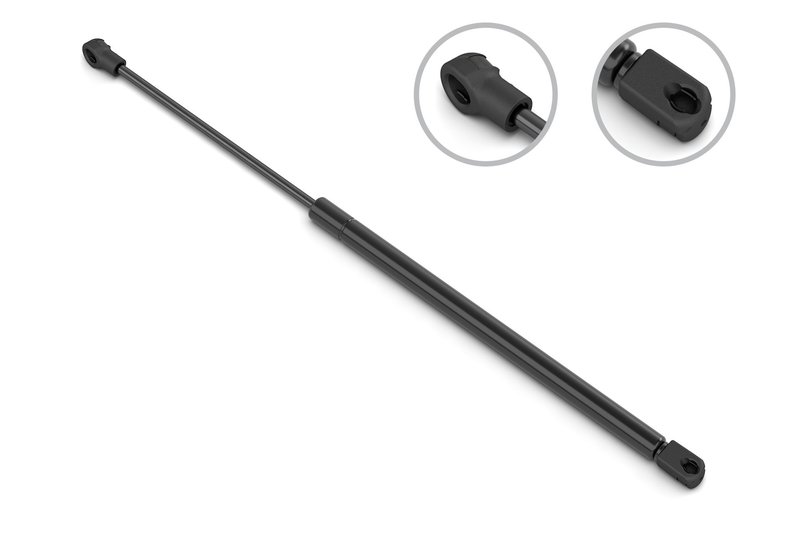

Stabilus 4B-042816 Trunk Lid Lift Support
| Brand | Stabilus 4B-042816 |
|---|---|
| 10035 | 0.394 |
| 10035 | 10 |
| 10036 | 0.315 |
| 10036 | 8 |
| Compressed Length | 15.11 |
| Compressed Length | 384 |
| End 1 Type | Ball socket |
| End 2 Type | Ball socket |
| Type | Gas |
| Maximum Force | 13 |
| Maximum Force | 60 |
| Mounting Hardware Included | No |
| Cylinder Outside Diameter | 0.591 |
| Cylinder Outside Diameter | 15 |
| Extended Length | 20.02 |
| Extended Length | 508.5 |
| End 1 Material | Nylon |
| End 2 Material | Nylon |
| Stroke Length | 124.5 |
| Stroke Length | 4.91 |
| Inner Shaft Diameter | 0.236 |
| Inner Shaft Diameter | 6 |
| EXT_Agricultural Equipment | N |
| EXT_Application Specific | Y |
| EXT_CarLight Truck | Y |
| EXT_Engine Specific | N |
| EXT_Heavy Truck | N |
| EXT_High Performance | N |
| EXT_IndustrialOff Highway | N |
| EXT_Marine | N |
| Fits | Chevrolet · 7 vehicles |
Application-specific design. Engineered for controlled trunk lid motion with tuned damping performance.
Ball socket ends. Nylon end materials support a secure, precise connection.
Lift-O-Mat technology. Uses hydraulic damping and a seal-guide system for consistent operation.
Cross-references Carlson 7085, Stabilus 4B-042816 and 042816 for the same application. See all 8.
Overview
The Stabilus 4B-042816 trunk lid lift support is an application-specific gas strut built for controlled opening and closing action. It uses a ball socket end design and a tuned force profile to deliver smooth motion for the trunk lid on compatible vehicles.
Key Features
- Application-specific Lift-O-Mat design for precise motion control
- Gas-charged support with hydraulic damping technology
- Ball socket ends with nylon end materials
- Extended length of 20.02 in. and compressed length of 15.11 in.
- Maximum force rating of 13 lb for controlled lift assistance
- Stabilus part number 4B-042816
Detailed Description
Stabilus Lift-O-Mat supports are engineered with custom oil channeling, a labyrinth piston design, and a precision seal-guide system to maintain consistent damping performance. This trunk lid lift support is built to match the requirements of the application, helping the trunk open smoothly and stay controlled during use. It is a direct-fit style replacement for the specified vehicle application and is identified by part number 4B-042816.
This part cross-references Carlson 7085 for the same application.
What It Helps Solve
- Weak or failing trunk lid support
- Trunk lid that drops too quickly
- Uneven or inconsistent opening motion
- Reduced lift assistance from worn gas struts
Installation Notes
Fits 2014-2020 Chevrolet Impala, N/A. Verify the ball socket end style and length specifications before installation. Mounting hardware is not included. Part number 4B-042816 should be matched to the vehicle application before replacement.
Quality Assurance
Stabilus Lift-O-Mat products use high-grade materials and application-specific engineering for reliable operation. The 4B-042816 is built around a precision damping design intended to deliver consistent performance in the specified application.
| Year | Make | Model | Notes |
|---|---|---|---|
| 2020 | Chevrolet | Impala | — |
| 2019 | Chevrolet | Impala | — |
| 2018 | Chevrolet | Impala | — |
| 2017 | Chevrolet | Impala | — |
| 2016 | Chevrolet | Impala | — |
| 2015 | Chevrolet | Impala | — |
| 2014 | Chevrolet | Impala | — |
