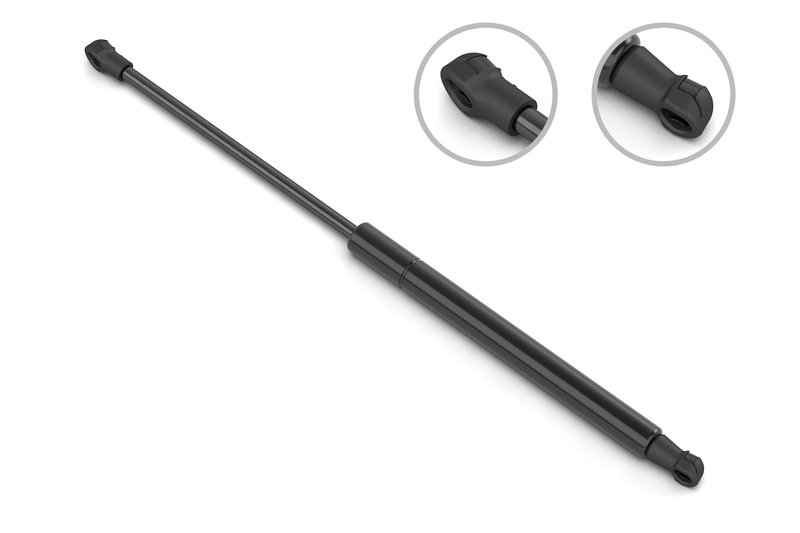

Stabilus 4B-0825MV Hatch Lift Support

Overview of Stabilus 4B-0825MV Gas Spring for Volkswagen Passat

The Stabilus 4B-0825MV gas spring is engineered to provide reliable support and smooth operation for Volkswagen Passat components requiring controlled motion. Designed with precise dimensions and force ratings, this gas spring ensures consistent performance in automotive applications.

• Compressed length: 299 mm (11.772 inches)
• Extended length: 514 mm (20.236 inches)
• Rod diameter: 8 mm (0.315 inches)
• Tube diameter: 19 mm
• Force: 500 N (112 lbs)
• Rod end attachment diameter: 10 mm (0.394 inches)
• Rod connection type: Plastic socket

Technical Details and Specifications

The Stabilus 4B-0825MV gas spring features a compact body diameter of 0.748 inches, optimized for applications requiring moderate force and precise control. Its rod and shaft connections utilize plastic sockets to reduce wear and provide smooth articulation. With a force rating of 500 Newtons, this gas spring is suitable for supporting or counterbalancing components in the Volkswagen Passat, such as trunk lids, hoods, or other hinged parts.

Compatible Applications for Volkswagen Passat

This gas spring is specifically compatible with Volkswagen Passat models, offering a direct replacement option for OEM parts requiring the 4B-0825MV specification. It is not designed for agricultural, heavy truck, marine, or off-highway use, focusing solely on passenger vehicle applications.

• Supports smooth opening and closing of trunk lids or hoods
• Maintains consistent force for component stability
• Reduces wear on hinges and mounting points
• Prevents sudden closures or drops of supported parts
• Improves safety and ease of use for vehicle maintenance

Installation Notes and Tips

When installing the Stabilus 4B-0825MV gas spring on a Volkswagen Passat, ensure the mounting points match the rod end attachment diameter of 10 mm. Use appropriate tools to avoid damaging the plastic socket connections. Verify the orientation of the gas spring to maintain proper force direction and avoid premature wear. No additional hardware kit is included, so retain original mounting components or source compatible fasteners.

Quality Assurance and Warranty Information

Stabilus gas springs are manufactured to meet strict quality standards, ensuring durability and consistent performance. While specific warranty details for part number 4B-0825MV may vary, Stabilus products typically come with manufacturer-backed warranties covering defects in materials and workmanship. Consult official Stabilus documentation or authorized distributors for precise warranty terms.
