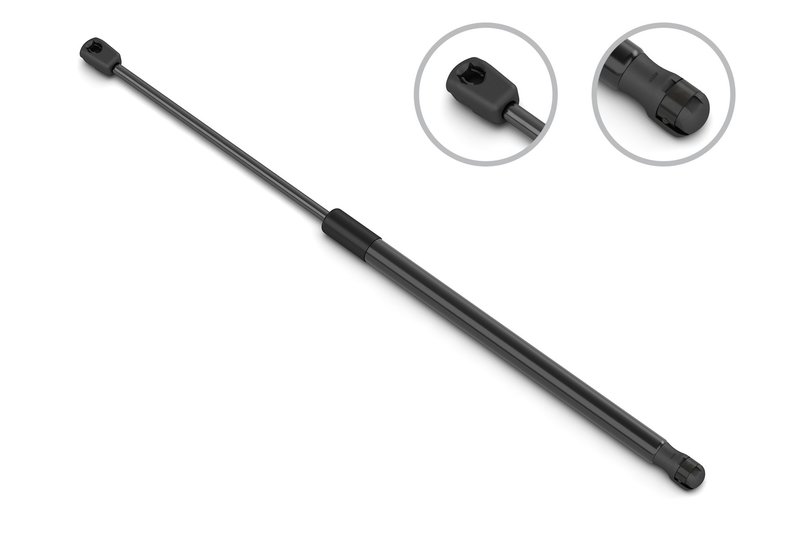

Stabilus 4B-106634 Hood Lift Support
| Brand | Stabilus 4B-106634 |
|---|---|
| 0.315 | Y |
| Compressed Length | 11.378 |
| Compressed Length | 289 |
| Thread Direction | Y |
| Rod Diameter | 8 |
| Tube Diameter | 18 |
| Extended Length | 17.008 |
| Extended Length | 432 |
| Agricultural Equipment | N |
| Body | 0.709 |
| Engine Specific | N |
| Force (N) | 370 |
| Force Lbs | 83 |
| Hardware Kit | No |
| Heavy Truck | N |
| High Performance | N |
| IndustrialOff Highway | N |
| Marine | N |
| Medium Truck | N |
| MotorCycleRV | N |
| NonVehicle Specific | N |
| Personal Watercraft | N |
| Rod Connection | Plastic socket |
| Rod Dia (IN) | 0.315 |
| Rod End Attachment Dia (IN) | 0.394 |
| Rod End Attachment Dia (MM) | 10 |
| Shaft | 0.315 |
| Shaft Connection | Plastic socket |
| Small Engine | N |
| Snowmobile | N |
| Fits | Kia · 4 vehicles |
Direct replacement. Built for the hood support application with a precise fit profile.
Plastic socket ends. Secure connection style for the rod and tube attachment points.
370 N force. Provides controlled hood movement with an 83 lb rating.
Cross-references Stabilus 4B-106634, 81161-F6000 and 81161F6000 for the same application. See all 7.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Overview
This Stabilus hood lift support is built for the hood on compatible Kia Cadenza applications. It uses a plastic socket connection at both ends and is specified at 370 N (83 lb) of force for controlled hood movement. Part number 4B-106634 is a direct-fit replacement for the listed application.
Key Features
- Stabilus hood lift support for body-mounted hood service
- Plastic socket rod and tube connections for a secure attachment style
- 370 N / 83 lb force rating for controlled hood support
- Extended length of 432 mm and compressed length of 289 mm
- Part number 4B-106634 for easy identification
Detailed Description
Use this hood lift support when the original support no longer holds the hood in place or no longer moves smoothly through its travel. The Stabilus 4B-106634 is engineered with an 8 mm rod diameter, 18 mm tube diameter, and plastic socket ends to match the listed fitment. For Kia Cadenza owners, this part number 4B-106634 provides a direct replacement for the hood support application shown in the fitment data.
Common Issues It Can Address
- Hood that drops instead of staying open
- Weak or inconsistent hood support force
- Slow or uneven hood lift action
- Worn support that no longer matches the original travel length
Installation Notes and Tips
Verify the existing support length and end connection style before installation. Replace the support only after safely securing the hood, then confirm smooth opening and closing after installation. This part does not list included hardware, so reuse or replacement of mounting components should be confirmed separately.
Quality Assurance
Stabilus is a recognized supplier of gas spring and lift support components. Part number 4B-106634 is specified for the listed Kia Cadenza fitment and is built to the stated force and dimensional requirements.
| Year | Make | Model | Notes |
|---|---|---|---|
| 2020 | Kia | Cadenza | — |
| 2019 | Kia | Cadenza | — |
| 2018 | Kia | Cadenza | — |
| 2017 | Kia | Cadenza | — |
