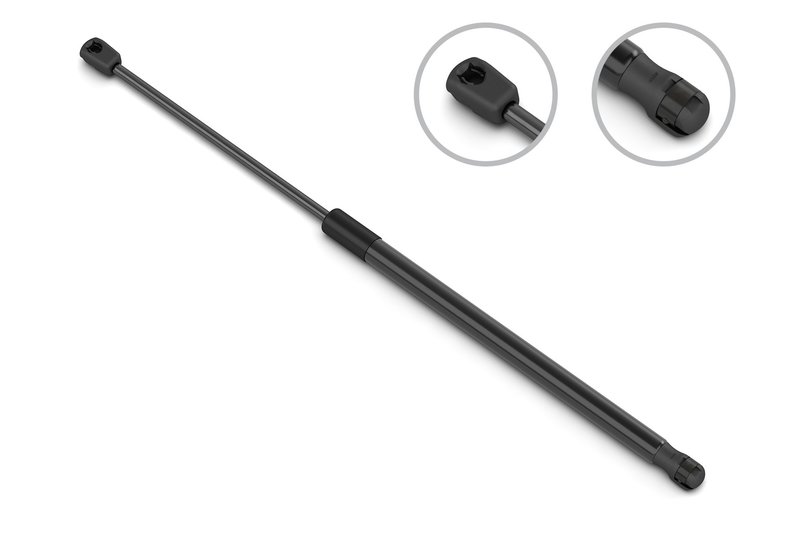

Stabilus 4B-106882 Hood Lift Support

Hood Lift Support for Controlled Opening

The Stabilus Lift-O-Mat hood lift support is engineered for smooth, controlled hood movement on select Chevrolet full-size trucks and pickups. Built with dynamic damping, this gas strut helps the hood open with consistent resistance and close with a gentle, controlled stop.

Fits 2019-2025 Chevrolet Silverado 1500, standard hood and Fits 2019-2025 Chevrolet Cheyenne, standard hood, with application-specific tuning for OE-style motion control. Part number 4B-106882 is designed for direct replacement use on supported hood applications.

Key Features

• Gas-type hood lift support with dynamic damping technology
• Ball socket ends with nylon end materials
• Extended length: 15.6 in. (396.5 mm)
• Compressed length: 9.9 in. (252.5 mm)
• Stroke length: 5.7 in. (144 mm)
• Maximum force: 53 lb (235 N)
• Cylinder outside diameter: 0.709 in. (18 mm)
• Inner shaft diameter: 0.315 in. (8 mm)
• Application-specific design for standard hood use

Detailed Description

Stabilus 4B-106882 uses Lift-O-Mat dynamic damping, which regulates gas flow through a precision groove profile in the tube wall. That design helps control extension speed and creates a gradual stop near the end of travel, reducing abrupt hood movement. This hood lift support is built for consistent operation on supported Chevrolet Silverado 1500 and Chevrolet Cheyenne applications, where smooth opening and stable hold are important for everyday service access.

This part cross-references Tuff Support 612587 for the same application.

Common Problems This Part Can Help Solve

• Hood drops too quickly when opened
• Hood will not stay raised securely
• Uneven or jerky hood movement
• Excessive effort needed to lift the hood
• Hard closing action with a sudden stop

Installation Notes and Tips

Verify the vehicle’s hood application before ordering, since this part is listed for standard hood configurations only. Inspect the ball socket mounting points for wear or damage before installation, and confirm the compressed and extended lengths match the original support. For best results, replace a worn support before it loses pressure completely.

Quality Assurance

Stabilus is known for OE-focused motion control components, and the Lift-O-Mat line is engineered for precise damping and repeatable hood support performance. Part number 4B-106882 is built to deliver controlled motion for the listed Chevrolet applications.
