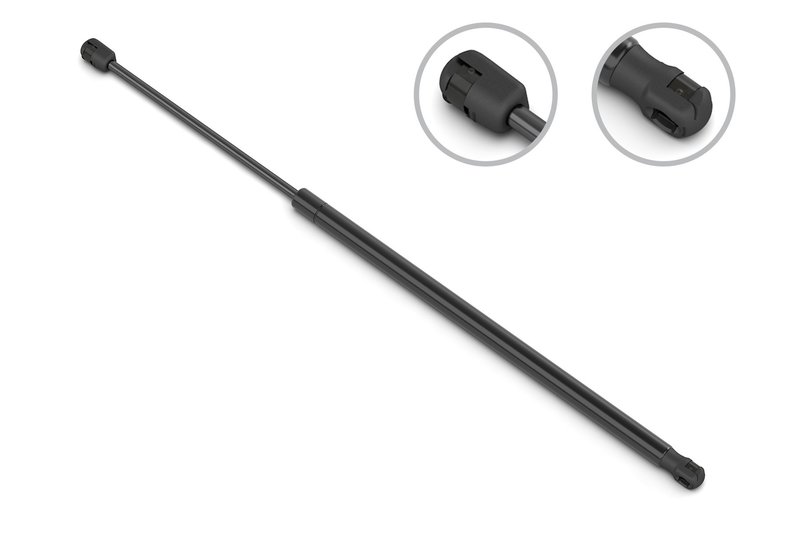

Stabilus 4B-109502 Hatch Lift Support

Overview of Stabilus Gas Spring 4B-109502 for Ford and Mercury Vehicles

The Stabilus gas spring part number 4B-109502 is designed for select Ford and Mercury models, including the Mustang, Capri, Cougar, Grand Marquis, LTD, and Marquis. This gas spring offers precise force and reliable performance for applications requiring controlled motion and support.

• Compressed length: 11.437 inches (290.5 mm)
• Extended length: 19.587 inches (497.5 mm)
• Rod diameter: 8 mm (0.315 inches)
• Tube diameter: 18 mm
• Force: 369 Newtons (83 lbs)
• Rod end attachment diameter: 10 mm (0.394 inches)
• Rod connection type: Plastic socket

Technical Details and Specifications

This Stabilus gas spring features a compressed length of 11.437 inches and extends to 19.587 inches, providing a stroke length suitable for various automotive applications. The rod diameter measures 8 mm, while the tube diameter is 18 mm, ensuring a balanced strength-to-weight ratio. The gas spring exerts a force of 369 Newtons (83 lbs), making it appropriate for supporting hoods, trunks, or other components on Ford Mustang, Mercury Cougar, and related models. The rod end uses a plastic socket connection with a 10 mm diameter, facilitating straightforward installation and secure attachment.

Compatible Vehicles and Applications

This gas spring is compatible with multiple Ford and Mercury vehicles, specifically:

• Ford Mustang
• Ford Capri
• Mercury Cougar
• Mercury Grand Marquis
• Ford LTD
• Mercury Marquis

It is designed for non-engine specific applications and is not intended for heavy truck, marine, or industrial off-highway use.

Common Uses and Problem Solving

• Supports hood or trunk lids to prevent sudden closure
• Replaces worn or weak gas springs causing improper lift or hold
• Restores smooth opening and closing motion on compatible Ford and Mercury models
• Eliminates rattling or instability in supported panels
• Provides consistent force for reliable component positioning

Installation Notes and Tips

• Ensure the gas spring matches the original part number 4B-109502 for proper fitment
• Verify rod end attachment diameter and connection type before installation
• Use appropriate tools to avoid damage to the plastic socket rod connection
• Install with the rod end facing downward to prolong gas spring life
• Check for smooth operation after installation and adjust if necessary

Quality Assurance and Warranty

Stabilus gas springs are manufactured to meet strict quality standards, ensuring durability and consistent performance. While specific warranty details for part number 4B-109502 are not provided here, Stabilus products typically come with manufacturer-backed warranties covering defects in materials and workmanship. For precise warranty information, consult the product documentation or authorized Stabilus distributors.
