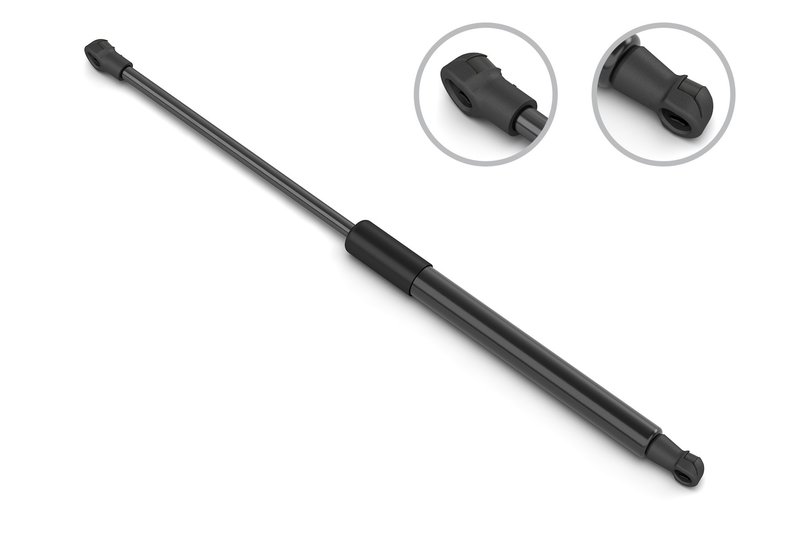

Stabilus 4B-136715 Hatch Lift Support
Stabilus 4B-136715 Gas Spring for Toyota Prius
Stabilus 4B-136715 is a gas spring built for specific Toyota Prius and Prius Plug-In applications. It uses plastic socket connections and OE-style dimensions to match the original lift support setup on the vehicle.
- Force rating: 450 N / 101 lb
- Extended length: 19.823 in (503.5 mm)
- Compressed length: 12.382 in (314.5 mm)
- Rod diameter: 0.315 in (8 mm)
- Tube diameter: 0.709 in (18 mm)
- Rod and tube connections: plastic socket
- Stabilus part number: 4B-136715
Fitment Details
Fits 2010-2015 Toyota Prius, N/A.
Fits 2012-2015 Toyota Prius Plug-In, N/A.
This part cross-references Tuff Support 612714 for the same application.
Product Overview
Stabilus 4B-136715 is specified for Toyota Prius and Toyota Prius Plug-In models that use a gas-charged support with plastic socket ends. The measured compressed and extended lengths, along with the 450 N force rating, help ensure the support opens and holds the panel with the correct resistance for the application. If you are replacing a worn lift support on a 2010-2015 Toyota Prius or a 2012-2015 Toyota Prius Plug-In, this part number provides a direct-fit reference for the original configuration.
Common Problems This Part Addresses
- Rear or hatch panel that drops instead of staying open
- Weak or slow lift support action
- Uneven opening effort compared with the original part
- Loss of gas pressure in the existing support
- Noise or binding from a worn socket-style connection
Installation Notes and Tips
Verify the rod and tube connection style before installation, since this unit uses plastic socket ends. Compare the compressed length, extended length, rod diameter, and tube diameter to the original support on the vehicle before removal. For Toyota Prius and Prius Plug-In applications, confirm the mounting points and orientation match the existing gas spring so the replacement seats correctly.
Quality Assurance
Stabilus is a recognized OE supplier of gas springs and lift supports, and part number 4B-136715 follows the dimensional and force specifications listed for this application. Use the vehicle fitment and measurements above to confirm the correct replacement for your Toyota Prius or Toyota Prius Plug-In.
| Brand | Stabilus |
|---|---|
| Part Number | 4B-136715 |
| Y | |
| Y | |
| Body | 0.709 |
| Compressed Length | 12.382 |
| Compressed Length | 314.5 |
| Extended Length | 19.823 |
| Extended Length | 503.5 |
| Force (N) | 450 |
| Force Lbs | 101 |
| Hardware Kit | NO |
| Rod Connection | PLASTIC SOCKET |
| Rod Dia (IN) | 0.315 |
| Rod Diameter | 8 |
| Rod End Attachment Dia (IN) | 0.394 |
| Rod End Attachment Dia (MM) | 10 |
| Shaft | 0.315 |
| Shaft Connection | PLASTIC SOCKET |
| Tube Connection | PLASTIC SOCKET |
| Tube Dia (IN) | 0.709 |
| Tube Diameter | 18 |
| Tube End Attach Dia (IN) | 0.394 |
| Tube End Attach Dia (mm) | 10 |
This part fits 10 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2015 | Toyota | Prius | N/A | |
| 2015 | Toyota | Prius Plug-In | N/A | |
| 2014 | Toyota | Prius | N/A | |
| 2014 | Toyota | Prius Plug-In | N/A | |
| 2013 | Toyota | Prius | N/A | |
| 2013 | Toyota | Prius Plug-In | N/A | |
| 2012 | Toyota | Prius | N/A | |
| 2012 | Toyota | Prius Plug-In | N/A | |
| 2011 | Toyota | Prius | N/A | |
| 2010 | Toyota | Prius | N/A |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
