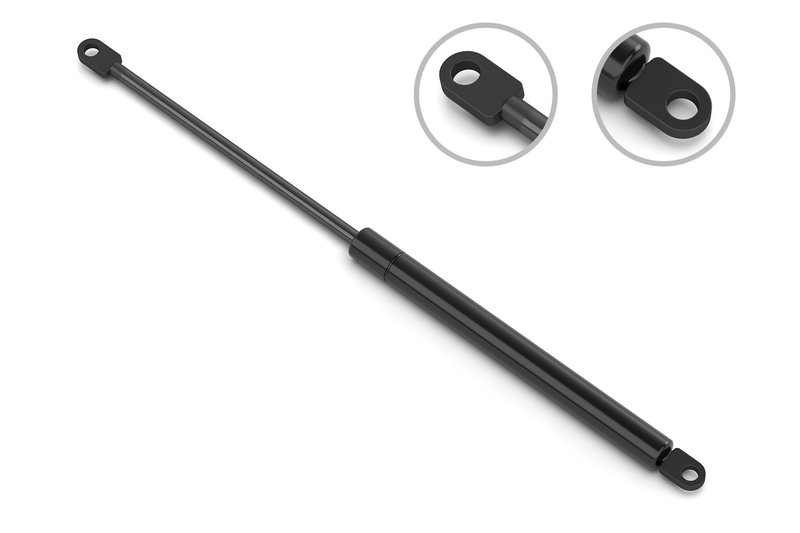

Stabilus 4B-1462BW Hood Lift Support

Overview of Stabilus Hood Lift Support 4B-1462BW

The Stabilus Hood Lift Support 4B-1462BW is engineered to provide reliable hood support for select BMW models. Designed for durability and consistent performance, this hood lift support ensures smooth hood operation and secure positioning.

• Compatible with BMW 524td, 528e, 533i, 535i, 535is, and M5 models
• Compressed length: 11.516 inches (292.5 mm)
• Extended length: 17.421 inches (442.5 mm)
• Rod diameter: 6 mm (0.236 inches)
• Tube diameter: 15 mm
• Force rating: 380 Newtons (85 lbs)
• Rod connection type: Metal blade
• Non-engine specific design

Technical Details and Specifications

This hood lift support from Stabilus features a compressed length of 11.516 inches and extends up to 17.421 inches, providing ample range for hood opening and closing. The rod diameter measures 6 mm, paired with a 15 mm tube diameter, ensuring structural integrity and resistance to wear. With a force rating of 380 Newtons (85 lbs), it offers sufficient lift support for the hood weight of compatible BMW vehicles. The metal blade rod connection enhances durability and secure attachment during operation.

Compatible BMW Models and Fitment

The Stabilus 4B-1462BW hood lift support is specifically designed for use with BMW 524td, 528e, 533i, 535i, 535is, and M5 models. This part is not engine-specific but tailored to the body and hood requirements of these vehicles, ensuring proper fit and function.

Common Applications and Problem Solving

• Supports smooth and controlled hood lifting and lowering
• Prevents hood from slamming shut unexpectedly
• Replaces worn or weak hood lift supports to restore proper hood operation
• Eliminates difficulty in holding the hood open during maintenance
• Reduces risk of hood damage due to improper support

Installation Notes and Tips

Installation of the Stabilus 4B-1462BW hood lift support requires removal of the old lift support and secure attachment of the new unit using the existing mounting points. The metal blade rod connection should be aligned carefully to ensure proper engagement. No additional hardware kit is included, so retain original mounting components. It is recommended to verify the compressed and extended lengths during installation to confirm correct fitment.

Quality Assurance and Warranty

Stabilus is a recognized manufacturer of automotive lift supports, known for consistent quality and durability. While specific warranty details for part number 4B-1462BW are not provided, Stabilus products typically meet OEM standards and undergo rigorous testing to ensure reliable performance in BMW 524td, 528e, 533i, 535i, 535is, and M5 vehicles.
