Home› Body > Hatch› Stabilus 4B-1492RV Hatch Lift Support
Stabilus 4B-1492RV Hatch Lift SupportOE Quality 60-Day Returns
Part #: 4B-1492RV

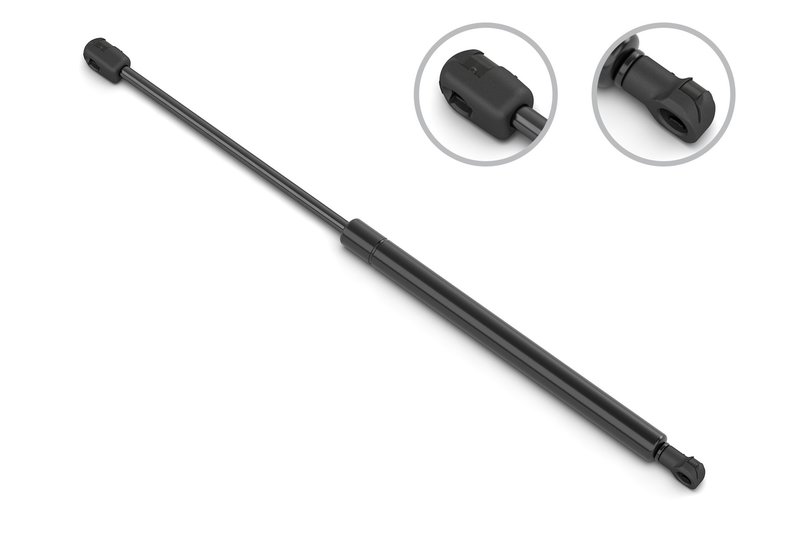

Stabilus 4B-1492RV Hatch Lift Support

6 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$27.98Free Shipping
Free ShippingNo Cost to Continental U.S.
Free Returns*Wrong fit? No cost
60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
In Stock · Ready To Ship Most orders ship same-day if ordered before 1pm CST.
OE Direct Replacement — Bolt-on fit, no modifications needed
Fitment: Hyundai, Santa Fe
Easy Returns — Return within 60 days for a full refund
Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? See all Hatch Lift Support options

Stabilus 4B-1492RV Gas Spring for Hyundai Santa Fe

The Stabilus 4B-1492RV is a gas spring built for controlled lift and support on the 2001-2006 Hyundai Santa Fe. With OE-style dimensions and a 550 N force rating, it is specified for applications that need smooth opening, holding, and closing action.

Key Features

  • Brand: Stabilus
  • Part number: 4B-1492RV
  • Force rating: 550 N / 124 lb
  • Extended length: 21.929 in (557 mm)
  • Compressed length: 13.248 in (336.5 mm)
  • Rod diameter: 0.315 in (8 mm)
  • Tube diameter: 0.748 in (19 mm)
  • Rod and tube connections: plastic socket
  • Rod end and tube end attachment diameter: 0.394 in (10 mm)

Detailed Description

This Stabilus gas spring is engineered around the listed dimensions and connection style to match the original support geometry used on the Hyundai Santa Fe. The 4B-1492RV uses plastic socket ends and a 550 N force rating, making it a direct replacement choice for liftgate, hatch, hood, or similar support applications where the original strut has lost pressure or no longer holds position. Fits 2001-2006 Hyundai Santa Fe, N/A.

This part cross-references Dayco 86109 for the same application.

What It Helps Fix

  • Weak or failing lift support that no longer stays open
  • Slow, uneven, or uncontrolled opening motion
  • Drooping panels that are difficult to hold in position
  • Loss of gas pressure in an aging support strut
  • Noise or binding caused by worn support hardware interfaces

Installation Notes and Tips

Verify the compressed length, extended length, rod diameter, tube diameter, and socket-style end fittings before installation. Compare the original support to the 4B-1492RV to confirm the 550 N force rating and attachment dimensions match the vehicle’s existing setup. For best results, replace supports in matched condition when the opposite side shows similar wear.

Quality Assurance

Stabilus is a recognized OE supplier for gas springs and lift supports, and this part is built to the listed dimensional and force specifications for consistent fit and function. Part number 4B-1492RV is also referenced in aftermarket catalogs for the 2001-2006 Hyundai Santa Fe application.

BrandStabilus
Part Number4B-1492RV
Y
Y
Body0.748
Compressed Length13.248
Compressed Length336.5
Extended Length21.929
Extended Length557
Force (N)550
Force Lbs124
Hardware KitNO
Rod ConnectionPLASTIC SOCKET
Rod Dia (IN)0.315
Rod Diameter8
Rod End Attachment Dia (IN)0.394
Rod End Attachment Dia (MM)10
Shaft0.315
Shaft ConnectionPLASTIC SOCKET
Tube ConnectionPLASTIC SOCKET
Tube Dia (IN)0.748
Tube Diameter19
Tube End Attach Dia (IN)0.394
Tube End Attach Dia (mm)10

This part fits 6 vehicles. Search below:

YearMakeModelPositionNotes
2006HyundaiSanta FeN/A
2005HyundaiSanta FeN/A
2004HyundaiSanta FeN/A
2003HyundaiSanta FeN/A
2002HyundaiSanta FeN/A
2001HyundaiSanta FeN/A

* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

This part directly replaces or is cross-referenced with the following part numbers:

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
