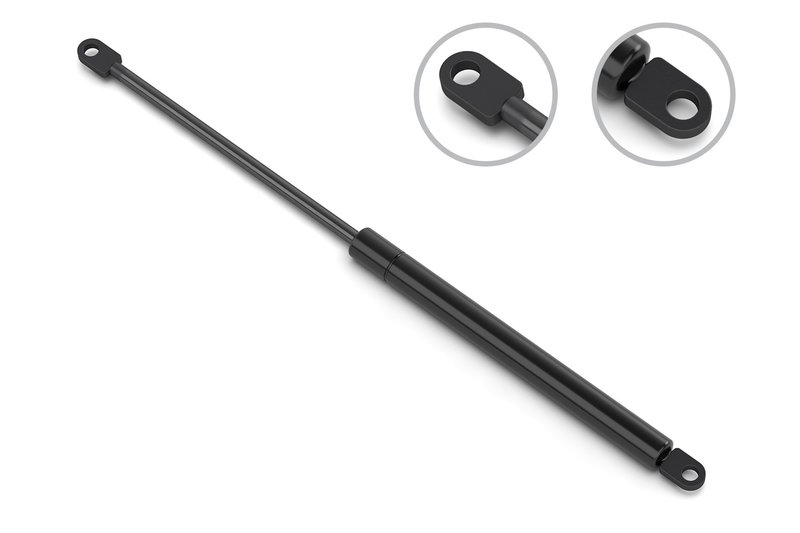

Stabilus 4B-1513BN Hood Lift Support

Overview of Stabilus Hood Lift Support 4B-1513BN

The Stabilus hood lift support 4B-1513BN is designed specifically for BMW 735i models, providing reliable and consistent hood support. Engineered to precise specifications, this hood lift support ensures smooth operation and secure positioning of the vehicle's hood.

• Compatible with BMW 735i
• Part number: 4B-1513BN
• Compressed length: 11.634 inches (295.5 mm)
• Extended length: 19.685 inches (500 mm)
• Rod diameter: 8 mm (0.315 inches)
• Tube diameter: 18 mm
• Force: 230 Newtons (52 lbs)
• Rod connection type: Metal blade
• Does not include hardware kit

Technical Specifications and Features

This hood lift support features a compressed length of 11.634 inches (295.5 mm) and extends up to 19.685 inches (500 mm), providing ample range for hood movement. The rod diameter measures 8 mm (0.315 inches), while the tube diameter is 18 mm, ensuring durability and strength. The force rating of 230 Newtons (52 lbs) offers sufficient lift support for the BMW 735i hood. The rod end attachment uses a metal blade connection, which enhances stability and secure fitment during operation.

Application and Compatibility

The Stabilus 4B-1513BN hood lift support is engineered for use with BMW 735i vehicles. It is not designed for agricultural equipment, heavy trucks, motorcycles, or marine applications. This part is engine-independent and intended solely for body hood support, making it a direct replacement for the original equipment on compatible BMW models.

• Supports smooth hood opening and closing
• Prevents hood from slamming or falling unexpectedly
• Maintains hood position during maintenance or inspection
• Replaces worn or failing hood lift supports
• Improves safety when accessing engine bay

Installation Notes and Tips

Installation of the Stabilus 4B-1513BN hood lift support requires no additional hardware kit, so ensure existing mounting points and clips are intact. Use proper tools to remove the old lift support and carefully align the metal blade rod connection during installation. Verify the compressed and extended lengths match the original part to ensure proper fitment. It is recommended to replace lift supports in pairs to maintain balanced hood operation.

Quality Assurance and Warranty

Stabilus is a recognized manufacturer of automotive lift supports, known for precision engineering and consistent quality. While this product does not include a hardware kit, it meets OEM specifications for fit and function on BMW 735i models. Warranty coverage details should be confirmed with the distributor or manufacturer, as it may vary by region.
