OE Quality
60-Day Returns

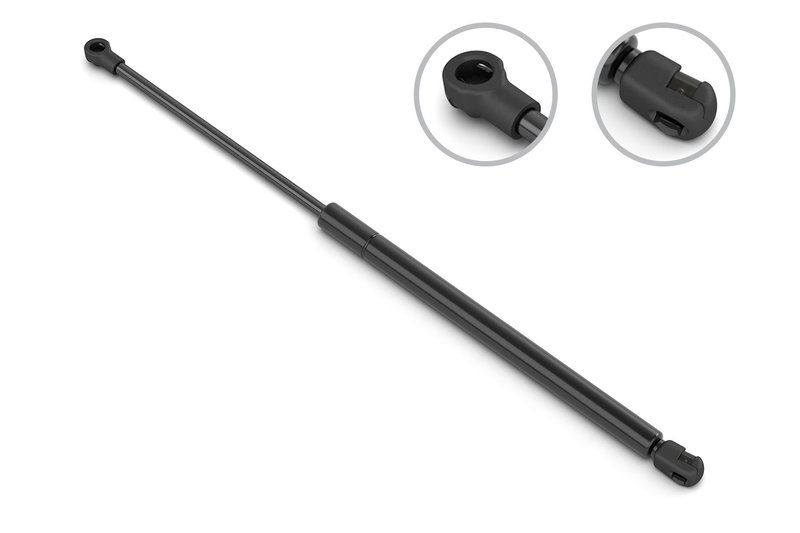

Stabilus 4B-1518QJ
OE-Style Gas Strut for Toyota Echo and Yaris
Stabilus 4B-1518QJ is a gas spring built for controlled lift support and consistent holding force. With a 245 N output and compact 300 mm compressed length, it matches the dimensions needed for specific Toyota hatchback and subcompact applications.
Fits 2004-2005 Toyota Echo, N/A. Fits 2004-2005 Toyota Yaris, N/A. This part cross-references Tuff Support 612375 for the same application.
Key Features
- Brand: Stabilus
- Part number: 4B-1518QJ
- Force rating: 245 N / 55.08 lb
- Compressed length: 300 mm (11.811 in)
- Extended length: 502.5 mm (19.783 in)
- Rod diameter: 8 mm
- Tube diameter: 18 mm
- Plastic socket rod and tube connections
Detailed Description
Stabilus 4B-1518QJ is an OE-style gas strut specified for 2004-2005 Toyota Echo and 2004-2005 Toyota Yaris applications. The 245 N force rating, 8 mm rod diameter, and 18 mm tube diameter support controlled motion in the original mounting geometry, while the plastic socket ends provide the connection style used on the listed vehicles. The part number 4B-1518QJ is also commonly referenced in interchange listings for related OE replacement searches.
What It Helps Address
- Weak or failing lift support that no longer holds position
- Hatch, lid, or panel movement that feels heavy or uncontrolled
- Slow or uneven opening and closing action
- Noise or instability caused by worn gas spring support
- Replacement needs for Toyota Echo and Toyota Yaris OE-style fitment
Installation Notes and Tips
Verify compressed length, extended length, force rating, and socket-style end fittings before installation. Compare the original support to Stabilus 4B-1518QJ to confirm the mounting orientation and overall dimensions match the vehicle. For best results, replace only with the exact fitment listed for 2004-2005 Toyota Echo and 2004-2005 Toyota Yaris.
Quality Assurance
Stabilus is a recognized supplier of gas spring and lift support components, and this part is built to match the listed OE-style dimensions and force specification for the confirmed applications.
| Brand | Stabilus |
|---|---|
| Part Number | 4B-1518QJ |
| 0.315 | Y |
| Compressed Length | 11.811 |
| Compressed Length | 300 |
| Thread Direction | Y |
| Rod Diameter | 8 |
| Tube Diameter | 18 |
| Extended Length | 19.783 |
| Extended Length | 502.5 |
| Agricultural Equipment | N |
| Body | 0.709 |
| Engine Specific | N |
| Force (N) | 245 |
| Force Lbs | 55.08 |
| Hardware Kit | No |
| Heavy Truck | N |
| High Performance | N |
| IndustrialOff Highway | N |
| Marine | N |
| Medium Truck | N |
| MotorCycleRV | N |
| NonVehicle Specific | N |
| Personal Watercraft | N |
| Rod Connection | Plastic socket |
| Rod Dia (IN) | 0.315 |
| Rod End Attachment Dia (IN) | 0.394 |
| Rod End Attachment Dia (MM) | 10 |
| Shaft | 0.31496062992126 |
| Shaft Connection | Plastic socket |
| Small Engine | N |
| Snowmobile | N |
This part fits 4 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2005 | Toyota | Echo | N/A | |
| 2005 | Toyota | Yaris | N/A | |
| 2004 | Toyota | Echo | N/A | |
| 2004 | Toyota | Yaris | N/A |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
