Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.
Stabilus 4B-155856
| Brand | Stabilus 4B-155856 |
|---|---|
| 0.315 | Y |
| Compressed Length | 11.850 |
| Compressed Length | 301 |
| Thread Direction | Y |
| Rod Diameter | 8 |
| Tube Diameter | 19 |
| Extended Length | 19.488 |
| Extended Length | 495 |
| Agricultural Equipment | N |
| Body | 0.748 |
| Engine Specific | N |
| Force (N) | 420 |
| Force Lbs | 94 |
| Hardware Kit | No |
| Heavy Truck | N |
| High Performance | N |
| IndustrialOff Highway | N |
| Marine | N |
| Medium Truck | N |
| MotorCycleRV | N |
| NonVehicle Specific | N |
| Personal Watercraft | N |
| Rod Connection | Plastic socket |
| Rod Dia (IN) | 0.315 |
| Rod End Attachment Dia (IN) | 0.394 |
| Rod End Attachment Dia (MM) | 10 |
| Shaft | 0.315 |
| Shaft Connection | Plastic socket |
| Small Engine | N |
| Snowmobile | N |
| Fits | Audi · 10 vehicles |
Controlled support. 420 N force rating helps deliver smooth, consistent lift assistance.
Direct-style fit. Plastic socket connections match the specified attachment design.
Dimension-specific replacement. 301 mm compressed and 495 mm extended lengths support accurate matching.
Cross-references Stabilus 4B-155856, 8W9 827 552 C and 8W9 827 552 E for the same application. See all 15.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Overview

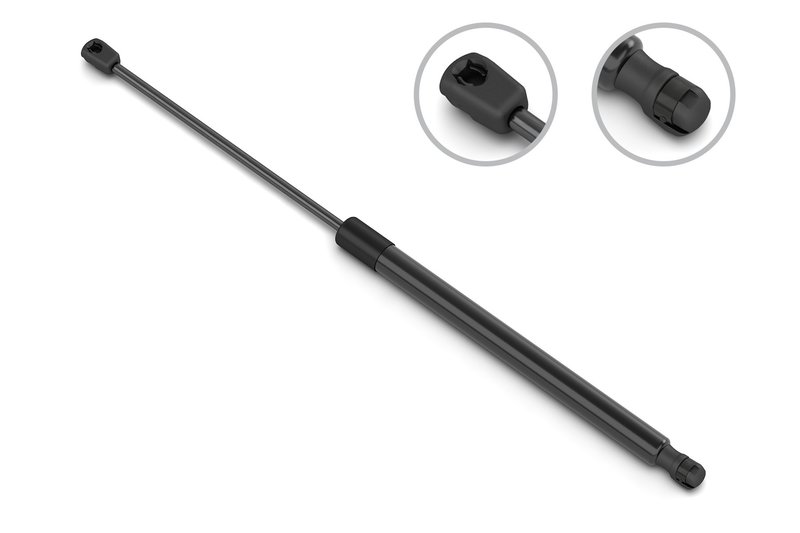

Stabilus 4B-155856 is a gas spring with a 420 N force rating, engineered for controlled lift and support. It uses plastic socket connections and measures 301 mm compressed and 495 mm extended for a precise replacement fit.
Compatible with Audi A4 allroad and Audi S4 applications, this Stabilus gas spring is built around the same dimensional and connection style used in the original setup. The 4B-155856 part number is also referenced by several interchange numbers for the same application.
Key Features
- 420 N force rating for controlled opening and support.
- Plastic socket rod and tube connections for direct-style attachment.
- 301 mm compressed length and 495 mm extended length.
- 8 mm rod diameter and 19 mm tube diameter.
- Stabilus 4B-155856 replacement gas spring for select Audi applications.
Detailed Description
This Stabilus gas spring is specified with a 420 N force output, 8 mm rod diameter, and 19 mm tube diameter. The plastic socket rod and tube connections, along with the listed compressed and extended lengths, make it a fitment-focused replacement for the supported Audi A4 allroad and Audi S4 applications. If you are replacing a worn lift support, the 4B-155856 part number helps confirm the correct match against the original component.
What It Is Used For
- Weak or failing lift support that no longer holds position.
- Slow, uneven, or uncontrolled opening movement.
- Loss of support force in the original gas spring.
- Replacement needs where socket-style ends are required.
Installation Notes and Tips
Verify the compressed length, extended length, force rating, and socket connection style before installation. Compare the original part number and mounting style to confirm the correct replacement. The 4B-155856 should be matched to the vehicle application and attachment dimensions listed above.
Quality Assurance
Stabilus is a recognized supplier of gas springs and lift supports, and this part is built to the dimensional and force specifications listed for the application.
| Year | Make | Model | Notes |
|---|---|---|---|
| 2025 | Audi | A4 allroad | — |
| 2024 | Audi | A4 allroad | — |
| 2023 | Audi | A4 allroad | — |
| 2022 | Audi | A4 allroad | — |
| 2021 | Audi | A4 allroad | — |
| 2020 | Audi | A4 allroad | — |
| 2019 | Audi | A4 allroad | — |
| 2018 | Audi | A4 allroad | — |
| 2017 | Audi | A4 allroad | — |
| 2017 | Audi | S4 | — |
| No rows match your filter. | |||
